Black Foster Custom Module

CUSTOM SYSTEMS

Black Foster Custom Module enables the redistribution of its combinable modules once the system is installed. Light-emitting and blind segments can be repositioned as the space changes thanks to the freedom allowed by its adapter. Furthermore, the Black Foster Custom Module system features a Fit 27 projector module for integrated accent lighting.

Black Foster Custom Module 3

Black Foster Custom Module 5

Black Foster Custom Module 10

Black Foster Custom Module Fit 27

Black Foster Custom Module 3

Luminous flux

570 lm / 630 lm / 690 lm / 750 lm
Lighting efficiency

90% / 92%
Power

6,3 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 3500K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 3
Light beam angle

19° / 38°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

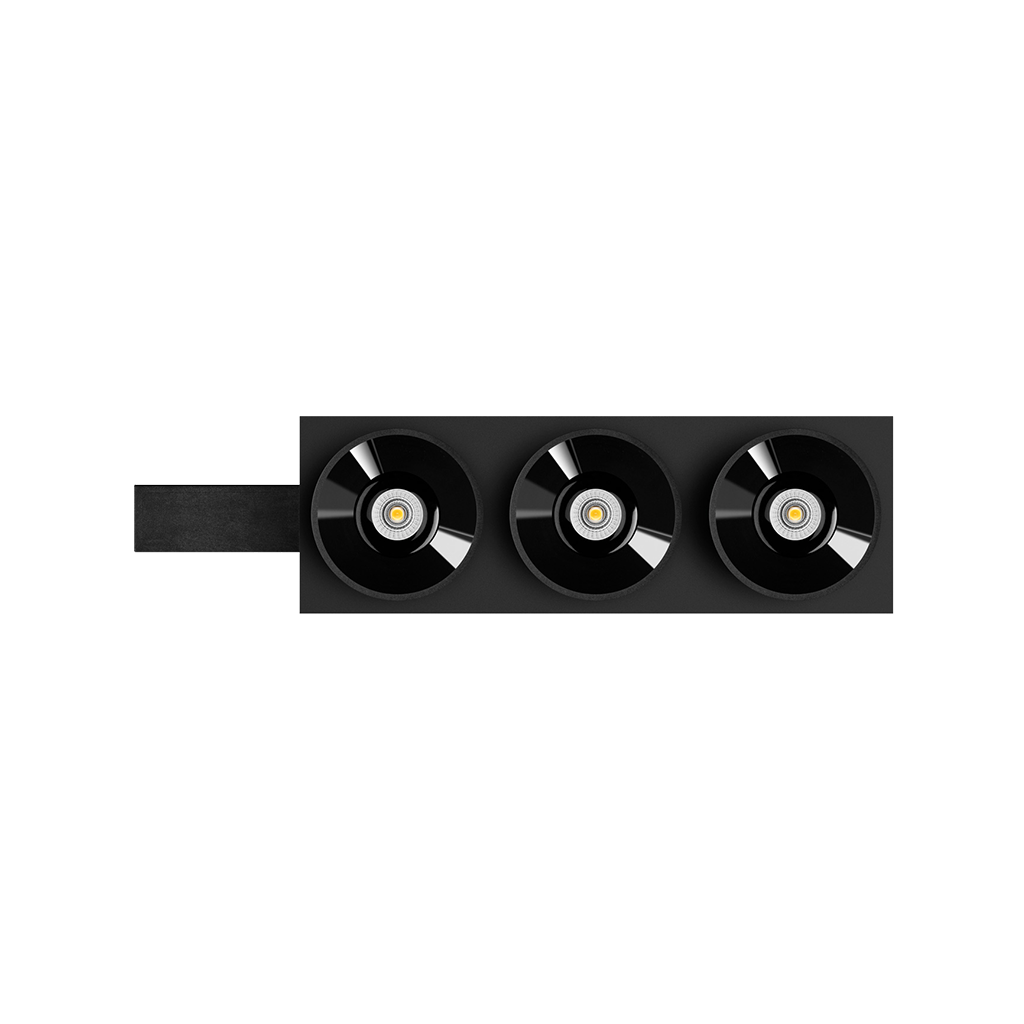

BLACK FOSTER CUSTOM MODULE 3 FLOOD 2700K N

Reference:

A4533010N

Color:

Black

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20

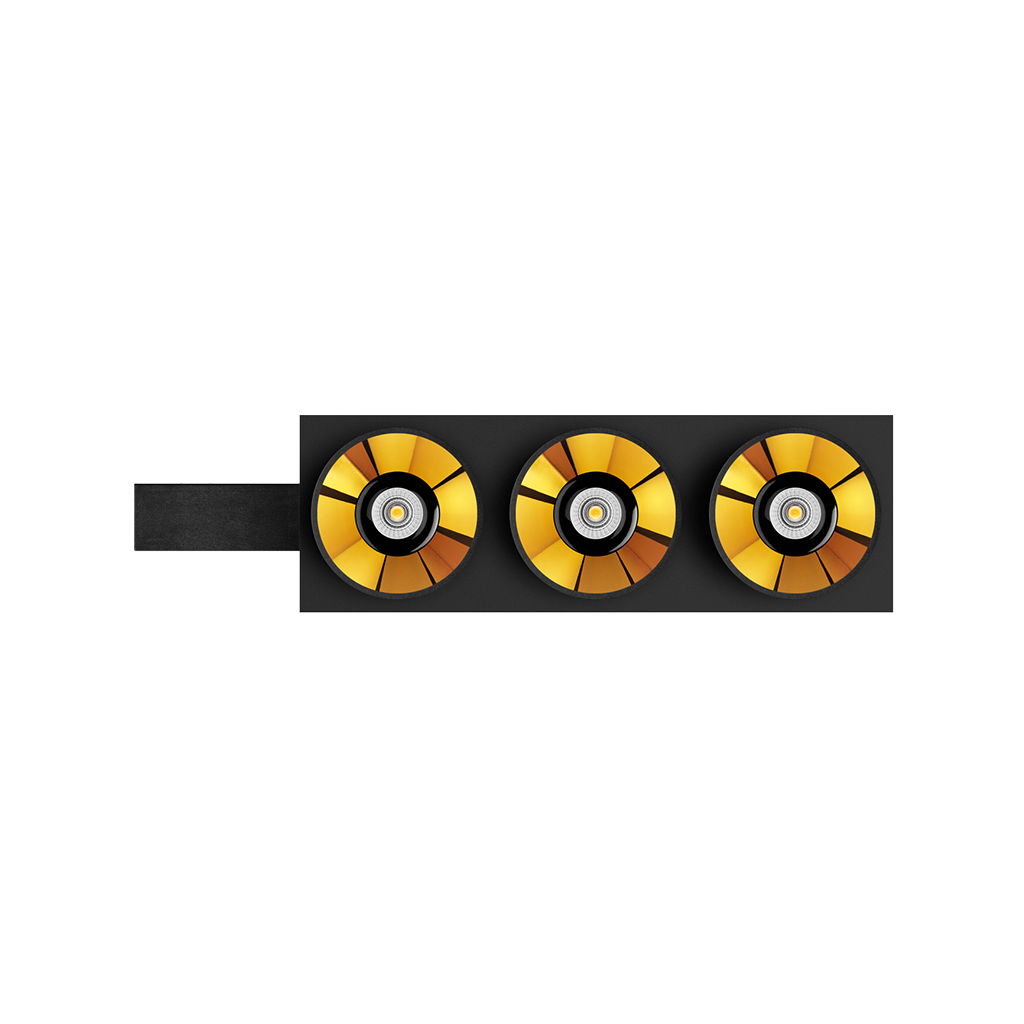

BLACK FOSTER CUSTOM MODULE 3 FLOOD 2700K NMG

Reference:

A4533010NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 3000K N

Reference:

A4533011N

Color:

Black

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 3000K NMG

Reference:

A4533011NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 4000K N

Reference:

A4533012N

Color:

Black

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 4000K NMG

Reference:

A4533012NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 3500K N

Reference:

A4533013N

Color:

Black

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD 3500K NMG

Reference:

A4533013NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 2700K N

Reference:

A4533020N

Color:

Black

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 2700K NMG

Reference:

A4533020NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 3000K N

Reference:

A4533021N

Color:

Black

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 3000K NMG

Reference:

A4533021NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 4000K N

Reference:

A4533022N

Color:

Black

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 4000K NMG

Reference:

A4533022NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 3500K N

Reference:

A4533023N

Color:

Black

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 FLOOD DIM DALI 3500K NMG

Reference:

A4533023NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 2700K N

Reference:

A4533110N

Color:

Black

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 2700K NMG

Reference:

A4533110NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 3000K N

Reference:

A4533111N

Color:

Black

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 3000K NMG

Reference:

A4533111NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 4000K N

Reference:

A4533112N

Color:

Black

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 4000K NMG

Reference:

A4533112NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 3500K N

Reference:

A4533113N

Color:

Black

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT 3500K NMG

Reference:

A4533113NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 2700K N

Reference:

A4533120N

Color:

Black

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 2700K NMG

Reference:

A4533120NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 3000K N

Reference:

A4533121N

Color:

Black

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 3000K NMG

Reference:

A4533121NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

570 lm

Power:

6,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 4000K N

Reference:

A4533122N

Color:

Black

Light source:

LED

Luminous flux:

630 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 4000K NMG

Reference:

A4533122NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

750 lm

Power:

6,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 3500K N

Reference:

A4533123N

Color:

Black

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE 3 SPOT DIM DALI 3500K NMG

Reference:

A4533123NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

690 lm

Power:

6,3 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

Sealing:

IP20

Accessories

CUSTOM & MOUNTING ACCESSORIES

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Black Foster Custom Module

CUSTOM SYSTEMS

Black Foster Custom Module 3

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Fancy Shape

Fifty+ Custom

Black Foster Micro Custom Surface

Bright Line

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
