Black Foster Custom Module

CUSTOM SYSTEMS

Black Foster Custom Module enables the redistribution of its combinable modules once the system is installed. Light-emitting and blind segments can be repositioned as the space changes thanks to the freedom allowed by its adapter. Furthermore, the Black Foster Custom Module system features a Fit 27 projector module for integrated accent lighting.

Black Foster Custom Module 3

Black Foster Custom Module 5

Black Foster Custom Module 10

Black Foster Custom Module Fit 27

Luminous flux

520 lm / 560 lm / 600 lm
Lighting efficiency

82% / 84%
Power

5,5 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

18° / 31° / 42°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

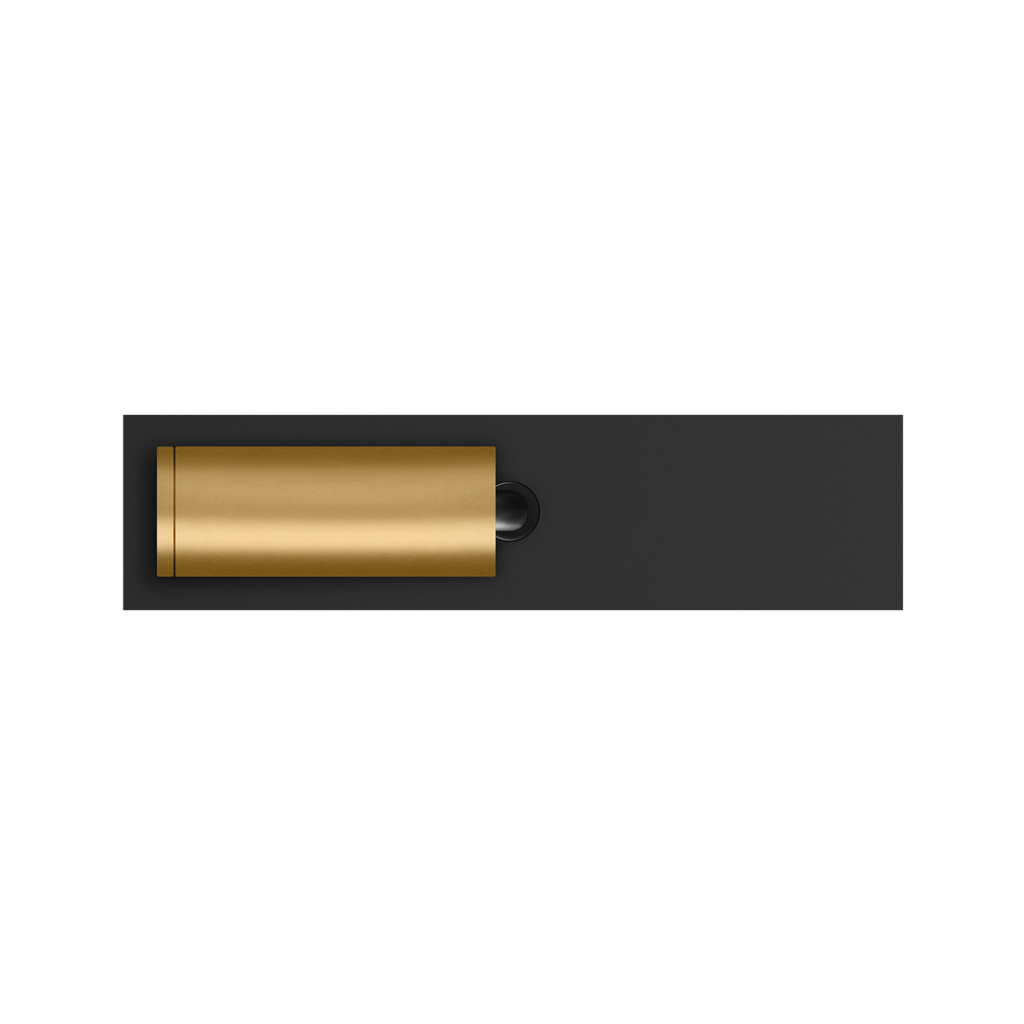

BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 2700K G

Reference:

A4540110G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 2700K NT

Reference:

A4540110NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20

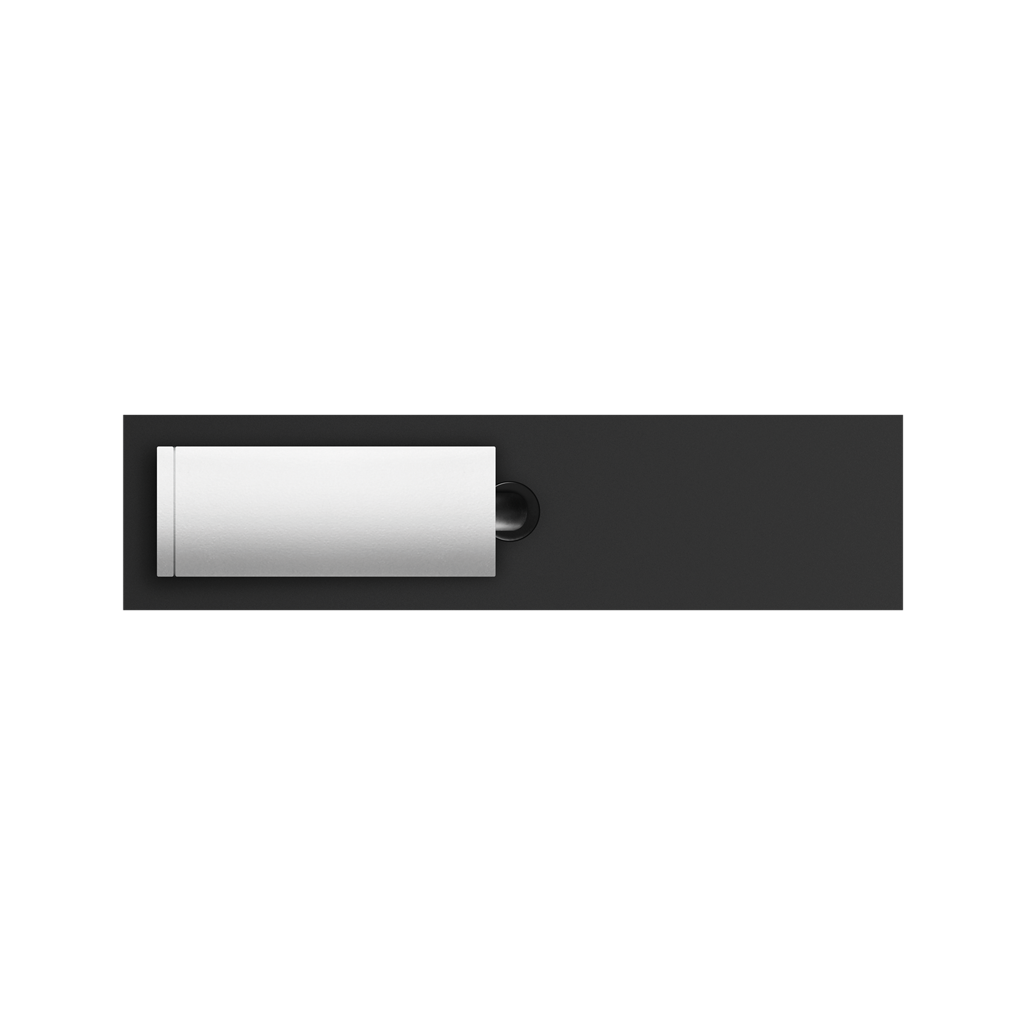

BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 2700K WT

Reference:

A4540110WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 3000K G

Reference:

A4540111G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 3000K NT

Reference:

A4540111NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 3000K WT

Reference:

A4540111WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 4000K G

Reference:

A4540112G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 4000K NT

Reference:

A4540112NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT 4000K WT

Reference:

A4540112WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 2700K G

Reference:

A4540120G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 2700K NT

Reference:

A4540120NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 2700K WT

Reference:

A4540120WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 3000K G

Reference:

A4540121G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 3000K NT

Reference:

A4540121NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 3000K WT

Reference:

A4540121WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 4000K G

Reference:

A4540122G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 4000K NT

Reference:

A4540122NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM 4000K WT

Reference:

A4540122WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 2700K G

Reference:

A4540130G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 2700K NT

Reference:

A4540130NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 2700K WT

Reference:

A4540130WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 3000K G

Reference:

A4540131G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 3000K NT

Reference:

A4540131NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 3000K WT

Reference:

A4540131WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 4000K G

Reference:

A4540132G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 4000K NT

Reference:

A4540132NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD 4000K WT

Reference:

A4540132WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 2700K G

Reference:

A4540210G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 2700K NT

Reference:

A4540210NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 2700K WT

Reference:

A4540210WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 3000K G

Reference:

A4540211G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 3000K NT

Reference:

A4540211NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 3000K WT

Reference:

A4540211WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 4000K G

Reference:

A4540212G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 4000K NT

Reference:

A4540212NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 SPOT DIM DALI 4000K WT

Reference:

A4540212WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 2700K G

Reference:

A4540220G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 2700K NT

Reference:

A4540220NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 2700K WT

Reference:

A4540220WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 3000K G

Reference:

A4540221G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 3000K NT

Reference:

A4540221NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 3000K WT

Reference:

A4540221WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 4000K G

Reference:

A4540222G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 4000K NT

Reference:

A4540222NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 MEDIUM DIM DALI 4000K WT

Reference:

A4540222WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

31°

Lighting efficiency:

82%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 2700K G

Reference:

A4540230G

Color:

Gold

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 2700K NT

Reference:

A4540230NT

Color:

Textured black

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 2700K WT

Reference:

A4540230WT

Color:

Textured white

Light source:

LED

Luminous flux:

520 lm

Power:

5,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 3000K G

Reference:

A4540231G

Color:

Gold

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 3000K NT

Reference:

A4540231NT

Color:

Textured black

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 3000K WT

Reference:

A4540231WT

Color:

Textured white

Light source:

LED

Luminous flux:

560 lm

Power:

5,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 4000K G

Reference:

A4540232G

Color:

Gold

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 4000K NT

Reference:

A4540232NT

Color:

Textured black

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20
BLACK FOSTER CUSTOM MODULE FIT 27 FLOOD DIM DALI 4000K WT

Reference:

A4540232WT

Color:

Textured white

Light source:

LED

Luminous flux:

600 lm

Power:

5,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP20

Accessories

CUSTOM & MOUNTING ACCESSORIES

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Black Foster Custom Module

CUSTOM SYSTEMS
