Drop

CEILING RECESSED

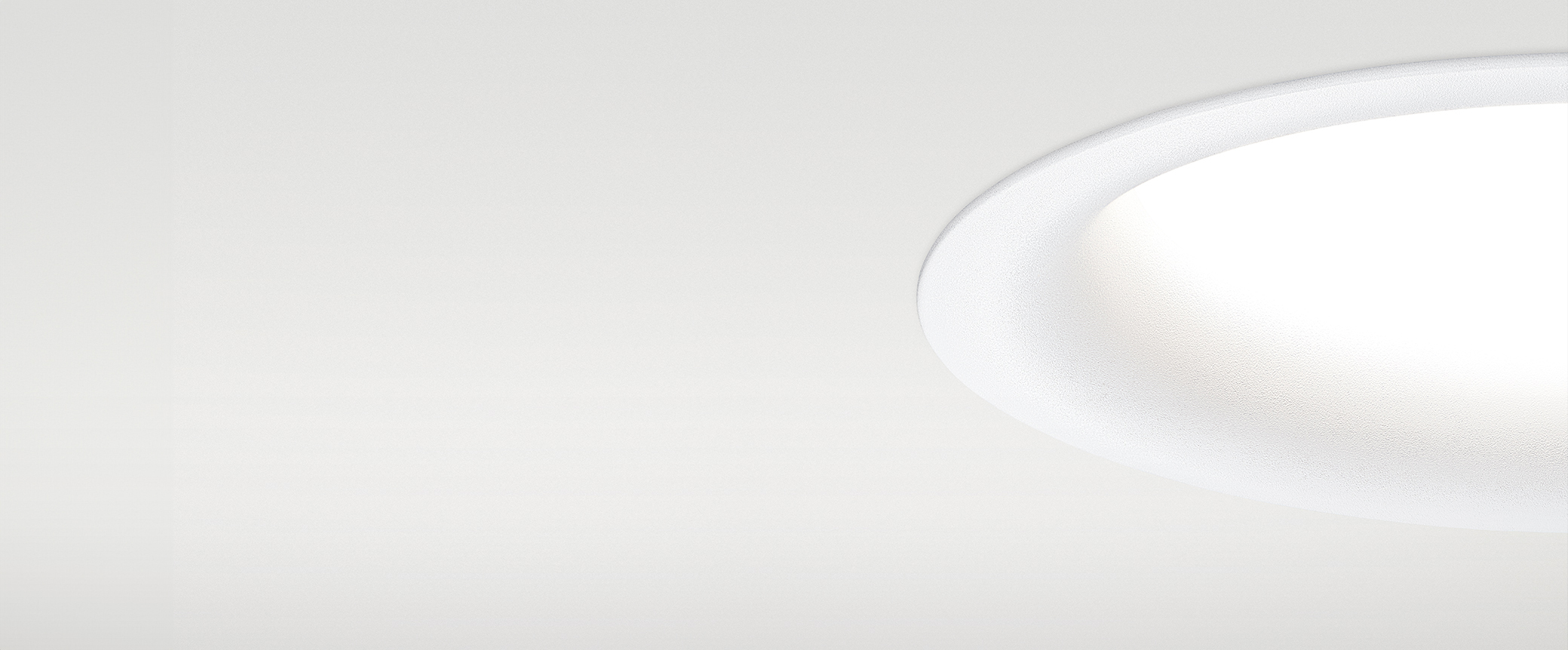

When lit, the lighting of Drop produces an effect of erasing visually the rims of the fitting, creating the illusion of illumination which resembles that of a natural skylight.

Awards

A´design Award Winner 2015 Iron

Drop Maxi

Drop

Drop Mini

Drop Micro Trans

Drop Micro Matt

Drop Maxi

Luminous flux

2450 lm / 2500 lm / 3450 lm / 3500 lm / 4700 lm / 4775 lm / 5825 lm / 5925 lm
Lighting efficiency

84%
Power

15 W / 22 W / 31 W / 40 W
Dimming

No Dim, DALI, Push
Color temperature

3000K / 4000K
Sealing

IP43 / IP54
Chromatic stability

MacAdam Step 2
Recess measurements

Ø375mm
Light beam angle

97°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
DROP MAXI 2 3000K WT

Reference:

A2350211WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 2 4000K WT

Reference:

A2350212WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 2 DIM PUSH 3000K WT

Reference:

A2350221WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 2 DIM PUSH 4000K WT

Reference:

A2350222WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 2 DIM DALI 3000K WT

Reference:

A2350241WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 2 DIM DALI 4000K WT

Reference:

A2350242WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 3 3000K WT

Reference:

A2350311WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 3 4000K WT

Reference:

A2350312WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 3 DIM PUSH 3000K WT

Reference:

A2350321WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 3 DIM PUSH 4000K WT

Reference:

A2350322WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 3 DIM DALI 3000K WT

Reference:

A2350341WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 3 DIM DALI 4000K WT

Reference:

A2350342WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 4 3000K WT

Reference:

A2350411WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 4 4000K WT

Reference:

A2350412WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 4 DIM PUSH 3000K WT

Reference:

A2350421WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 4 DIM PUSH 4000K WT

Reference:

A2350422WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 4 DIM DALI 3000K WT

Reference:

A2350441WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 4 DIM DALI 4000K WT

Reference:

A2350442WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 5 3000K WT

Reference:

A2350511WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 5 4000K WT

Reference:

A2350512WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP43
DROP MAXI 5 DIM PUSH 3000K WT

Reference:

A2350521WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 5 DIM PUSH 4000K WT

Reference:

A2350522WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP43
DROP MAXI 5 DIM DALI 3000K WT

Reference:

A2350541WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 5 DIM DALI 4000K WT

Reference:

A2350542WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP43
DROP MAXI 2 IP54 3000K WT

Reference:

A2351211WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 2 IP54 4000K WT

Reference:

A2351212WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 2 IP54 DIM PUSH 3000K WT

Reference:

A2351221WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 2 IP54 DIM PUSH 4000K WT

Reference:

A2351222WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 2 IP54 DIM DALI 3000K WT

Reference:

A2351241WT

Color:

Textured white

Light source:

LED

Luminous flux:

2450 lm

Power:

15 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 2 IP54 DIM DALI 4000K WT

Reference:

A2351242WT

Color:

Textured white

Light source:

LED

Luminous flux:

2500 lm

Power:

15 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 3 IP54 3000K WT

Reference:

A2351311WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 3 IP54 4000K WT

Reference:

A2351312WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 3 IP54 DIM PUSH 3000K WT

Reference:

A2351321WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 3 IP54 DIM PUSH 4000K WT

Reference:

A2351322WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 3 IP54 DIM DALI 3000K WT

Reference:

A2351341WT

Color:

Textured white

Light source:

LED

Luminous flux:

3450 lm

Power:

22 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 3 IP54 DIM DALI 4000K WT

Reference:

A2351342WT

Color:

Textured white

Light source:

LED

Luminous flux:

3500 lm

Power:

22 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 4 IP54 3000K WT

Reference:

A2351411WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 4 IP54 4000K WT

Reference:

A2351412WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 4 IP54 DIM PUSH 3000K WT

Reference:

A2351421WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 4 IP54 DIM PUSH 4000K WT

Reference:

A2351422WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 4 IP54 DIM DALI 3000K WT

Reference:

A2351441WT

Color:

Textured white

Light source:

LED

Luminous flux:

4700 lm

Power:

31 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 4 IP54 DIM DALI 4000K WT

Reference:

A2351442WT

Color:

Textured white

Light source:

LED

Luminous flux:

4775 lm

Power:

31 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 5 IP54 3000K WT

Reference:

A2351511WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 5 IP54 4000K WT

Reference:

A2351512WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

No Dim

Sealing:

IP54
DROP MAXI 5 IP54 DIM PUSH 3000K WT

Reference:

A2351521WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 5 IP54 DIM PUSH 4000K WT

Reference:

A2351522WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

Push

Sealing:

IP54
DROP MAXI 5 IP54 DIM DALI 3000K WT

Reference:

A2351541WT

Color:

Textured white

Light source:

LED

Luminous flux:

5825 lm

Power:

40 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54
DROP MAXI 5 IP54 DIM DALI 4000K WT

Reference:

A2351542WT

Color:

Textured white

Light source:

LED

Luminous flux:

5925 lm

Power:

40 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

97°

Lighting efficiency:

84%

Dimming:

DALI

Sealing:

IP54

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Drop

CEILING RECESSED

Awards

A´design Award Winner 2015 Iron

Drop Maxi

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Related projects

Peydro Herrero

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
