Drop

CEILING RECESSED

When lit, the lighting of Drop produces an effect of erasing visually the rims of the fitting, creating the illusion of illumination which resembles that of a natural skylight.

Awards

A´design Award Winner 2015 Iron

Drop Micro Matt

Drop Micro Trans

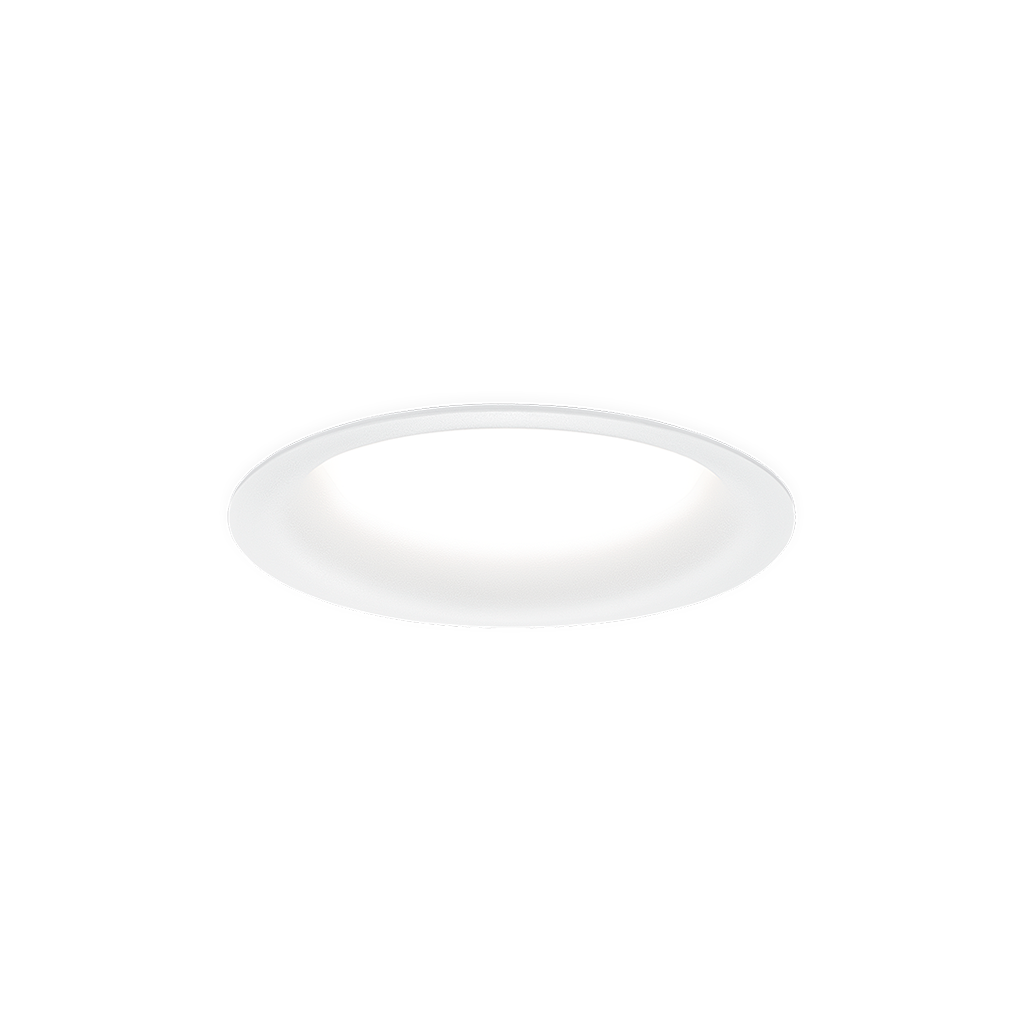

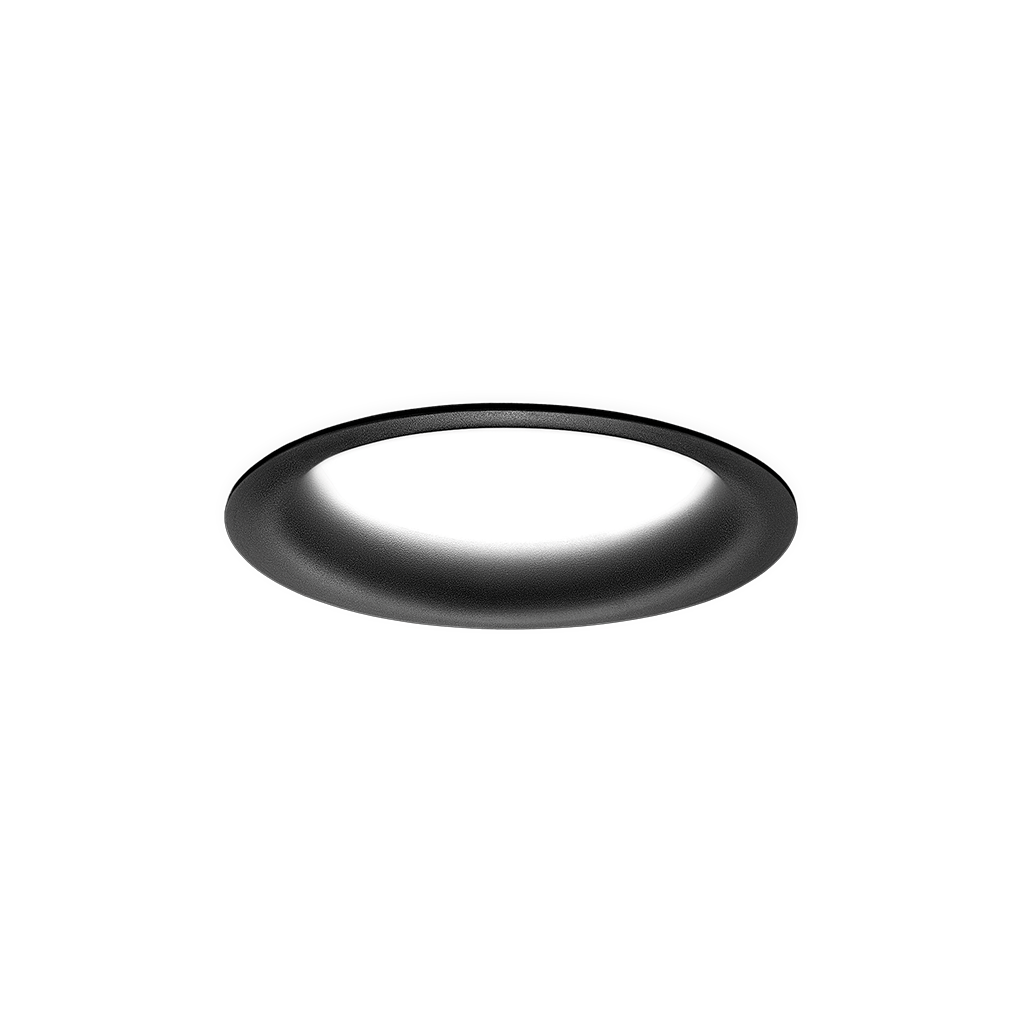

Drop Mini

Drop

Drop Maxi

Drop Mini

Luminous flux

975 lm / 1050 lm / 1075 lm / 1275 lm / 1375 lm / 1400 lm
Lighting efficiency

78%
Power

7 W / 10 W
Dimming

No Dim, DALI, Push
Color temperature

2700K / 3000K / 4000K
Sealing

IP43 / IP54
Chromatic stability

MacAdam Step 2
Recess measurements

Ø140mm
Light beam angle

94°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
DROP MINI 2 2700K WT

Reference:

A1940210WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 2 3000K WT

Reference:

A1940211WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 2 4000K WT

Reference:

A1940212WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 2 DIM PUSH 2700K WT

Reference:

A1940220WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 2 DIM PUSH 3000K WT

Reference:

A1940221WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 2 DIM PUSH 4000K WT

Reference:

A1940222WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 2 DIM DALI 2700K WT

Reference:

A1940240WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 2 DIM DALI 3000K WT

Reference:

A1940241WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 2 DIM DALI 4000K WT

Reference:

A1940242WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 3 2700K WT

Reference:

A1940310WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 3 3000K WT

Reference:

A1940311WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 3 4000K WT

Reference:

A1940312WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP43
DROP MINI 3 DIM PUSH 2700K WT

Reference:

A1940320WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 3 DIM PUSH 3000K WT

Reference:

A1940321WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 3 DIM PUSH 4000K WT

Reference:

A1940322WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP43
DROP MINI 3 DIM DALI 2700K WT

Reference:

A1940340WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 3 DIM DALI 3000K WT

Reference:

A1940341WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 3 DIM DALI 4000K WT

Reference:

A1940342WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP43
DROP MINI 2 IP54 2700K WT

Reference:

A1941210WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 2 IP54 3000K WT

Reference:

A1941211WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 2 IP54 4000K WT

Reference:

A1941212WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 2 IP54 DIM PUSH 2700K WT

Reference:

A1941220WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 2 IP54 DIM PUSH 3000K WT

Reference:

A1941221WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 2 IP54 DIM PUSH 4000K WT

Reference:

A1941222WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 2 IP54 DIM DALI 2700K WT

Reference:

A1941240WT

Color:

Textured white

Light source:

LED

Luminous flux:

975 lm

Power:

7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54
DROP MINI 2 IP54 DIM DALI 3000K WT

Reference:

A1941241WT

Color:

Textured white

Light source:

LED

Luminous flux:

1050 lm

Power:

7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54
DROP MINI 2 IP54 DIM DALI 4000K WT

Reference:

A1941242WT

Color:

Textured white

Light source:

LED

Luminous flux:

1075 lm

Power:

7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54
DROP MINI 3 IP54 2700K WT

Reference:

A1941310WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 3 IP54 3000K WT

Reference:

A1941311WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 3 IP54 4000K WT

Reference:

A1941312WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP54
DROP MINI 3 IP54 DIM PUSH 2700K WT

Reference:

A1941320WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 3 IP54 DIM PUSH 3000K WT

Reference:

A1941321WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 3 IP54 DIM PUSH 4000K WT

Reference:

A1941322WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

Push

Sealing:

IP54
DROP MINI 3 IP54 DIM DALI 2700K WT

Reference:

A1941340WT

Color:

Textured white

Light source:

LED

Luminous flux:

1275 lm

Power:

10 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54
DROP MINI 3 IP54 DIM DALI 3000K WT

Reference:

A1941341WT

Color:

Textured white

Light source:

LED

Luminous flux:

1375 lm

Power:

10 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54
DROP MINI 3 IP54 DIM DALI 4000K WT

Reference:

A1941342WT

Color:

Textured white

Light source:

LED

Luminous flux:

1400 lm

Power:

10 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

94°

Lighting efficiency:

78%

Dimming:

DALI

Sealing:

IP54

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

Drop

CEILING RECESSED

Awards

A´design Award Winner 2015 Iron

Drop Mini

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Related projects

Peydro Herrero

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
