Duomo

CEILING RECESSED

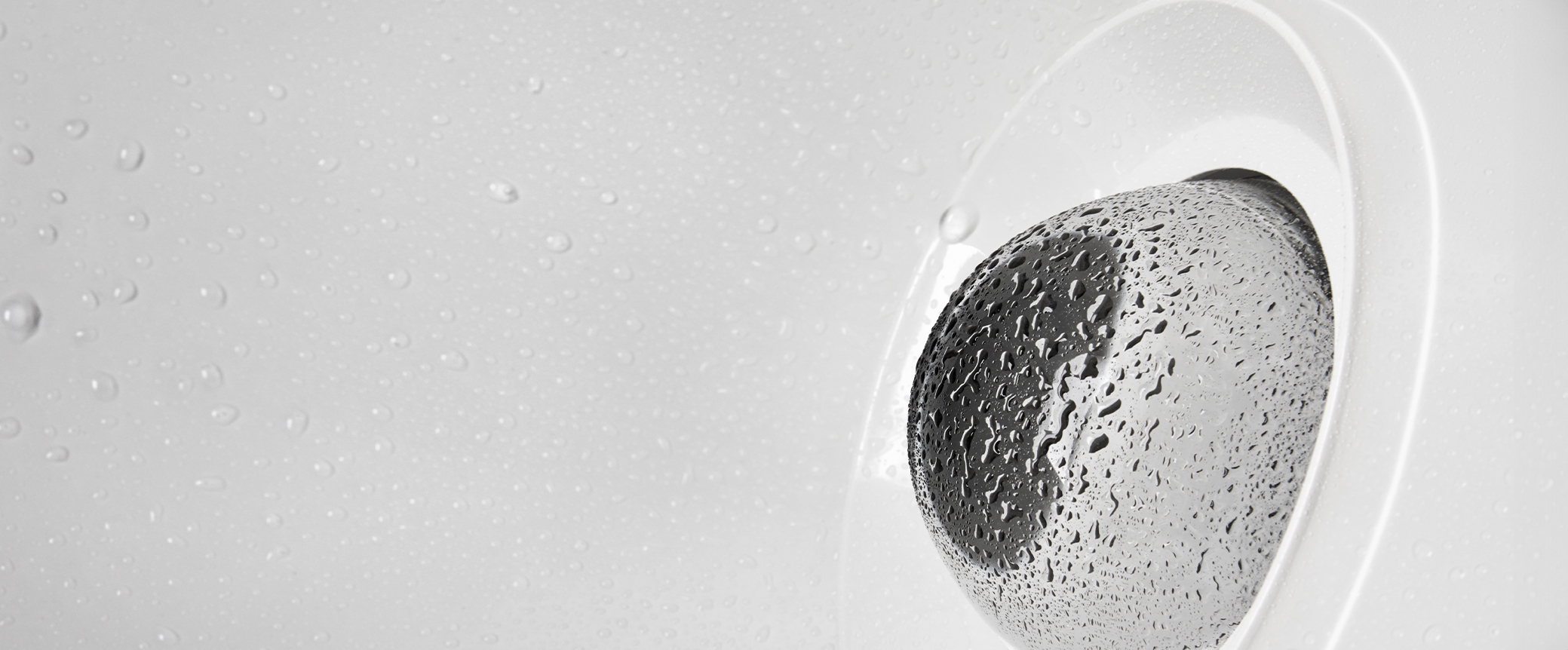

Combine an elevated luminous flux with an excellent visual comfort: this is the virtue of Duomo. Its recessed LED and its optical glass lense reduce the luminaires UGR value and its ant-glare lampshade disminishes reflections. Duomo is convenient for applications with big ceiling heights and projects with high light level requirements. Conceived to cover demands of general lighting, its conical light distribution offers a very uniform lighting.

Duomo IP65 / IP20
Duomo IP65 / IP20
Duomo IP65 / IP65
Duomo IP65 / IP65

Duomo IP65 / IP20

  • Luminous flux

    2450 lm / 2500 lm / 5100 lm / 5200 lm

  • Lighting efficiency

    80%

  • Power

    16,5 W / 41 W

  • Dimming

    No Dim, DALI, Push

  • Color temperature

    3000K / 4000K

  • Sealing

    IP65/20

  • Chromatic stability

    MacAdam Step 2

  • Recess measurements

    Ø177mm

  • Light beam angle

    42°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

                    • DUOMO IP65 1 3000K W
                      Reference:

                      A2850111W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      2450 lm

                      Power:

                      16,5 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65/20

                    • DUOMO IP65 1 4000K W
                      Reference:

                      A2850112W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      2500 lm

                      Power:

                      16,5 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 3000K W
                      Reference:

                      A2850211W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5100 lm

                      Power:

                      41 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 4000K W
                      Reference:

                      A2850212W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5200 lm

                      Power:

                      41 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 DIM PUSH 3000K W
                      Reference:

                      A2850221W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5100 lm

                      Power:

                      41 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 DIM PUSH 4000K W
                      Reference:

                      A2850222W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5200 lm

                      Power:

                      41 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      Push

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 DIM DALI 3000K W
                      Reference:

                      A2850241W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5100 lm

                      Power:

                      41 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP65/20

                    • DUOMO IP65 2 DIM DALI 4000K W
                      Reference:

                      A2850242W

                      Color:

                      White

                      Light source:

                      LED

                      Luminous flux:

                      5200 lm

                      Power:

                      41 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      42°

                      Lighting efficiency:

                      80%

                      Dimming:

                      DALI

                      Sealing:

                      IP65/20

                    Accessories

                    HIGH CHROMATIC LED
