iO 48V

TRACK LIGHTS

“Io 48V” is a LED spotlight miniaturised in a fixture that is so small that it fits on the palm of your hand. Designed for accent lighting applications, its small dimensions mean it can be fitted in display cabinets, shop windows and small places without generating an invasive presence on the scene. Created to be placed on a track, it offers all the features of concentrated LED spotlights with a minimalist and hyper-reduced design.

Awards

Silver Delta Adi Awards 2016
If Product Design Award 2017 Winner
Adcv Gold 2017
Good Design Award 2017

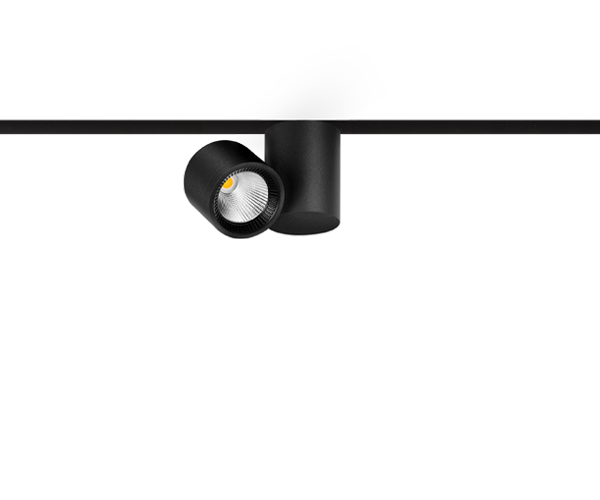

iO 48V

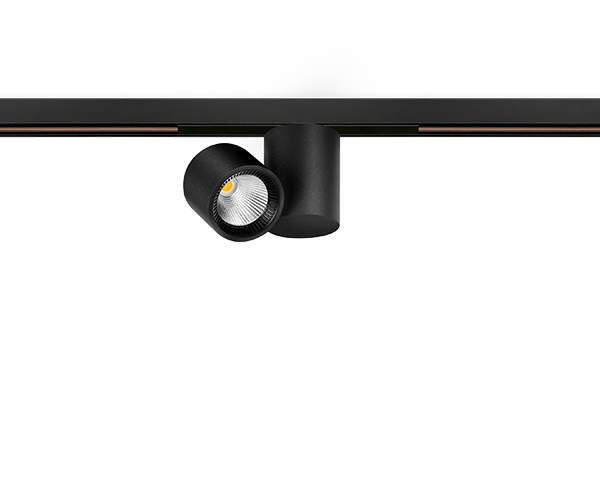

iO 48V Short

iO 48V

Luminous flux

485 lm / 505 lm
Lighting efficiency

86% / 89% / 92%
Power

4,5 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

20° / 30° / 56°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
IO 48V 20º 2700K NT

Reference:

A3480110NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 2700K NTW

Reference:

A3480110NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 2700K WT

Reference:

A3480110WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 2700K WTW

Reference:

A3480110WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 3000K NT

Reference:

A3480111NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 3000K NTW

Reference:

A3480111NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 3000K WT

Reference:

A3480111WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 20º 3000K WTW

Reference:

A3480111WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 2700K NT

Reference:

A3480120NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 2700K NTW

Reference:

A3480120NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 2700K WT

Reference:

A3480120WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 2700K WTW

Reference:

A3480120WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 3000K NT

Reference:

A3480121NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 3000K NTW

Reference:

A3480121NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 3000K WT

Reference:

A3480121WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 30º 3000K WTW

Reference:

A3480121WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 2700K NT

Reference:

A3480130NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 2700K NTW

Reference:

A3480130NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 2700K WT

Reference:

A3480130WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 2700K WTW

Reference:

A3480130WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 3000K NT

Reference:

A3480131NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 3000K NTW

Reference:

A3480131NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 3000K WT

Reference:

A3480131WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V 56º 3000K WTW

Reference:

A3480131WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
IO 48V DIM DALI 20º 2700K NT

Reference:

A3480210NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 2700K NTW

Reference:

A3480210NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 2700K WT

Reference:

A3480210WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 2700K WTW

Reference:

A3480210WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 3000K NT

Reference:

A3480211NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 3000K NTW

Reference:

A3480211NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 3000K WT

Reference:

A3480211WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 20º 3000K WTW

Reference:

A3480211WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 2700K NT

Reference:

A3480220NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 2700K NTW

Reference:

A3480220NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 2700K WT

Reference:

A3480220WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 2700K WTW

Reference:

A3480220WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 3000K NT

Reference:

A3480221NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 3000K NTW

Reference:

A3480221NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 3000K WT

Reference:

A3480221WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 30º 3000K WTW

Reference:

A3480221WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 2700K NT

Reference:

A3480230NT

Color:

Textured black

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 2700K NTW

Reference:

A3480230NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 2700K WT

Reference:

A3480230WT

Color:

Textured white

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 2700K WTW

Reference:

A3480230WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

485 lm

Power:

4,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 3000K NT

Reference:

A3480231NT

Color:

Textured black

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 3000K NTW

Reference:

A3480231NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 3000K WT

Reference:

A3480231WT

Color:

Textured white

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
IO 48V DIM DALI 56º 3000K WTW

Reference:

A3480231WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

505 lm

Power:

4,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

BEAM MIXER DIFFUSER

ANTI-GLARE HONEYCOMB LOUVER

TRACK 48V OPTIONS

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

iO 48V

TRACK LIGHTS

Awards

Silver Delta Adi Awards 2016

If Product Design Award 2017 Winner

Adcv Gold 2017

Good Design Award 2017

iO 48V

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

iO

Zen Tube

Thor

Fit 65 1L

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
