Line 48V

TRACK LIGHTS

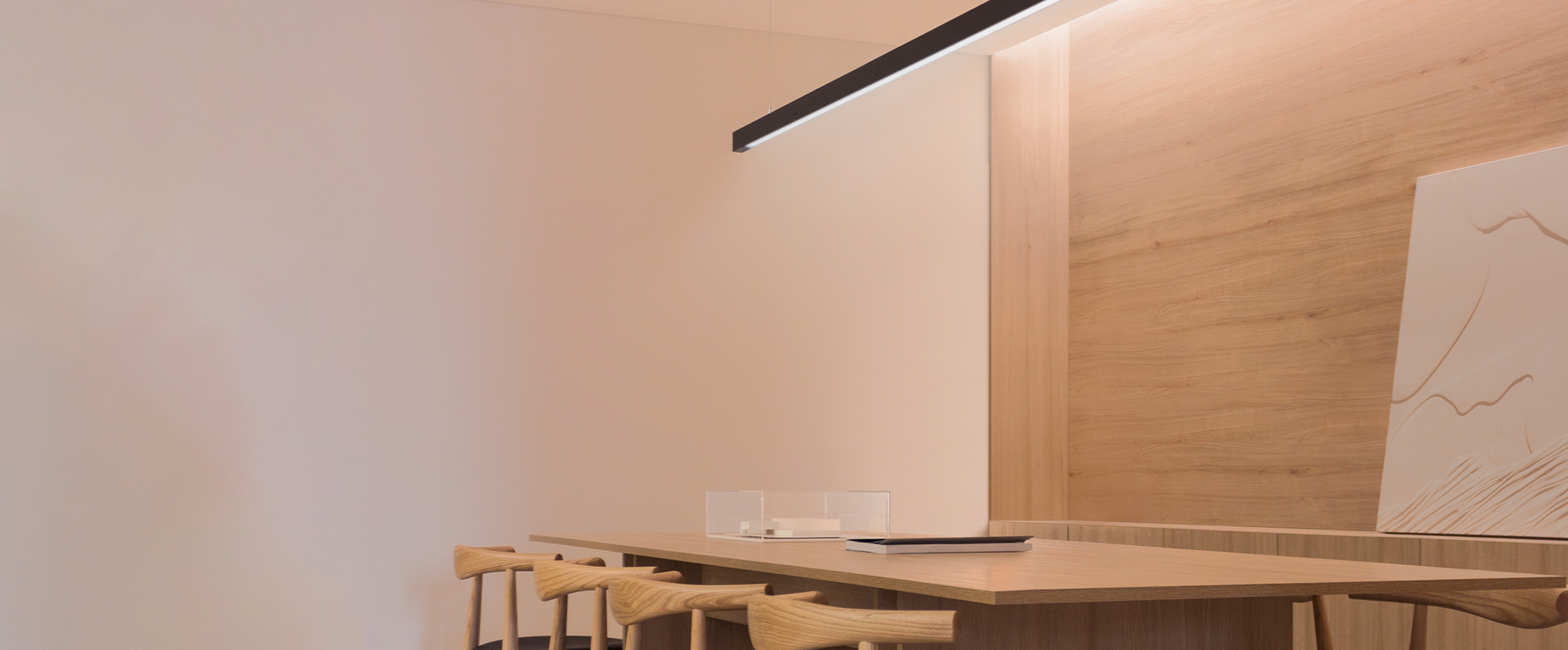

Line 48V, is the line-luminary of diffused light for 48 voltage tracklight applications. This lighting solution allows Arkoslight’s 48V tracklight to combine accent lighting with longitudinal general lighting where required.

Line 48V 500

Line 48V 1000

Line 48V 2000

Line 48V 500

Luminous flux

1500 lm / 1600 lm / 1650 lm
Lighting efficiency

43% / 65%
Power

10,5 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

98°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

CRI>90

Light beam angle

98°

Dimming

No Dim
DALI

Sealing

IP20

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
LINE 500 48V 2700K N

Reference:

A3761010N

Color:

Matt black

Light source:

LED

Luminous flux:

1500 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V 2700K WT

Reference:

A3761010WT

Color:

Textured white

Light source:

LED

Luminous flux:

1500 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V 3000K N

Reference:

A3761011N

Color:

Matt black

Light source:

LED

Luminous flux:

1600 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V 3000K WT

Reference:

A3761011WT

Color:

Textured white

Light source:

LED

Luminous flux:

1600 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V 4000K N

Reference:

A3761012N

Color:

Matt black

Light source:

LED

Luminous flux:

1650 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V 4000K WT

Reference:

A3761012WT

Color:

Textured white

Light source:

LED

Luminous flux:

1650 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

No Dim

Sealing:

IP20
LINE 500 48V DIM DALI 2700K N

Reference:

A3761020N

Color:

Matt black

Light source:

LED

Luminous flux:

1500 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

DALI

Sealing:

IP20
LINE 500 48V DIM DALI 2700K WT

Reference:

A3761020WT

Color:

Textured white

Light source:

LED

Luminous flux:

1500 lm

Power:

10,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

DALI

Sealing:

IP20
LINE 500 48V DIM DALI 3000K N

Reference:

A3761021N

Color:

Matt black

Light source:

LED

Luminous flux:

1600 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

DALI

Sealing:

IP20
LINE 500 48V DIM DALI 3000K WT

Reference:

A3761021WT

Color:

Textured white

Light source:

LED

Luminous flux:

1600 lm

Power:

10,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

DALI

Sealing:

IP20
LINE 500 48V DIM DALI 4000K N

Reference:

A3761022N

Color:

Matt black

Light source:

LED

Luminous flux:

1650 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

43%

Dimming:

DALI

Sealing:

IP20
LINE 500 48V DIM DALI 4000K WT

Reference:

A3761022WT

Color:

Textured white

Light source:

LED

Luminous flux:

1650 lm

Power:

10,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

98°

Lighting efficiency:

65%

Dimming:

DALI

Sealing:

IP20

Accessories

TRACK 48V OPTIONS
