Madison

CEILING RECESSED

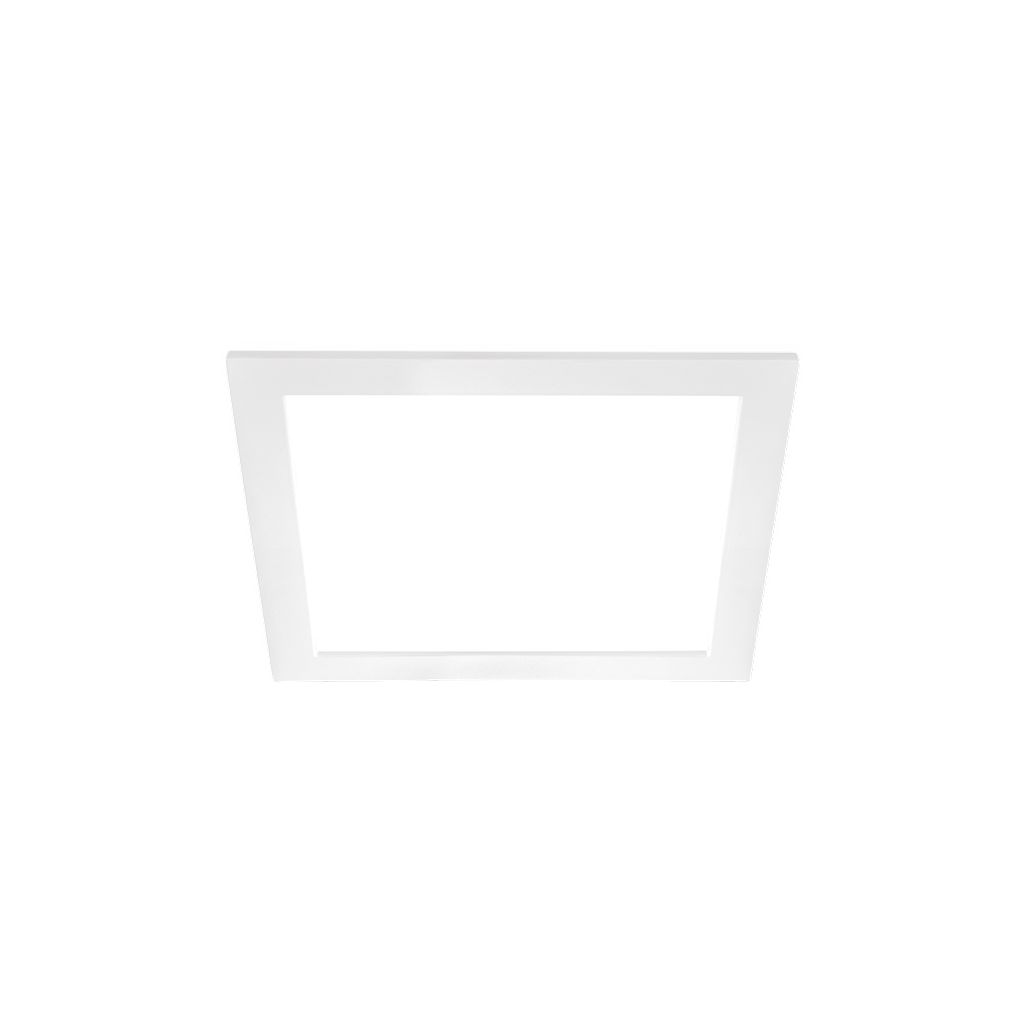

A squared recessed downlight in which the narrowness and the reduced width of its frame are the differentiating hallmarks of this elegant luminaire.

Madison

  • Luminous flux

    1650 lm / 1675 lm / 2275 lm / 2300 lm / 3025 lm / 3075 lm

  • Lighting efficiency

    82%

  • Power

    10,5 W / 15,5 W / 22 W

  • Dimming

    No Dim, DALI, Push

  • Color temperature

    3000K / 4000K

  • Sealing

    IP43

  • Chromatic stability

    MacAdam Step 2

  • Recess measurements

    205 x 205mm

  • Light beam angle

    100°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Dimming

    • Model

      Ref.

      Color

      Source

      Lum. flux

      Power

      Temp.

      CRI

      Beam angle

      Efficiency

      Dimming

      Sealing

    • MADISON 1 3000K W
      Reference:

      A1900111W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1650 lm

      Power:

      10,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 1 4000K W
      Reference:

      A1900112W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1675 lm

      Power:

      10,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 1 DIM PUSH 3000K W
      Reference:

      A1900121W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1650 lm

      Power:

      10,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 1 DIM PUSH 4000K W
      Reference:

      A1900122W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1675 lm

      Power:

      10,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 1 DIM DALI 3000K W
      Reference:

      A1900141W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1650 lm

      Power:

      10,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43

    • MADISON 1 DIM DALI 4000K W
      Reference:

      A1900142W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      1675 lm

      Power:

      10,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43

    • MADISON 2 3000K W
      Reference:

      A1900211W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2275 lm

      Power:

      15,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 2 4000K W
      Reference:

      A1900212W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2300 lm

      Power:

      15,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 2 DIM PUSH 3000K W
      Reference:

      A1900221W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2275 lm

      Power:

      15,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 2 DIM PUSH 4000K W
      Reference:

      A1900222W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2300 lm

      Power:

      15,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 2 DIM DALI 3000K W
      Reference:

      A1900241W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2275 lm

      Power:

      15,5 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43

    • MADISON 2 DIM DALI 4000K W
      Reference:

      A1900242W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      2300 lm

      Power:

      15,5 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43

    • MADISON 3 3000K W
      Reference:

      A1900311W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3025 lm

      Power:

      22 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 3 4000K W
      Reference:

      A1900312W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3075 lm

      Power:

      22 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      No Dim

      Sealing:

      IP43

    • MADISON 3 DIM PUSH 3000K W
      Reference:

      A1900321W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3025 lm

      Power:

      22 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 3 DIM PUSH 4000K W
      Reference:

      A1900322W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3075 lm

      Power:

      22 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      Push

      Sealing:

      IP43

    • MADISON 3 DIM DALI 3000K W
      Reference:

      A1900341W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3025 lm

      Power:

      22 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43

    • MADISON 3 DIM DALI 4000K W
      Reference:

      A1900342W

      Color:

      Matt white

      Light source:

      LED

      Luminous flux:

      3075 lm

      Power:

      22 W

      Colour temperature:

      4000K

      CRI:

      CRI>90

      Light beam angle:

      100°

      Lighting efficiency:

      82%

      Dimming:

      DALI

      Sealing:

      IP43
