Puck

SURFACE

Puck is designed to undertake general lighting functions and, moreover, given its ultra-compact format, aims to conserve discretion in those places where it is impossible to recess the appliances in the ceiling. Puck’s minimalist presence is formally summed up in a circular piece, entirely manufactured in aluminium.

Awards

  • Iconic Award Interior Innovation 2017 Winner

    Iconic Award Interior Innovation 2017 Winner

Puck M
Puck M
Puck L
Puck L

Puck L

  • Luminous flux

    1175 lm / 1280 lm / 1330 lm

  • Lighting efficiency

    80%

  • Power

    15 W

  • Dimming

    No Dim

  • Color temperature

    2700K / 3000K / 4000K

  • Sealing

    IP20

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    37°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

                    • PUCK L 2700K MC
                      Reference:

                      A2512000MC

                      Color:

                      Metallized copper

                      Light source:

                      LED

                      Luminous flux:

                      1175 lm

                      Power:

                      15 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 2700K MG
                      Reference:

                      A2512000MG

                      Color:

                      Metallized gold

                      Light source:

                      LED

                      Luminous flux:

                      1175 lm

                      Power:

                      15 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

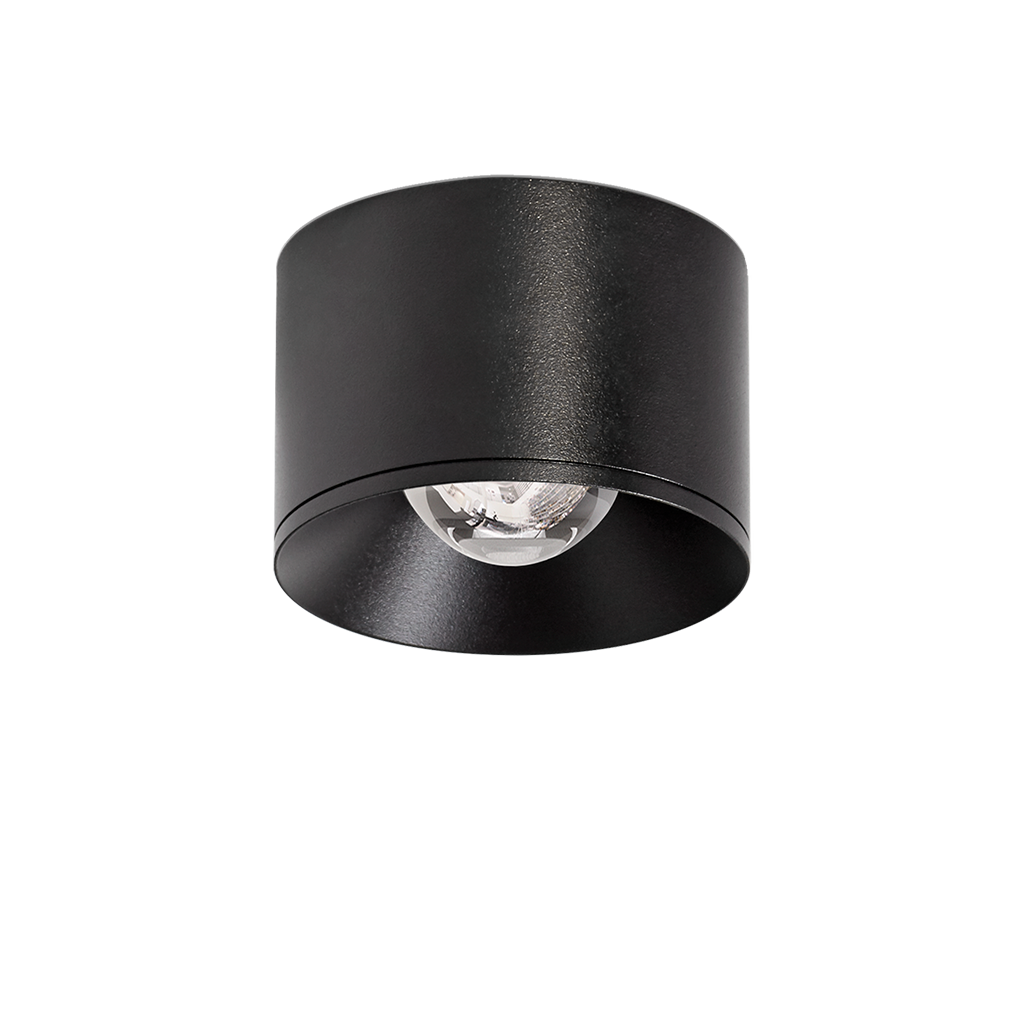

                    • PUCK L 2700K NT
                      Reference:

                      A2512000NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      1175 lm

                      Power:

                      15 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

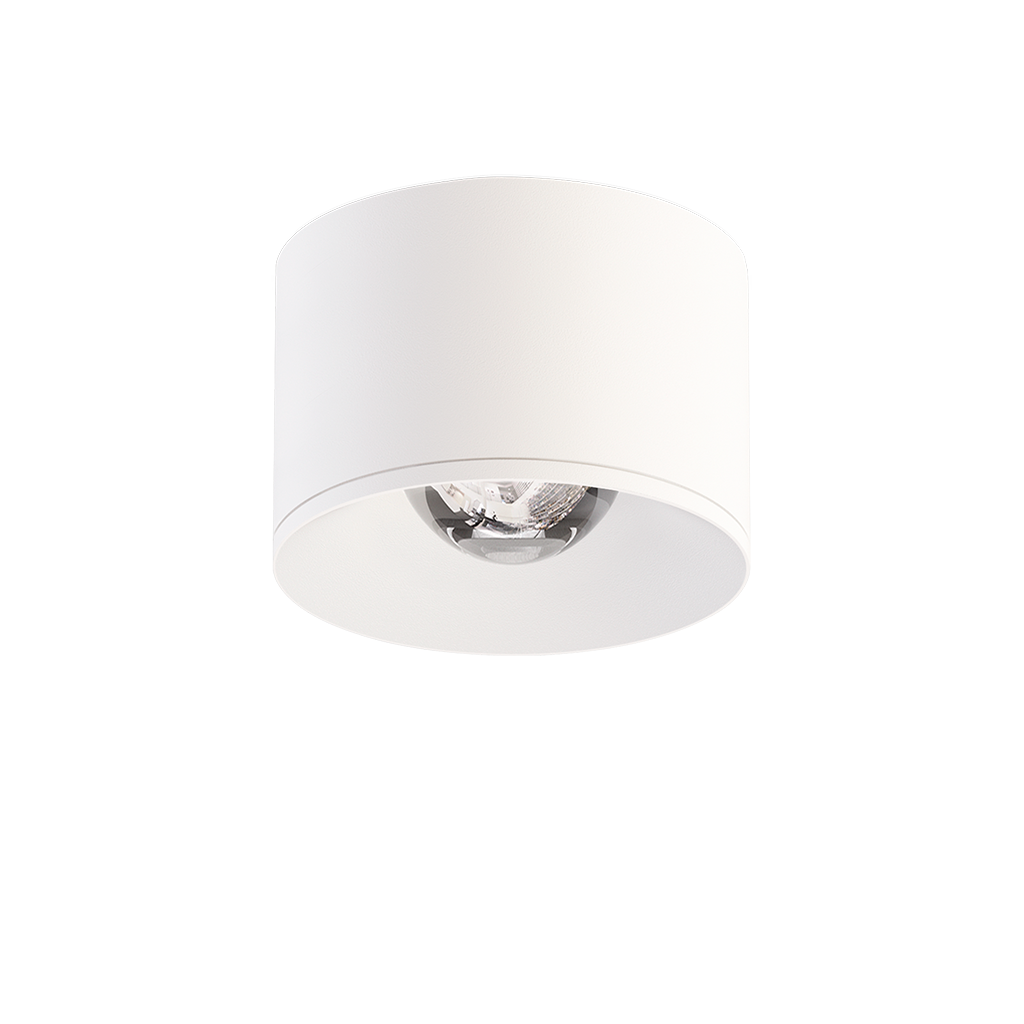

                    • PUCK L 2700K WT
                      Reference:

                      A2512000WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1175 lm

                      Power:

                      15 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 3000K MC
                      Reference:

                      A2512001MC

                      Color:

                      Metallized copper

                      Light source:

                      LED

                      Luminous flux:

                      1280 lm

                      Power:

                      15 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 3000K MG
                      Reference:

                      A2512001MG

                      Color:

                      Metallized gold

                      Light source:

                      LED

                      Luminous flux:

                      1280 lm

                      Power:

                      15 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 3000K NT
                      Reference:

                      A2512001NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      1280 lm

                      Power:

                      15 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 3000K WT
                      Reference:

                      A2512001WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1280 lm

                      Power:

                      15 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 4000K MC
                      Reference:

                      A2512002MC

                      Color:

                      Metallized copper

                      Light source:

                      LED

                      Luminous flux:

                      1330 lm

                      Power:

                      15 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 4000K MG
                      Reference:

                      A2512002MG

                      Color:

                      Metallized gold

                      Light source:

                      LED

                      Luminous flux:

                      1330 lm

                      Power:

                      15 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 4000K NT
                      Reference:

                      A2512002NT

                      Color:

                      Textured black

                      Light source:

                      LED

                      Luminous flux:

                      1330 lm

                      Power:

                      15 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20

                    • PUCK L 4000K WT
                      Reference:

                      A2512002WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1330 lm

                      Power:

                      15 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      80%

                      Dimming:

                      No Dim

                      Sealing:

                      IP20
