Puck Recessed

CEILING RECESSED

Puck recessed is the Puck version for recessed applications. Puck recessed aims to fulfill the functions of general lighting. Its discreet presence takes the shape of a circular piece, totally made of aluminium, with a slight rounded slant to hold the light source back a few centimetres.

Awards

Iconic Award Interior Innovation 2017 Winner

Puck S Recessed

Puck M Recessed

Puck L recessed

Puck M Recessed

Luminous flux

1090 lm / 1160 lm / 1230 lm
Lighting efficiency

80%
Power

9 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 4000K
Sealing

IP20 / IP54
Chromatic stability

MacAdam Step 2
Recess measurements

Ø73mm
Light beam angle

45°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

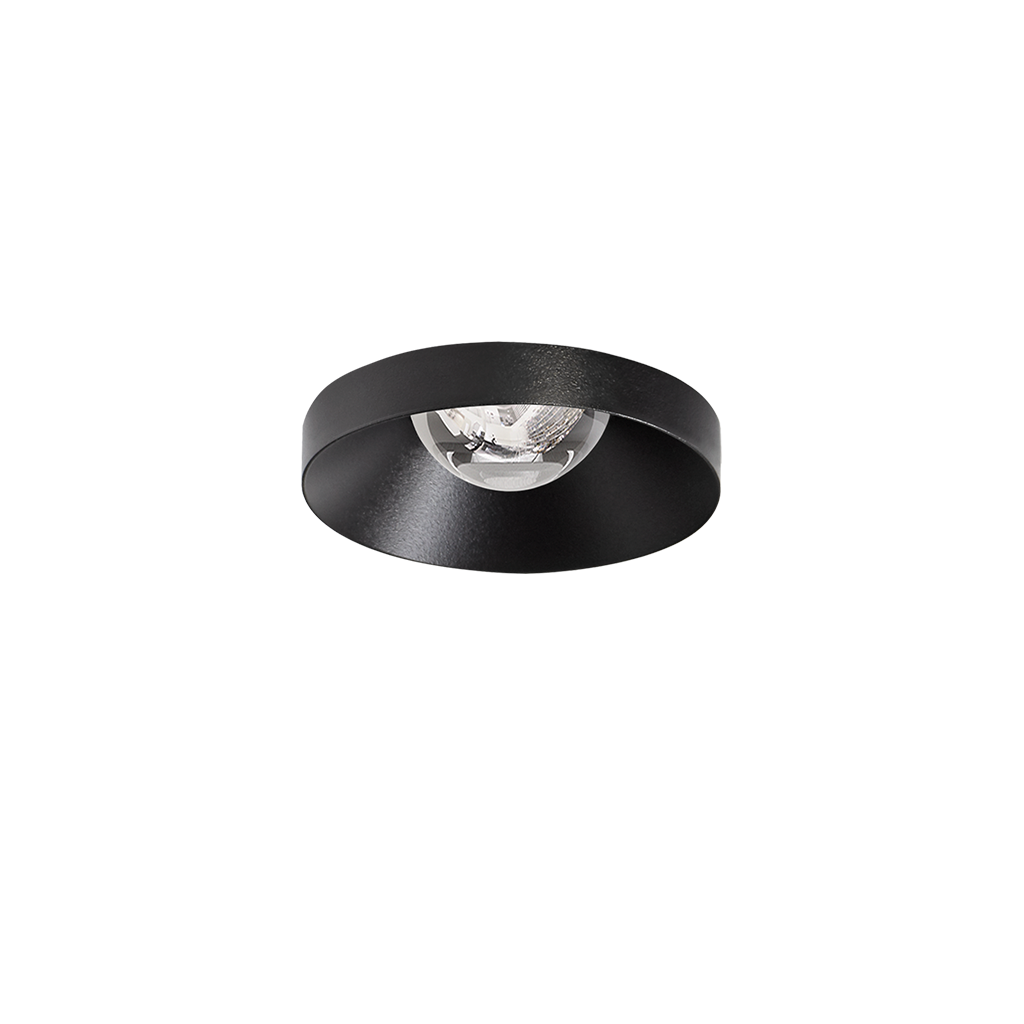

PUCK RECESSED M 2700K NT

Reference:

A3131010NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20

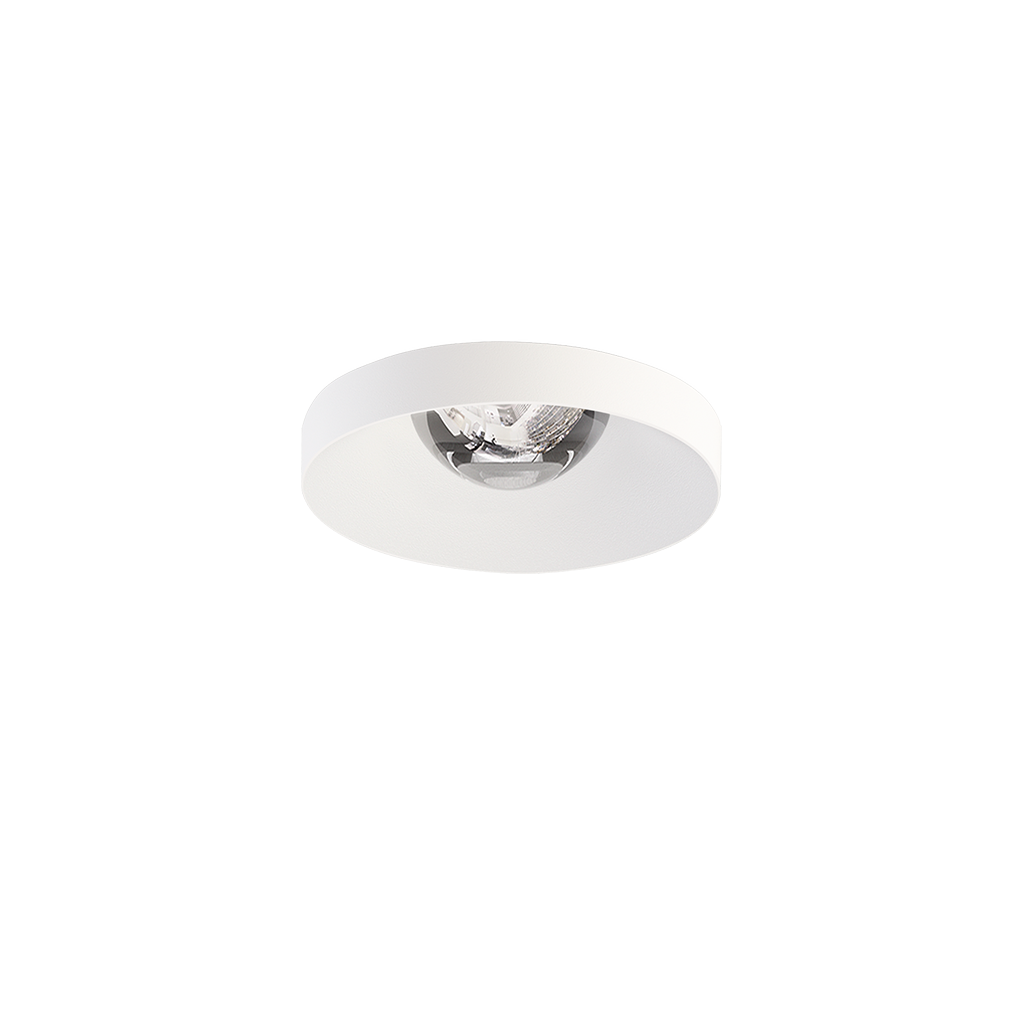

PUCK RECESSED M 2700K WT

Reference:

A3131010WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20
PUCK RECESSED M 3000K NT

Reference:

A3131011NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20
PUCK RECESSED M 3000K WT

Reference:

A3131011WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20
PUCK RECESSED M 4000K NT

Reference:

A3131012NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20
PUCK RECESSED M 4000K WT

Reference:

A3131012WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 2700K NT

Reference:

A3131020NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 2700K WT

Reference:

A3131020WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 3000K NT

Reference:

A3131021NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 3000K WT

Reference:

A3131021WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 4000K NT

Reference:

A3131022NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM DALI/PUSH 4000K WT

Reference:

A3131022WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 2700K NT

Reference:

A3131050NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 2700K WT

Reference:

A3131050WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 3000K NT

Reference:

A3131051NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 3000K WT

Reference:

A3131051WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 4000K NT

Reference:

A3131052NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED M DIM PH.CUT 4000K WT

Reference:

A3131052WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP20
PUCK RECESSED IP54 M 2700K NT

Reference:

A3141010NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M 2700K WT

Reference:

A3141010WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M 3000K NT

Reference:

A3141011NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M 3000K WT

Reference:

A3141011WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M 4000K NT

Reference:

A3141012NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M 4000K WT

Reference:

A3141012WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

No Dim

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 2700K NT

Reference:

A3141020NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 2700K WT

Reference:

A3141020WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 3000K NT

Reference:

A3141021NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 3000K WT

Reference:

A3141021WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 4000K NT

Reference:

A3141022NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM DALI/PUSH 4000K WT

Reference:

A3141022WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

DALI / Push

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 2700K NT

Reference:

A3141050NT

Color:

Textured black

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 2700K WT

Reference:

A3141050WT

Color:

Textured white

Light source:

LED

Luminous flux:

1090 lm

Power:

9 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 3000K NT

Reference:

A3141051NT

Color:

Textured black

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 3000K WT

Reference:

A3141051WT

Color:

Textured white

Light source:

LED

Luminous flux:

1160 lm

Power:

9 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 4000K NT

Reference:

A3141052NT

Color:

Textured black

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54
PUCK RECESSED IP54 M DIM PH.CUT 4000K WT

Reference:

A3141052WT

Color:

Textured white

Light source:

LED

Luminous flux:

1230 lm

Power:

9 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

45°

Lighting efficiency:

80%

Dimming:

Phase Cut

Sealing:

IP54

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Puck Recessed

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

Puck M Recessed

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Are you interested in this product? Contact us

Related products

Shot Light

Swap

Lex

Olympia

Related projects

Sánchez Plá

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
