Shot Light
CEILING RECESSED
A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.
Awards
-
Iconic Award Interior Innovation 2017 Winner
-
If Product Design Award 2017 Winner
-
Delta Award Selection 2018
-
European Product Design Winner 2022

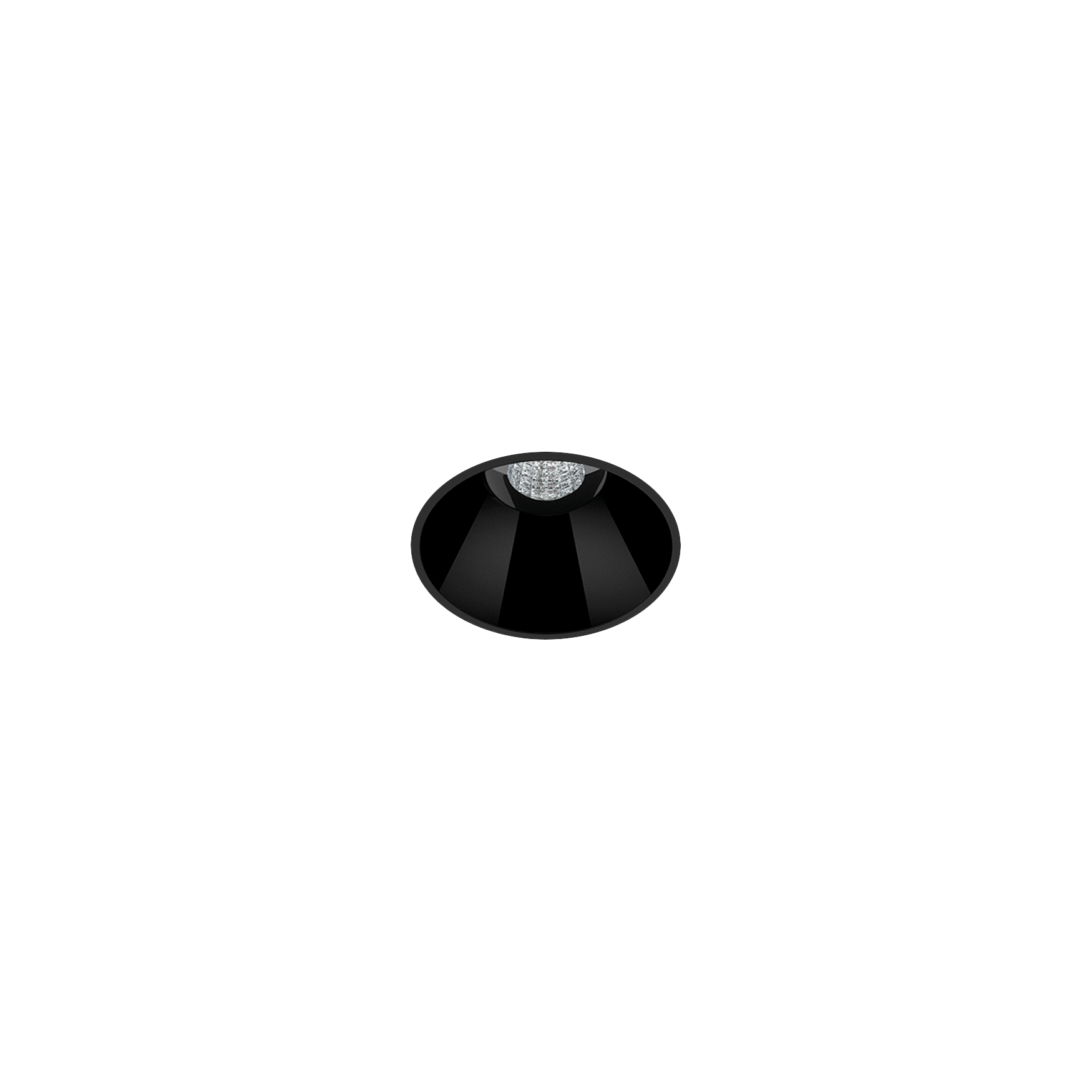

Shot Light Trimless
-
Luminous flux
190 lm / 210 lm / 250 lm
-
Lighting efficiency
86% / 90% / 92%
-
Power
2,1 W
-
Dimming
No Dim
-
Color temperature
2700K / 3000K / 4000K
-
Sealing
IP20
-
Chromatic stability
MacAdam Step 3
-
Recess measurements
Ø43mm
-
Light beam angle
19° / 38°
-
Model
Ref.
Color
Source
Lum. flux
Power
Temp.
CRI
Beam angle
Efficiency
Dimming
Sealing
-
Reference:
A2690110N
Color:Black
Light source:LED
Luminous flux:190 lm
Power:2,1 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:

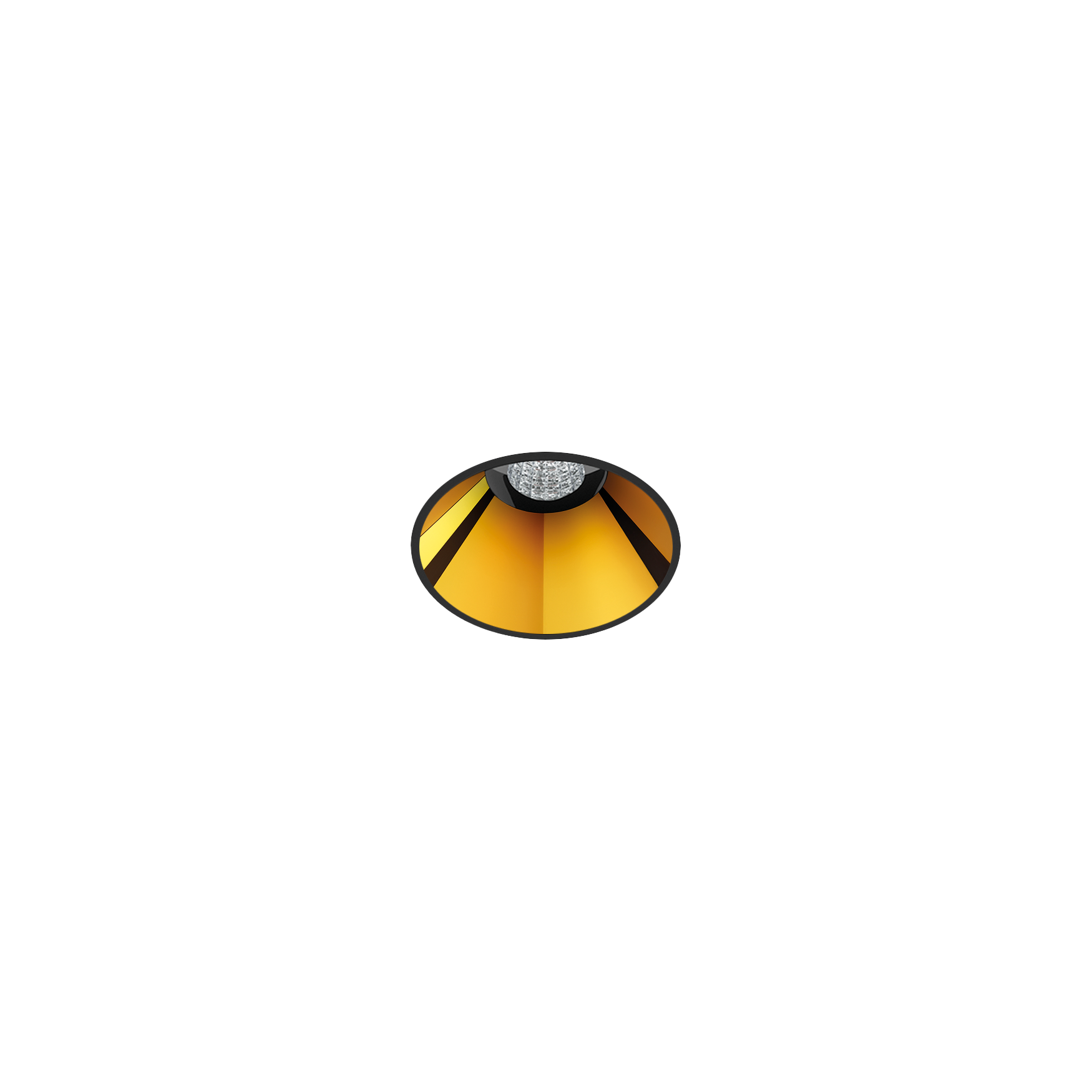

A2690110NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:190 lm
Power:2,1 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690111N
Color:Black
Light source:LED
Luminous flux:210 lm
Power:2,1 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690111NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:210 lm
Power:2,1 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690112N
Color:Black
Light source:LED
Luminous flux:250 lm
Power:2,1 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690112NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:250 lm
Power:2,1 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:19°
Lighting efficiency:90%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690120N
Color:Black
Light source:LED
Luminous flux:190 lm
Power:2,1 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690120NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:190 lm
Power:2,1 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:

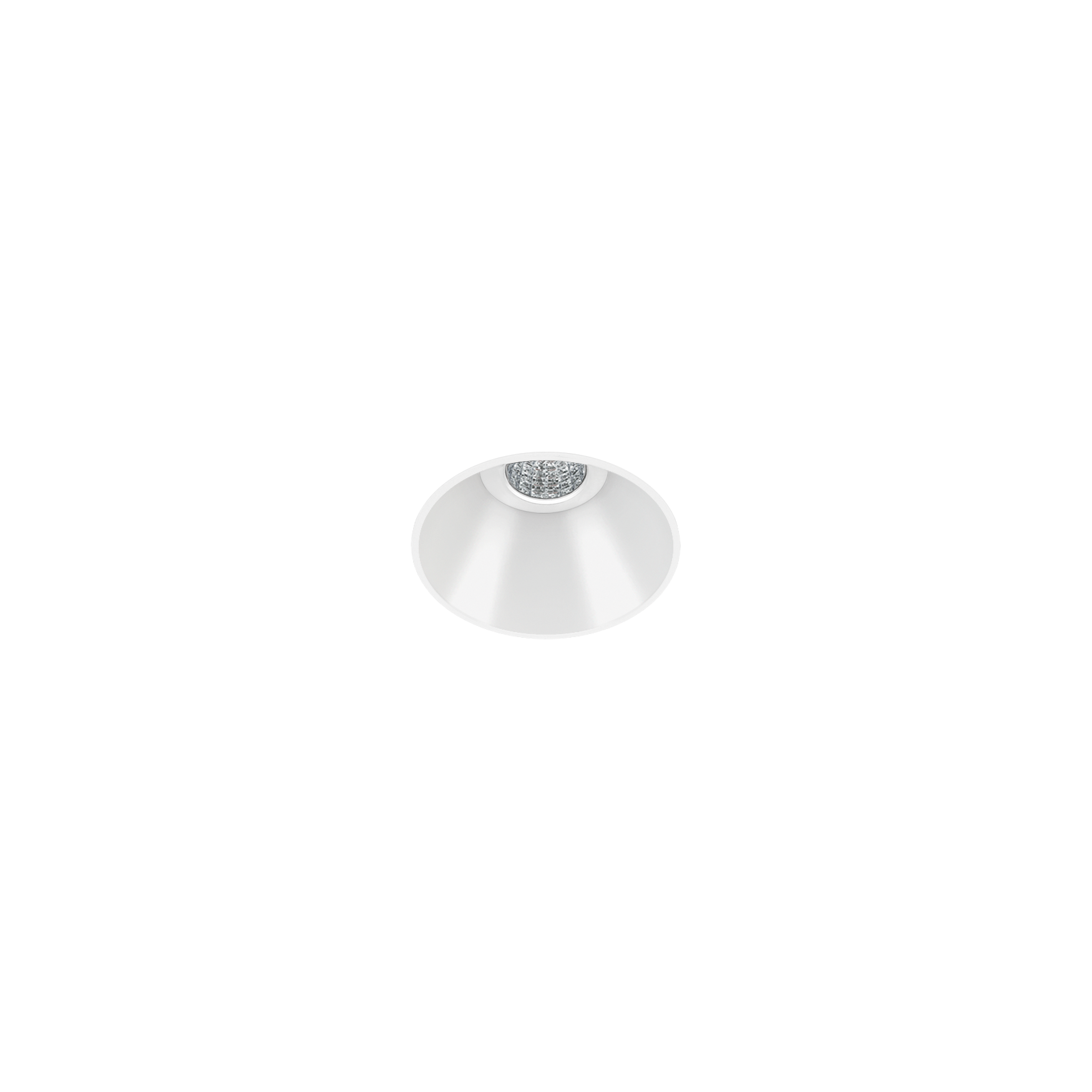

A2690120W
Color:White
Light source:LED
Luminous flux:190 lm
Power:2,1 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:86%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690121N
Color:Black
Light source:LED
Luminous flux:210 lm
Power:2,1 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690121NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:210 lm
Power:2,1 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690121W
Color:White
Light source:LED
Luminous flux:210 lm
Power:2,1 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:86%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690122N
Color:Black
Light source:LED
Luminous flux:250 lm
Power:2,1 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690122NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:250 lm
Power:2,1 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:92%
Dimming:No Dim
Sealing:IP20
-
Reference:
A2690122W
Color:White
Light source:LED
Luminous flux:250 lm
Power:2,1 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:38°
Lighting efficiency:86%
Dimming:No Dim
Sealing:IP20
