Shot Light

CEILING RECESSED

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.

Awards

Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018
European Product Design Winner 2022

Shot Light

Shot Light Trimless

Shot Light S

Shot Light S Trimless

New

Shot Light S Semi Recessed

New

Shot Light S Flex

Shot Light M

Shot Light M Trimless

Shot Light M Asymmetric

Shot Light M Asymmetric Trimless

Shot Light Big

Shot Light M Asymmetric

Luminous flux

675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Lighting efficiency

83%
Power

5 W / 6,5 W / 10,3 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø75mm
Light beam angle

38°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
SHOT LIGHT M ASYMM 1 2700K N

Reference:

A2971110N

Color:

Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20

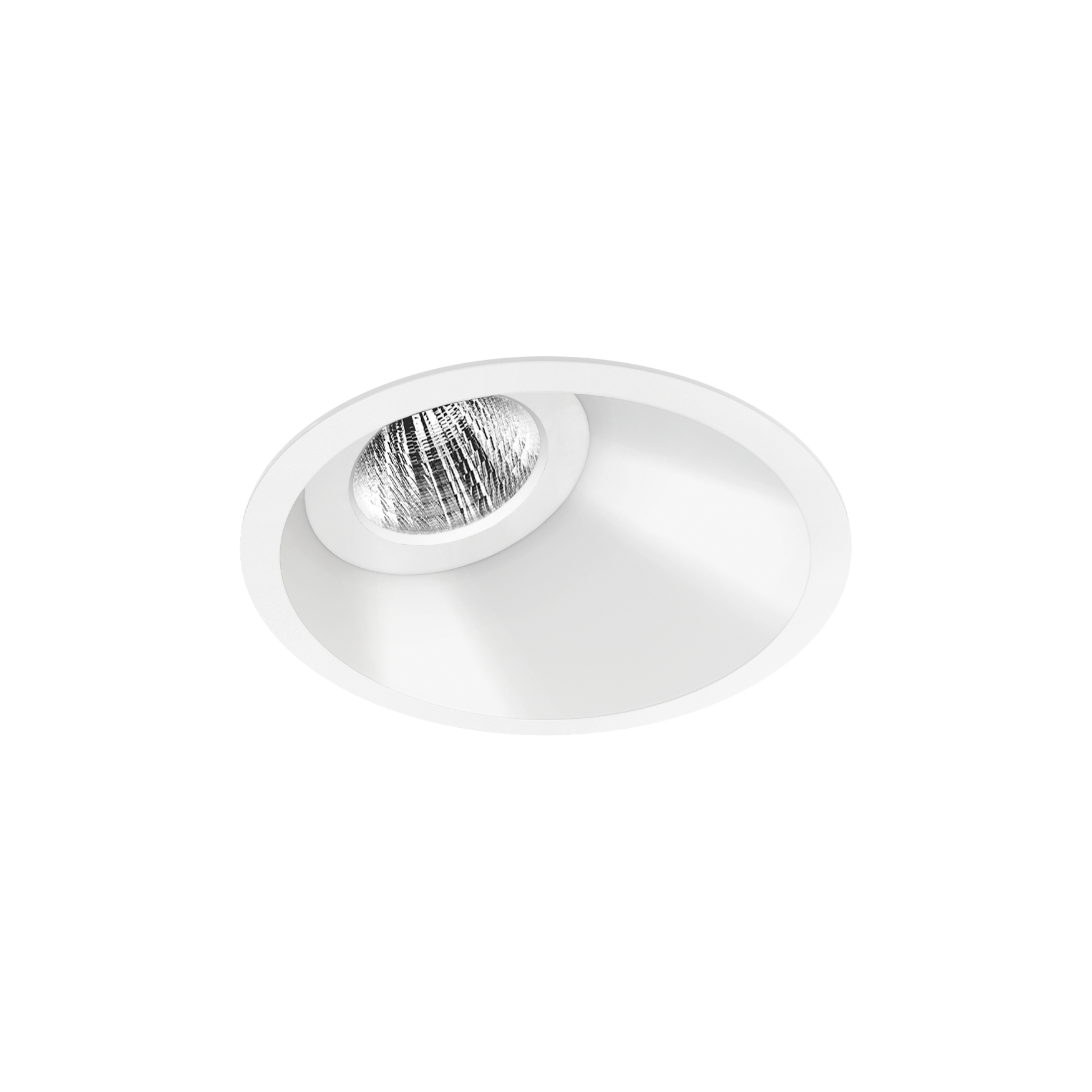

SHOT LIGHT M ASYMM 1 2700K W

Reference:

A2971110W

Color:

White

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 1 3000K N

Reference:

A2971111N

Color:

Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 1 3000K W

Reference:

A2971111W

Color:

White

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 1 4000K N

Reference:

A2971112N

Color:

Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 1 4000K W

Reference:

A2971112W

Color:

White

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 2700K N

Reference:

A2971210N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 2700K W

Reference:

A2971210W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 3000K N

Reference:

A2971211N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 3000K W

Reference:

A2971211W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 4000K N

Reference:

A2971212N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 4000K W

Reference:

A2971212W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 2700K N

Reference:

A2971230N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 2700K W

Reference:

A2971230W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 3000K N

Reference:

A2971231N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 3000K W

Reference:

A2971231W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 4000K N

Reference:

A2971232N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM DALI/PUSH 4000K W

Reference:

A2971232W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 2700K N

Reference:

A2971250N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 2700K W

Reference:

A2971250W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 3000K N

Reference:

A2971251N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 3000K W

Reference:

A2971251W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 4000K N

Reference:

A2971252N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 2 DIM PH.CUT 4000K W

Reference:

A2971252W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 2700K N

Reference:

A2971310N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 2700K W

Reference:

A2971310W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 3000K N

Reference:

A2971311N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 3000K W

Reference:

A2971311W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 4000K N

Reference:

A2971312N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 4000K W

Reference:

A2971312W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 2700K N

Reference:

A2971330N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 2700K W

Reference:

A2971330W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 3000K N

Reference:

A2971331N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 3000K W

Reference:

A2971331W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 4000K N

Reference:

A2971332N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM DALI/PUSH 4000K W

Reference:

A2971332W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 2700K N

Reference:

A2971350N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 2700K W

Reference:

A2971350W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 3000K N

Reference:

A2971351N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 3000K W

Reference:

A2971351W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 4000K N

Reference:

A2971352N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM 3 DIM PH.CUT 4000K W

Reference:

A2971352W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Shot Light

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

If Product Design Award 2017 Winner

Delta Award Selection 2018

European Product Design Winner 2022

Shot Light M Asymmetric

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Swap

Lex

Olympia

Deep

Related projects

Mara House

Brassa de Mar

Casacuberta

All in One – Caixabank

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
