Shot Light

CEILING RECESSED

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.

Awards

Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018
European Product Design Winner 2022

Shot Light

Shot Light Trimless

Shot Light S

Shot Light S Trimless

New

Shot Light S Semi Recessed

New

Shot Light S Flex

Shot Light M

Shot Light M Trimless

Shot Light M Asymmetric

Shot Light M Asymmetric Trimless

Shot Light Big

Shot Light M Asymmetric Trimless

Luminous flux

675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Lighting efficiency

83%
Power

5 W / 6,5 W / 10,3 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Recess measurements

Ø85mm
Light beam angle

38°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

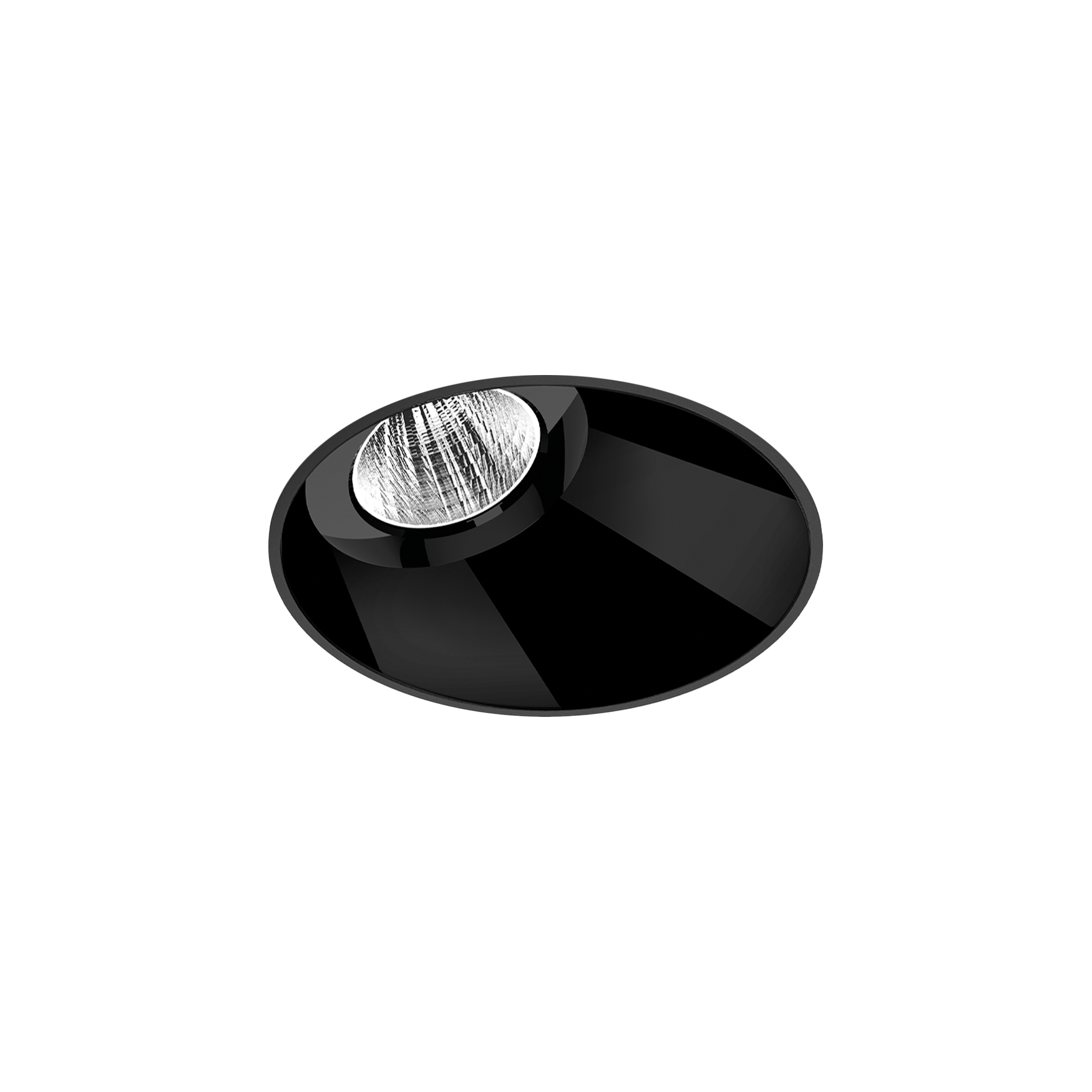

SHOT LIGHT M ASYMM TRIMLESS 1 2700K N

Reference:

A2981110N

Color:

Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20

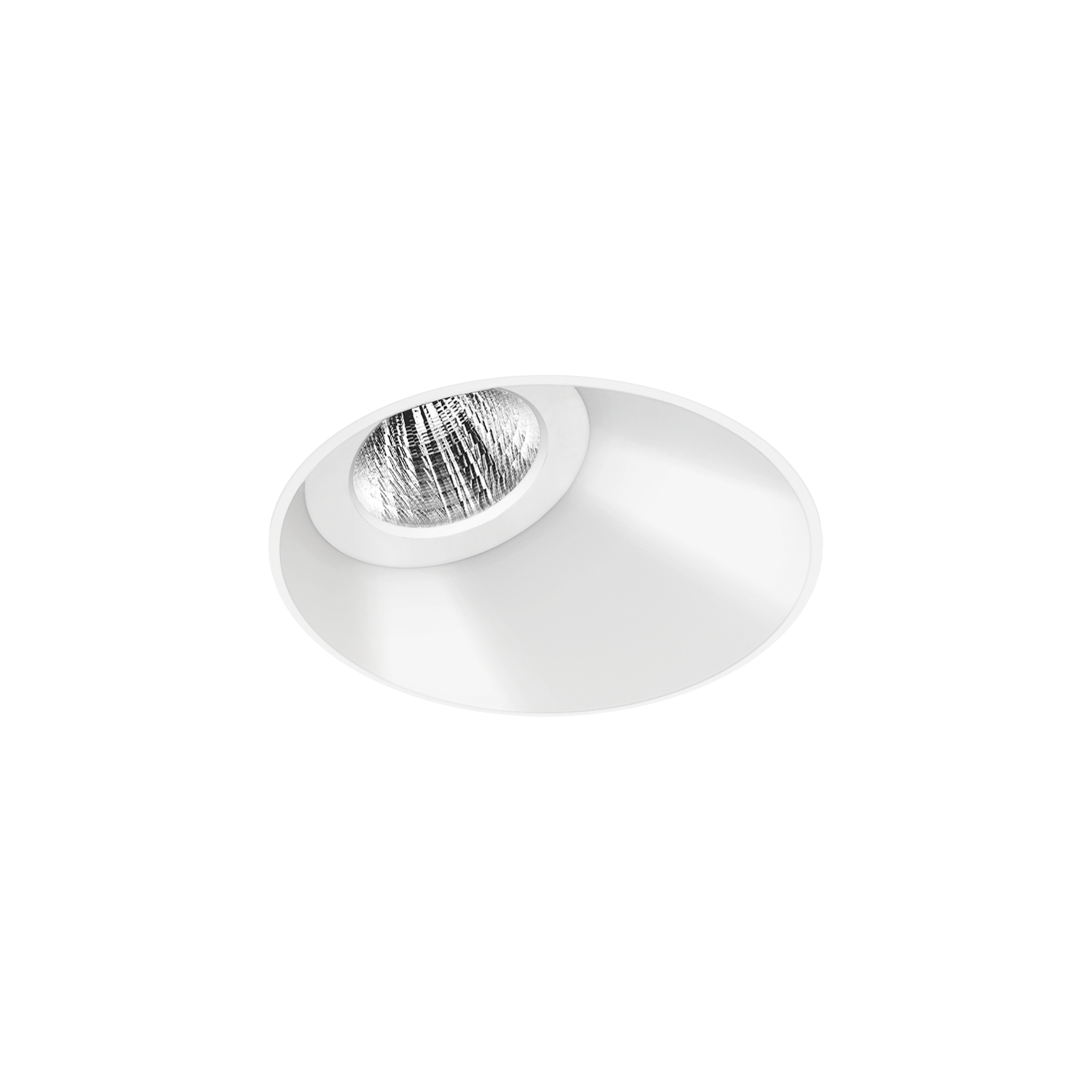

SHOT LIGHT M ASYMM TRIMLESS 1 2700K W

Reference:

A2981110W

Color:

White

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 1 3000K N

Reference:

A2981111N

Color:

Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 1 3000K W

Reference:

A2981111W

Color:

White

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 1 4000K N

Reference:

A2981112N

Color:

Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 1 4000K W

Reference:

A2981112W

Color:

White

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 2700K N

Reference:

A2981210N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 2700K W

Reference:

A2981210W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 3000K N

Reference:

A2981211N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 3000K W

Reference:

A2981211W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 4000K N

Reference:

A2981212N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 4000K W

Reference:

A2981212W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 2700K N

Reference:

A2981230N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 2700K W

Reference:

A2981230W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 3000K N

Reference:

A2981231N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 3000K W

Reference:

A2981231W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 4000K N

Reference:

A2981232N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM DALI/PUSH 4000K W

Reference:

A2981232W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 2700K N

Reference:

A2981250N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 2700K W

Reference:

A2981250W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 3000K N

Reference:

A2981251N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 3000K W

Reference:

A2981251W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 4000K N

Reference:

A2981252N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 2 DIM PH.CUT 4000K W

Reference:

A2981252W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 2700K N

Reference:

A2981310N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 2700K W

Reference:

A2981310W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 3000K N

Reference:

A2981311N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 3000K W

Reference:

A2981311W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 4000K N

Reference:

A2981312N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 4000K W

Reference:

A2981312W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 2700K N

Reference:

A2981330N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 2700K W

Reference:

A2981330W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 3000K N

Reference:

A2981331N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 3000K W

Reference:

A2981331W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 4000K N

Reference:

A2981332N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM DALI/PUSH 4000K W

Reference:

A2981332W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 2700K N

Reference:

A2981350N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 2700K W

Reference:

A2981350W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 3000K N

Reference:

A2981351N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 3000K W

Reference:

A2981351W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 4000K N

Reference:

A2981352N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M ASYMM TRIMLESS 3 DIM PH.CUT 4000K W

Reference:

A2981352W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

83%

Dimming:

Phase Cut

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

TRIMLESS ACCESSORY (MANDATORY)

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Shot Light

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

If Product Design Award 2017 Winner

Delta Award Selection 2018

European Product Design Winner 2022

Shot Light M Asymmetric Trimless

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Swap

Lex

Olympia

Deep

Related projects

Mara House

Brassa de Mar

Casacuberta

All in One – Caixabank

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
