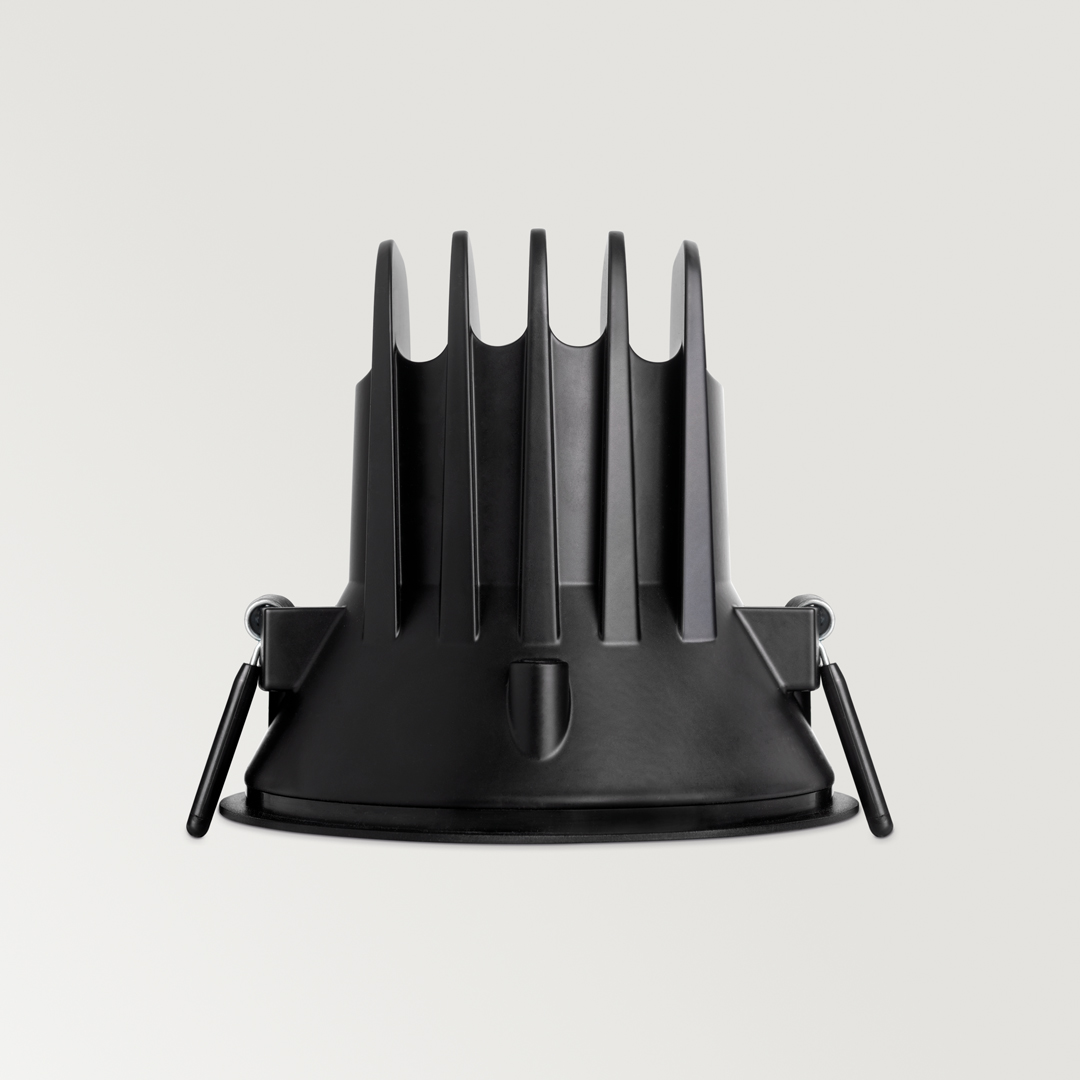

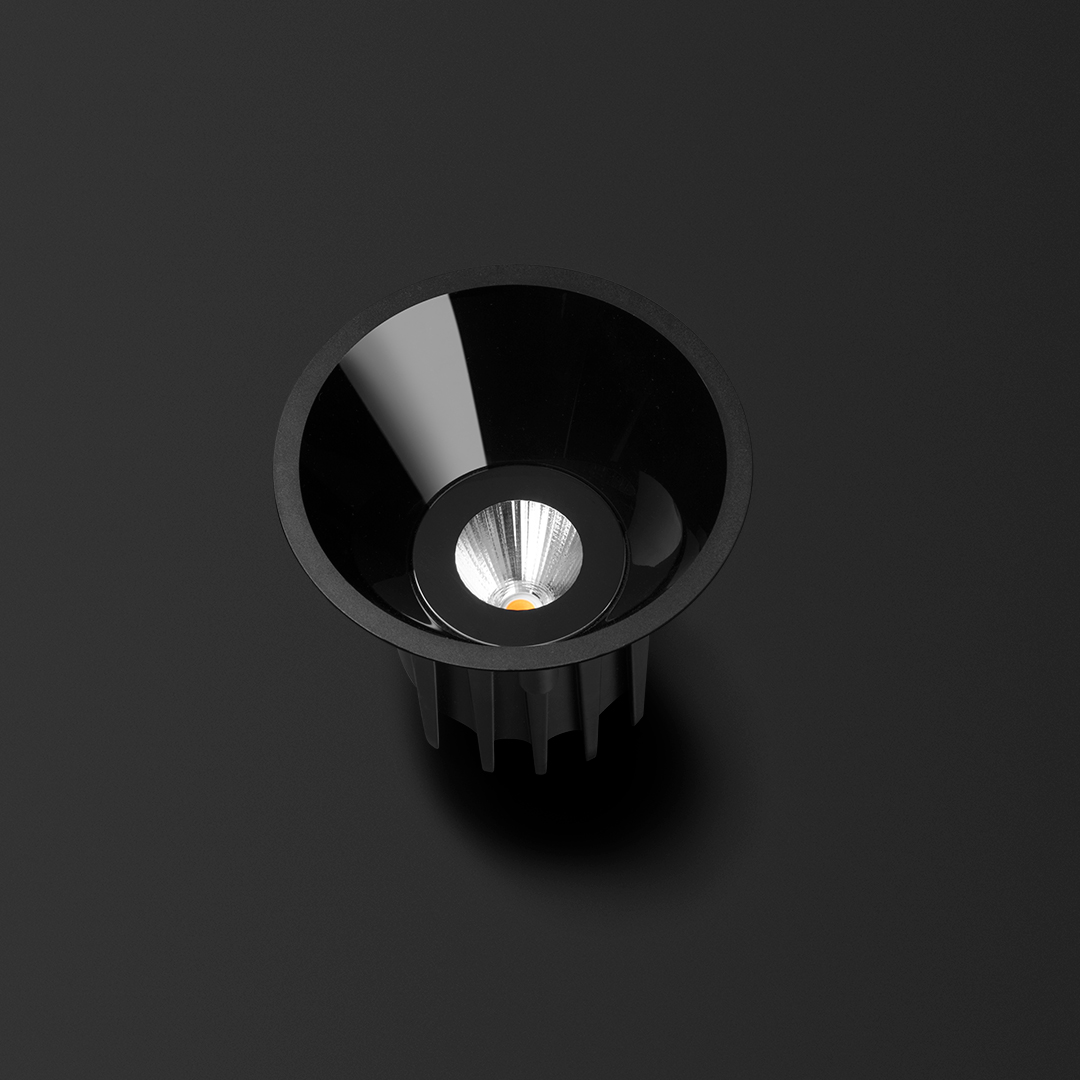

Shot Light

CEILING RECESSED

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.

Awards

Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018
European Product Design Winner 2022

Shot Light

Shot Light Trimless

Shot Light S

Shot Light S Trimless

New

Shot Light S Semi Recessed

New

Shot Light S Flex

Shot Light M

Shot Light M Trimless

Shot Light M Asymmetric

Shot Light M Asymmetric Trimless

Shot Light Big

Luminous flux

1490 lm / 1600 lm / 1720 lm / 2010 lm / 2160 lm / 2320 lm / 2600 lm / 2780 lm / 3000 lm
Lighting efficiency

86% / 89%
Power

11,8 W / 17,5 W / 25,3 W
Dimming

No Dim, DALI, Push
Color temperature

2700K / 3000K / 4000K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2
Recess measurements

Ø121mm
Light beam angle

18° / 49° / 50°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

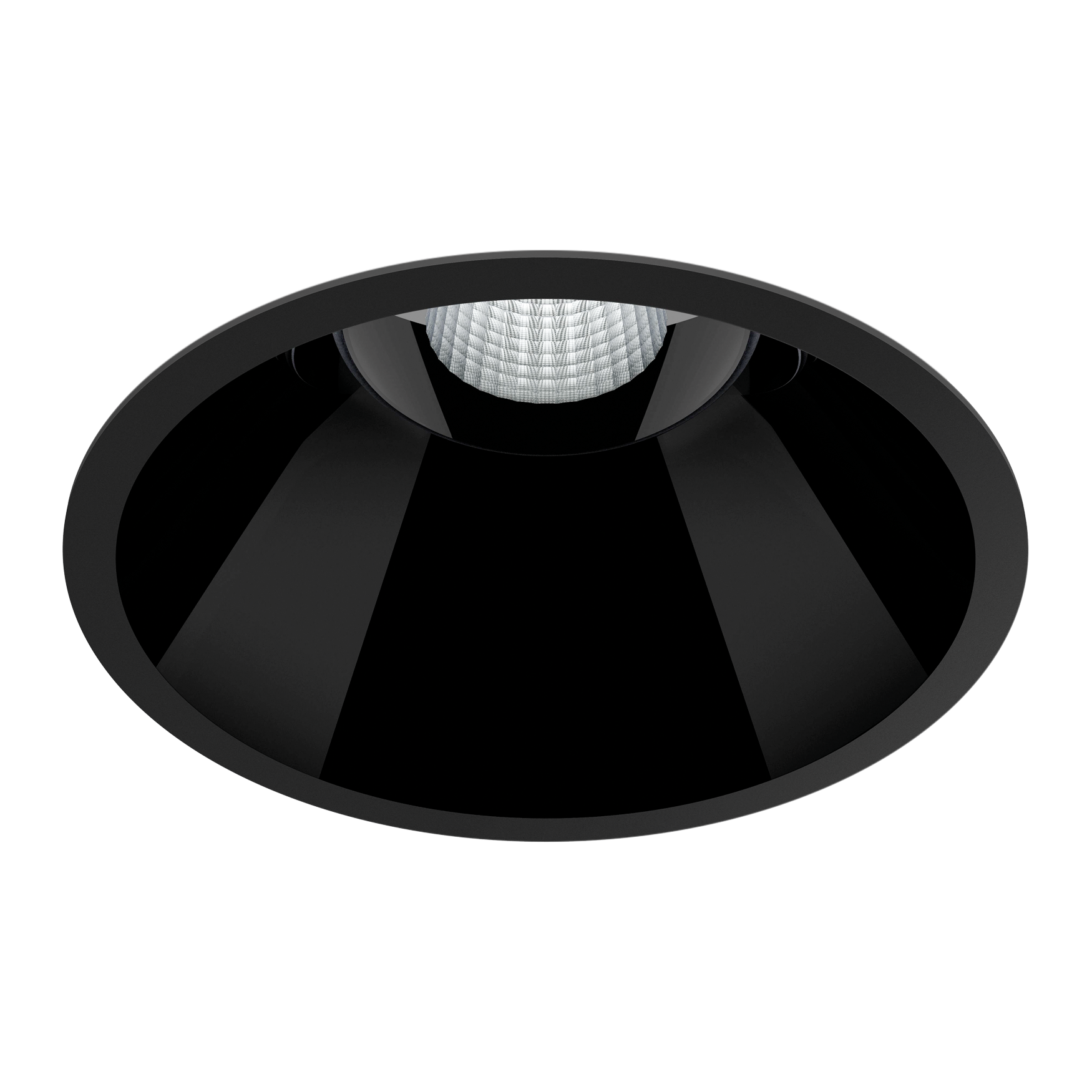

SHOT LIGHT BIG 1 SPOT 2700K N

Reference:

A4481110N

Color:

Black

Light source:

LED

Luminous flux:

1490 lm

Power:

11,8 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 1 SPOT 3000K N

Reference:

A4481111N

Color:

Black

Light source:

LED

Luminous flux:

1600 lm

Power:

11,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 1 SPOT 4000K N

Reference:

A4481112N

Color:

Black

Light source:

LED

Luminous flux:

1720 lm

Power:

11,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 1 FLOOD 2700K N

Reference:

A4481120N

Color:

Black

Light source:

LED

Luminous flux:

1490 lm

Power:

11,8 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 1 FLOOD 3000K N

Reference:

A4481121N

Color:

Black

Light source:

LED

Luminous flux:

1600 lm

Power:

11,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 1 FLOOD 4000K N

Reference:

A4481122N

Color:

Black

Light source:

LED

Luminous flux:

1720 lm

Power:

11,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 SPOT 2700K N

Reference:

A4482110N

Color:

Black

Light source:

LED

Luminous flux:

2010 lm

Power:

17,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 SPOT 3000K N

Reference:

A4482111N

Color:

Black

Light source:

LED

Luminous flux:

2160 lm

Power:

17,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 SPOT 4000K N

Reference:

A4482112N

Color:

Black

Light source:

LED

Luminous flux:

2320 lm

Power:

17,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 FLOOD 2700K N

Reference:

A4482120N

Color:

Black

Light source:

LED

Luminous flux:

2010 lm

Power:

17,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 FLOOD 3000K N

Reference:

A4482121N

Color:

Black

Light source:

LED

Luminous flux:

2160 lm

Power:

17,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 2 FLOOD 4000K N

Reference:

A4482122N

Color:

Black

Light source:

LED

Luminous flux:

2320 lm

Power:

17,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT 2700K N

Reference:

A4483110N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT 3000K N

Reference:

A4483111N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT 4000K N

Reference:

A4483112N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD 2700K N

Reference:

A4483120N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD 3000K N

Reference:

A4483121N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD 4000K N

Reference:

A4483122N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM DALI 2700K N

Reference:

A4483210N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM DALI 3000K N

Reference:

A4483211N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM DALI 4000K N

Reference:

A4483212N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM DALI 2700K N

Reference:

A4483220N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM DALI 3000K N

Reference:

A4483221N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM DALI 4000K N

Reference:

A4483222N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM PUSH 2700K N

Reference:

A4483310N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM PUSH 3000K N

Reference:

A4483311N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG 3 SPOT DIM PUSH 4000K N

Reference:

A4483312N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM PUSH 2700K N

Reference:

A4483320N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM PUSH 3000K N

Reference:

A4483321N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG 3 FLOOD DIM PUSH 4000K N

Reference:

A4483322N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

49°

Lighting efficiency:

89%

Dimming:

Push

Sealing:

IP20
SHOT LIGHT BIG IP65 1 FLOOD 2700K N

Reference:

A4491120N

Color:

Black

Light source:

LED

Luminous flux:

1490 lm

Power:

11,8 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65

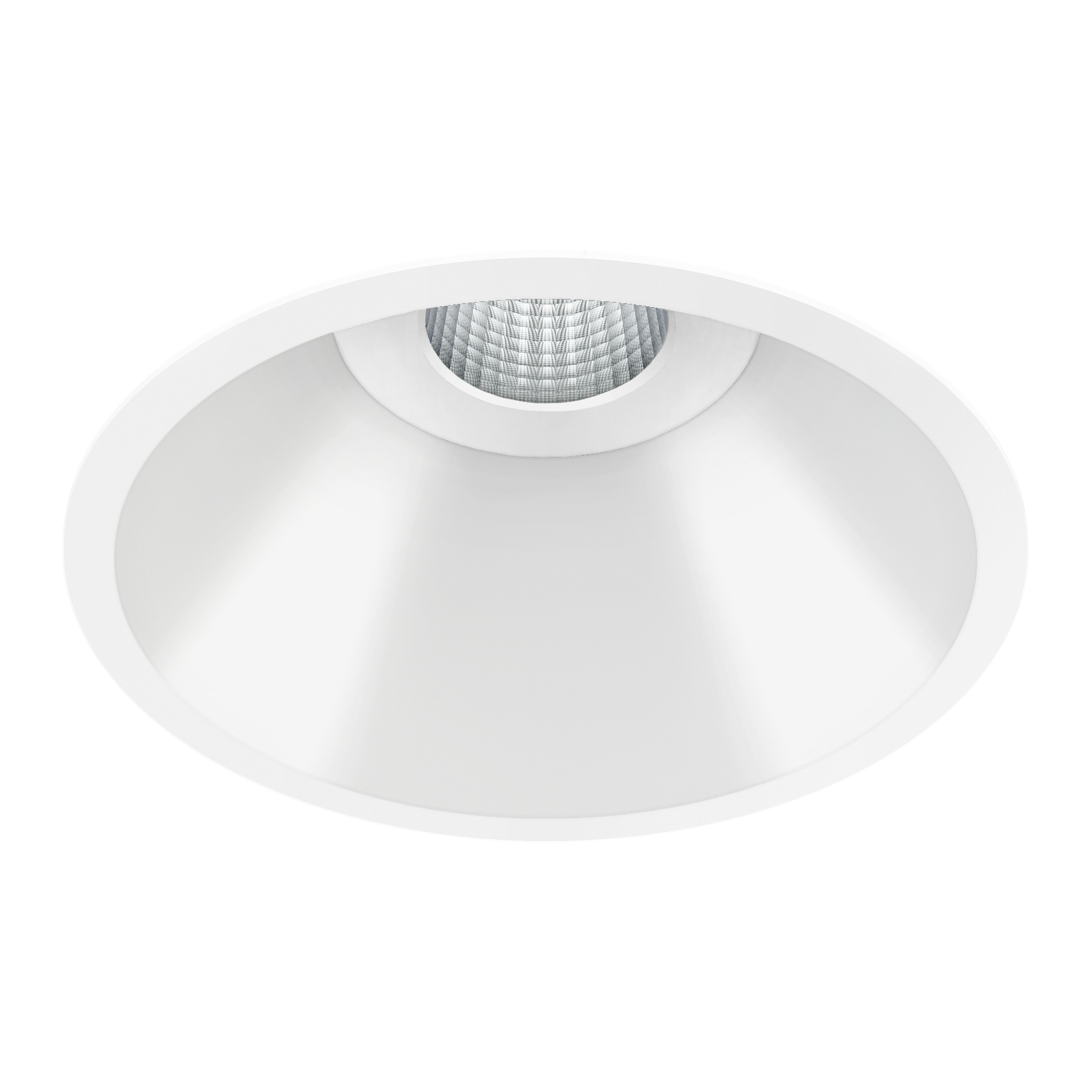

SHOT LIGHT BIG IP65 1 FLOOD 2700K W

Reference:

A4491120W

Color:

White

Light source:

LED

Luminous flux:

1490 lm

Power:

11,8 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 1 FLOOD 3000K N

Reference:

A4491121N

Color:

Black

Light source:

LED

Luminous flux:

1600 lm

Power:

11,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 1 FLOOD 3000K W

Reference:

A4491121W

Color:

White

Light source:

LED

Luminous flux:

1600 lm

Power:

11,8 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 1 FLOOD 4000K N

Reference:

A4491122N

Color:

Black

Light source:

LED

Luminous flux:

1720 lm

Power:

11,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 1 FLOOD 4000K W

Reference:

A4491122W

Color:

White

Light source:

LED

Luminous flux:

1720 lm

Power:

11,8 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 2700K N

Reference:

A4492120N

Color:

Black

Light source:

LED

Luminous flux:

2010 lm

Power:

17,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 2700K W

Reference:

A4492120W

Color:

White

Light source:

LED

Luminous flux:

2010 lm

Power:

17,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 3000K N

Reference:

A4492121N

Color:

Black

Light source:

LED

Luminous flux:

2160 lm

Power:

17,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 3000K W

Reference:

A4492121W

Color:

White

Light source:

LED

Luminous flux:

2160 lm

Power:

17,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 4000K N

Reference:

A4492122N

Color:

Black

Light source:

LED

Luminous flux:

2320 lm

Power:

17,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 2 FLOOD 4000K W

Reference:

A4492122W

Color:

White

Light source:

LED

Luminous flux:

2320 lm

Power:

17,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 2700K N

Reference:

A4493120N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 2700K W

Reference:

A4493120W

Color:

White

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 3000K N

Reference:

A4493121N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 3000K W

Reference:

A4493121W

Color:

White

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 4000K N

Reference:

A4493122N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD 4000K W

Reference:

A4493122W

Color:

White

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 2700K N

Reference:

A4493220N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 2700K W

Reference:

A4493220W

Color:

White

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 3000K N

Reference:

A4493221N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 3000K W

Reference:

A4493221W

Color:

White

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 4000K N

Reference:

A4493222N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD DIM DALI 4000K W

Reference:

A4493222W

Color:

White

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 2700K N

Reference:

A4493320N

Color:

Black

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 2700K W

Reference:

A4493320W

Color:

White

Light source:

LED

Luminous flux:

2600 lm

Power:

25,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 3000K N

Reference:

A4493321N

Color:

Black

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 3000K W

Reference:

A4493321W

Color:

White

Light source:

LED

Luminous flux:

2780 lm

Power:

25,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 4000K N

Reference:

A4493322N

Color:

Black

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65
SHOT LIGHT BIG IP65 3 FLOOD PUSH DALI 4000K W

Reference:

A4493322W

Color:

White

Light source:

LED

Luminous flux:

3000 lm

Power:

25,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

50°

Lighting efficiency:

86%

Dimming:

Push

Sealing:

IP65

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Phone

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Shot Light

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

If Product Design Award 2017 Winner

Delta Award Selection 2018

European Product Design Winner 2022

Shot Light Big

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Are you interested in this product? Contact us

Related products

Swap

Lex

Olympia

Deep

Related projects

Mara House

Brassa de Mar

Casacuberta

All in One – Caixabank

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
