Shot Light
CEILING RECESSED
A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.
Awards
-
Iconic Award Interior Innovation 2017 Winner
-
If Product Design Award 2017 Winner
-
Delta Award Selection 2018
-
European Product Design Winner 2022
Shot Light S Trimless
-
Luminous flux
640 lm / 670 lm / 720 lm
-
Lighting efficiency
84% / 89%
-
Power
6 W
-
Dimming
No Dim, DALI, Phase Cut, Push
-
Color temperature
2700K / 3000K / 4000K
-
Sealing
IP20
-
Chromatic stability
MacAdam Step 2
-
Recess measurements
Ø59mm
-
Light beam angle
18° / 40°
-
Model
Ref.
Color
Source
Lum. flux
Power
Temp.
CRI
Beam angle
Efficiency
Dimming
Sealing
-
Reference:

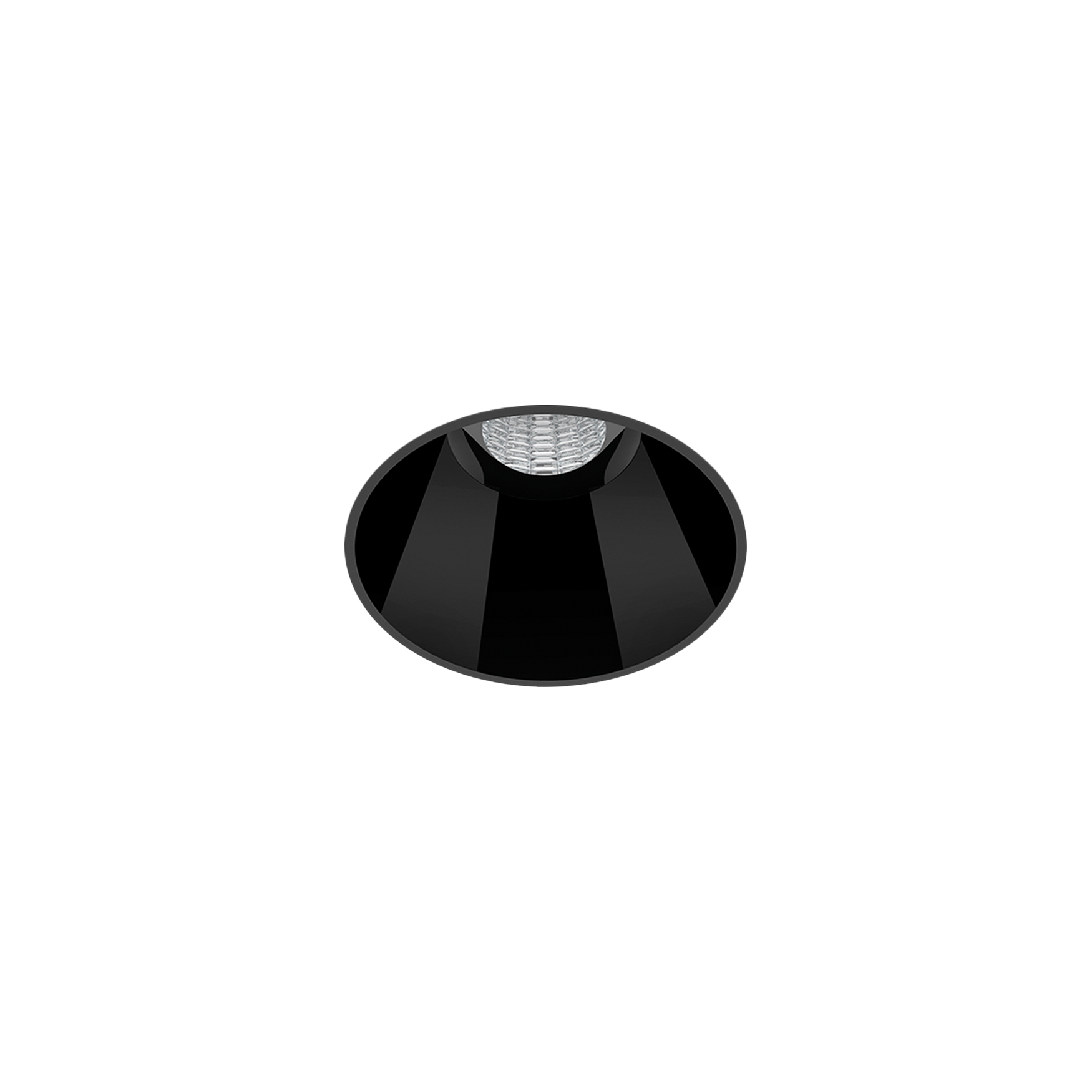

A4630100N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:

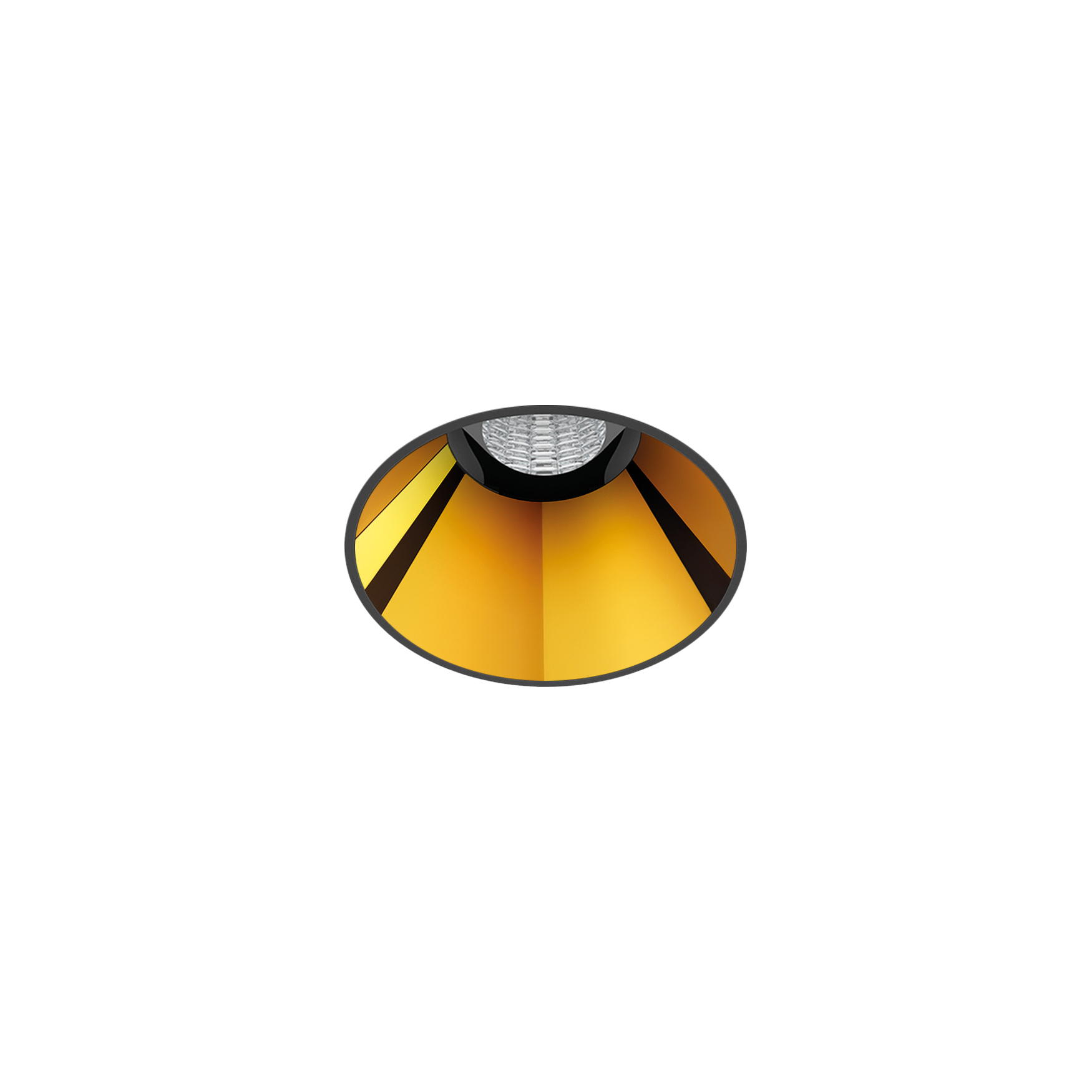

A4630100NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630101N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630101NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630102N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630102NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630110N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630110NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:

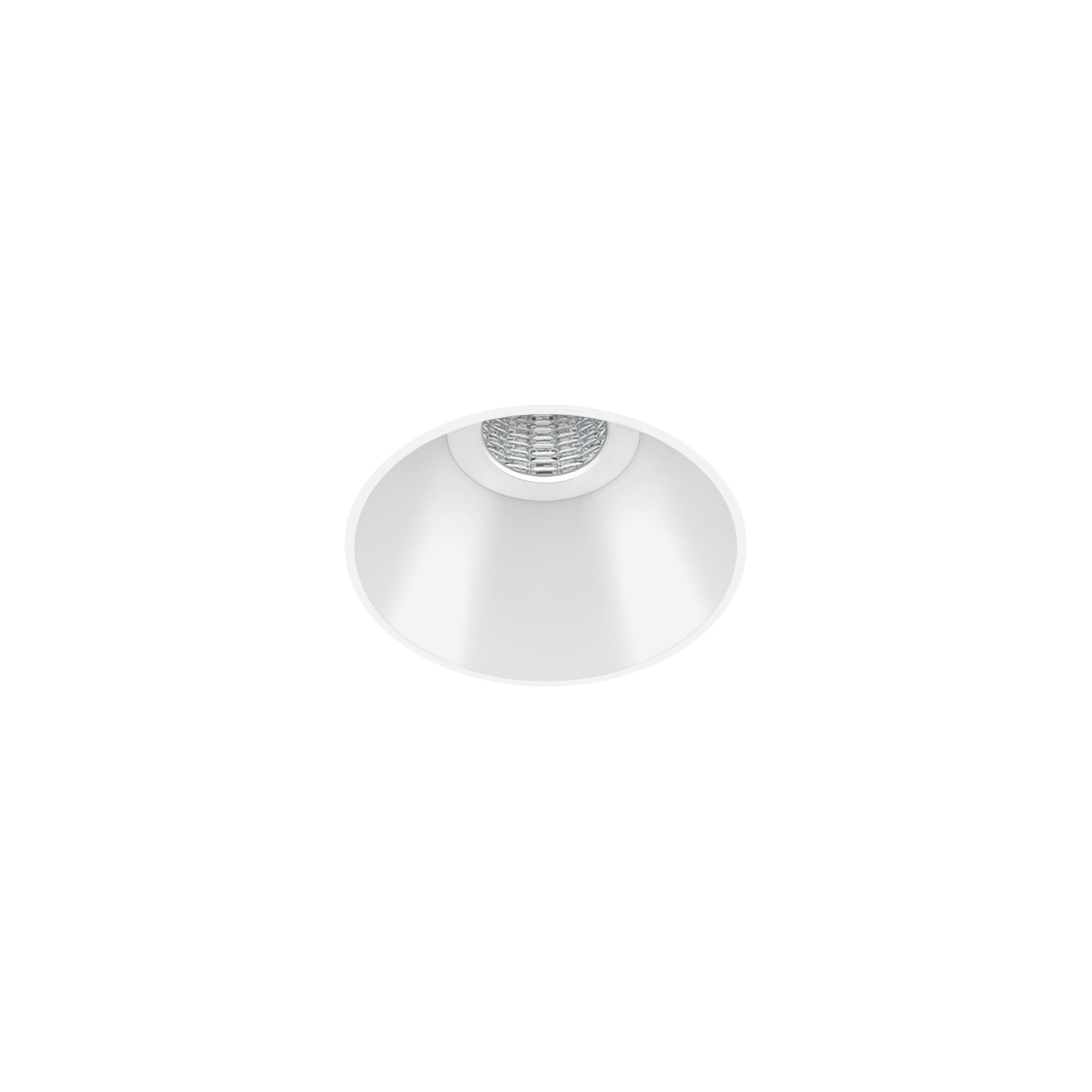

A4630110W
Color:White
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630111N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630111NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630111W
Color:White
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630112N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630112NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630112W
Color:White
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:No Dim
Sealing:IP20
-
Reference:
A4630200N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630200NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630201N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630201NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630202N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630202NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630210N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630210NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630210W
Color:White
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630211N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630211NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630211W
Color:White
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630212N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630212NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630212W
Color:White
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:DALI
Sealing:IP20
-
Reference:
A4630300N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630300NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630301N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630301NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630302N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630302NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630310N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630310NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630310W
Color:White
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Push
Sealing:IP20
-
Reference:
A4630311N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630311NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630311W
Color:White
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Push
Sealing:IP20
-
Reference:
A4630312N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630312NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Push
Sealing:IP20
-
Reference:
A4630312W
Color:White
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Push
Sealing:IP20
-
Reference:
A4630500N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630500NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630501N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630501NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630502N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630502NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:18°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630510N
Color:Black
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630510NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630510W
Color:White
Light source:LED
Luminous flux:640 lm
Power:6 W
Colour temperature:2700K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630511N
Color:Black
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630511NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630511W
Color:White
Light source:LED
Luminous flux:670 lm
Power:6 W
Colour temperature:3000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630512N
Color:Black
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630512NMG
Color:Black-Metallized gold
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:89%
Dimming:Phase Cut
Sealing:IP20
-
Reference:
A4630512W
Color:White
Light source:LED
Luminous flux:720 lm
Power:6 W
Colour temperature:4000K
CRI:CRI>90
Light beam angle:40°
Lighting efficiency:84%
Dimming:Phase Cut
Sealing:IP20
