Shot Light

CEILING RECESSED

A luminary conceived to be a small, discreet point of light in the ceiling that hides the illumination source from sight and aims to offer maximum visual comfort. In order to achieve this, it has an anti-glare screen and a specifically designed micro-reflector that generates a perfectly defined light beam.

Awards

Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018
European Product Design Winner 2022

Shot Light

Shot Light Trimless

Shot Light S

Shot Light S Trimless

New

Shot Light S Semi Recessed

New

Shot Light S Flex

Shot Light M

Shot Light M Trimless

Shot Light M Asymmetric

Shot Light M Asymmetric Trimless

Shot Light Big

Shot Light M

Luminous flux

675 lm / 700 lm / 710 lm / 910 lm / 940 lm / 960 lm / 1230 lm / 1280 lm / 1300 lm
Lighting efficiency

78% / 86%
Power

5 W / 6,5 W / 10,3 W
Dimming

No Dim, DALI / Push, Phase Cut
Color temperature

2700K / 3000K / 4000K
Sealing

IP20 / IP65
Chromatic stability

MacAdam Step 2
Recess measurements

Ø75mm
Light beam angle

37° / 38°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing

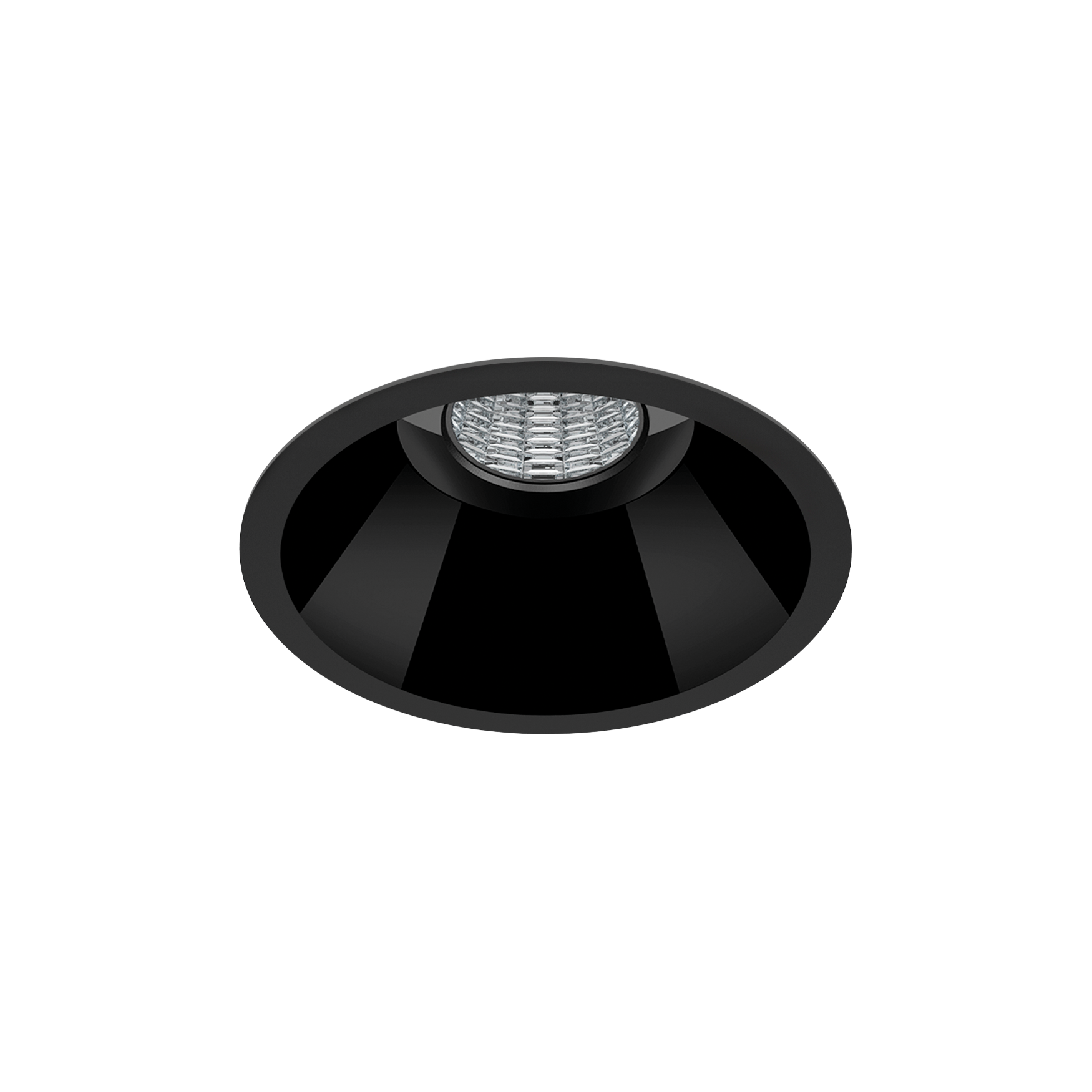

SHOT LIGHT M 1 2700K N

Reference:

A2970110N

Color:

Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

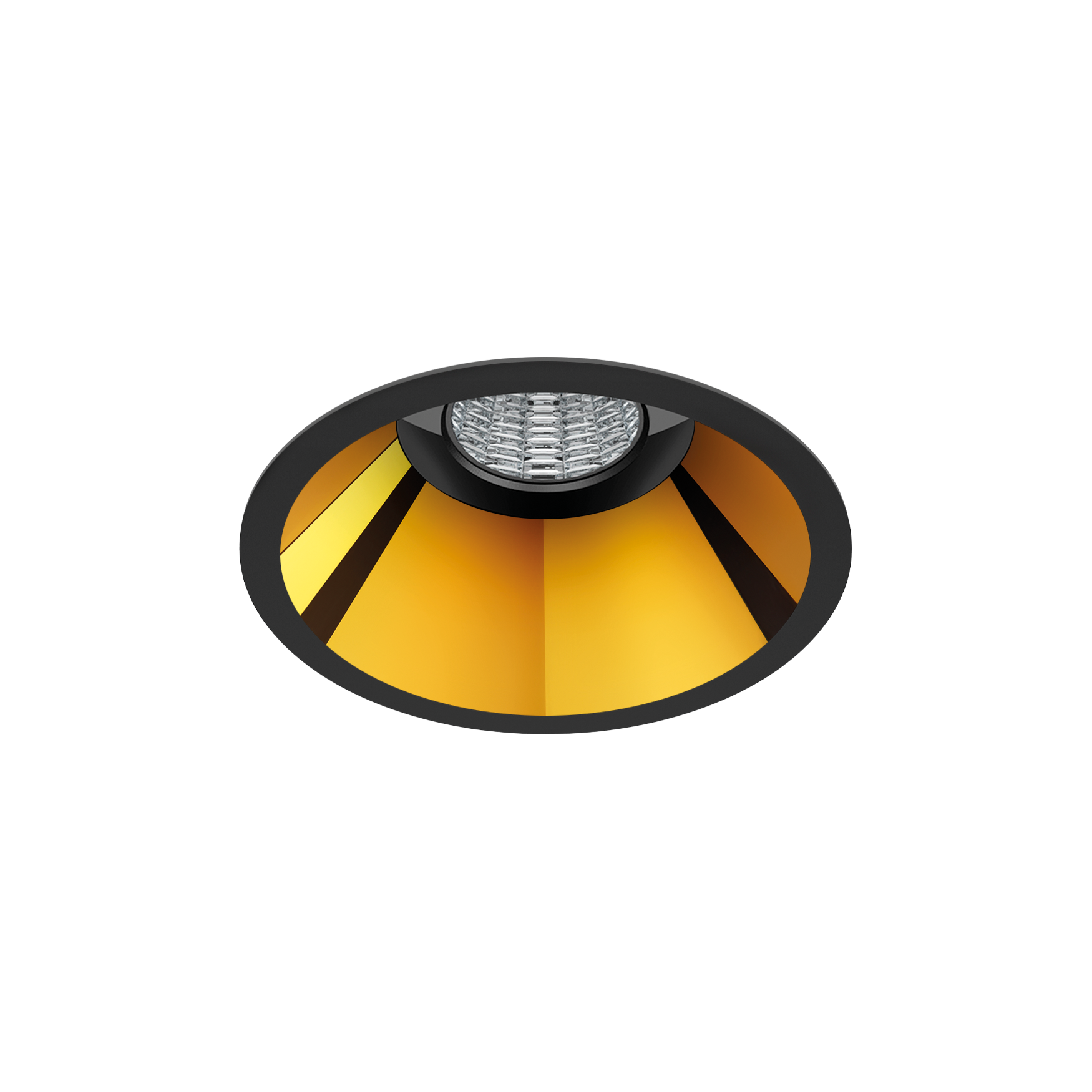

SHOT LIGHT M 1 2700K NMG

Reference:

A2970110NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

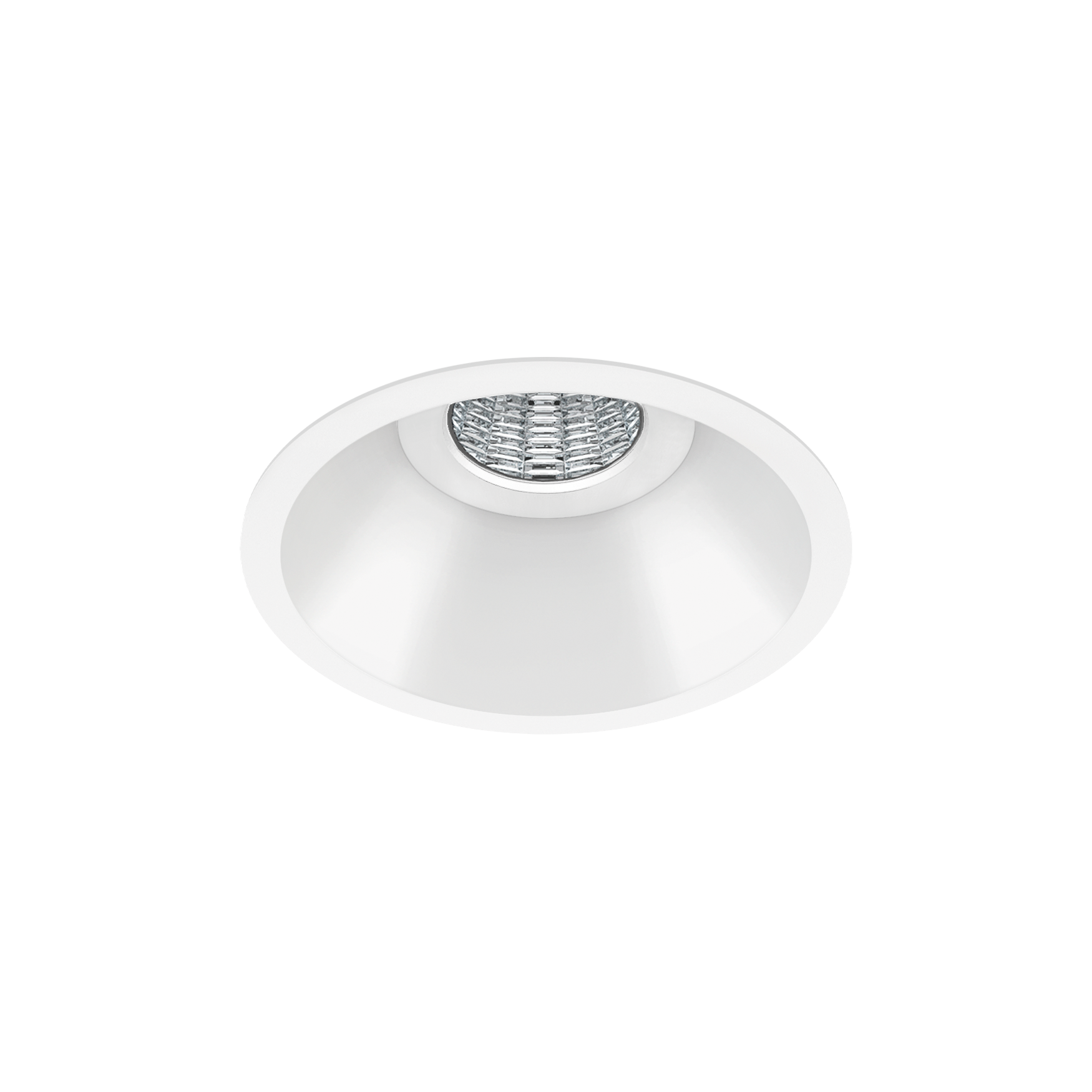

SHOT LIGHT M 1 2700K W

Reference:

A2970110W

Color:

White

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20

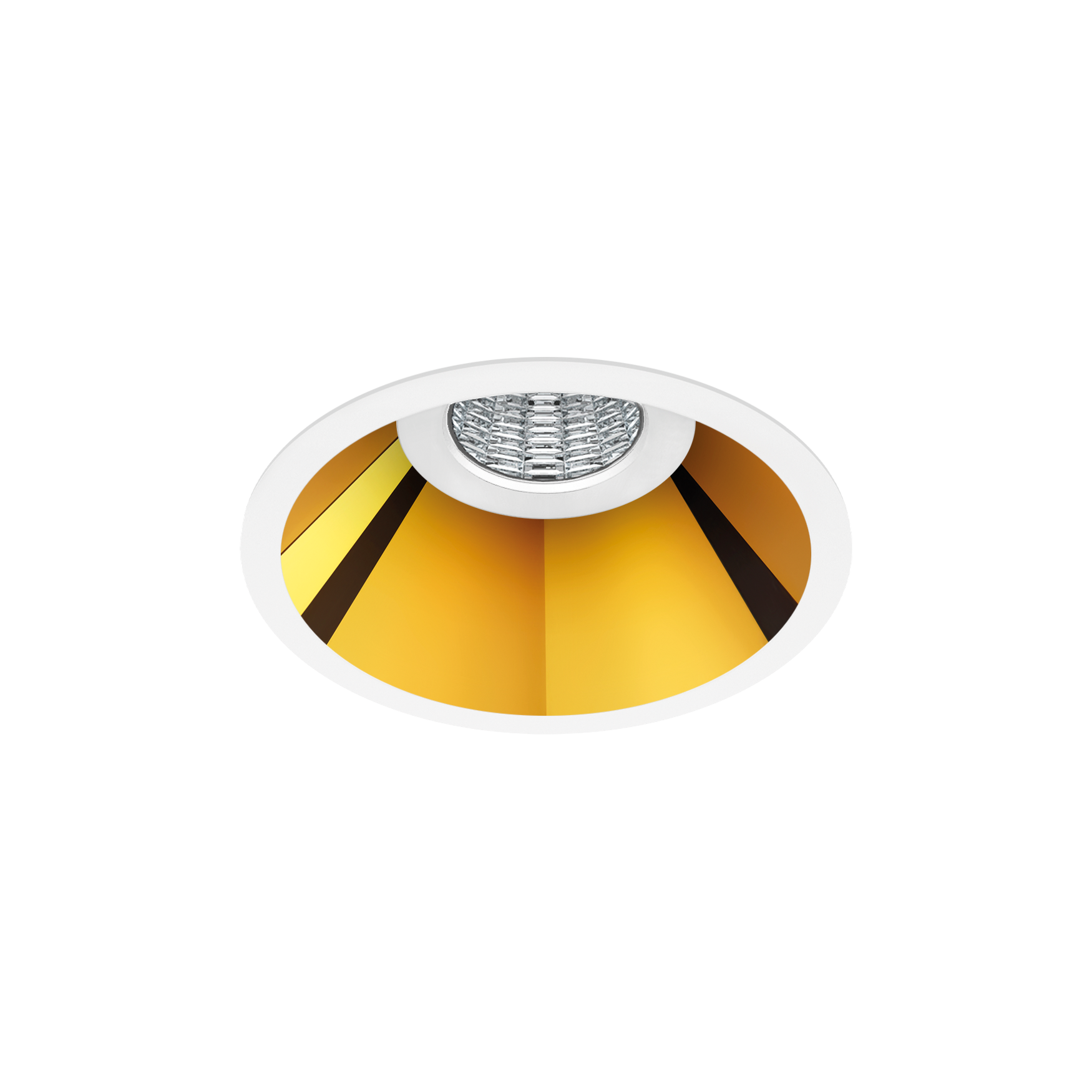

SHOT LIGHT M 1 2700K WMG

Reference:

A2970110WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 3000K N

Reference:

A2970111N

Color:

Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 3000K NMG

Reference:

A2970111NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 3000K W

Reference:

A2970111W

Color:

White

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 3000K WMG

Reference:

A2970111WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 4000K N

Reference:

A2970112N

Color:

Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 4000K NMG

Reference:

A2970112NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 4000K W

Reference:

A2970112W

Color:

White

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 1 4000K WMG

Reference:

A2970112WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 2700K N

Reference:

A2970210N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 2700K NMG

Reference:

A2970210NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 2700K W

Reference:

A2970210W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 2700K WMG

Reference:

A2970210WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 3000K N

Reference:

A2970211N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 3000K NMG

Reference:

A2970211NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 3000K W

Reference:

A2970211W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 3000K WMG

Reference:

A2970211WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 4000K N

Reference:

A2970212N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 4000K NMG

Reference:

A2970212NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 4000K W

Reference:

A2970212W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 4000K WMG

Reference:

A2970212WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 2700K N

Reference:

A2970230N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 2700K NMG

Reference:

A2970230NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 2700K W

Reference:

A2970230W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 2700K WMG

Reference:

A2970230WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 3000K N

Reference:

A2970231N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 3000K NMG

Reference:

A2970231NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 3000K W

Reference:

A2970231W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 3000K WMG

Reference:

A2970231WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 4000K N

Reference:

A2970232N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 4000K NMG

Reference:

A2970232NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 4000K W

Reference:

A2970232W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM DALI/PUSH 4000K WMG

Reference:

A2970232WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 2700K N

Reference:

A2970250N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 2700K NMG

Reference:

A2970250NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 2700K W

Reference:

A2970250W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 2700K WMG

Reference:

A2970250WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 3000K N

Reference:

A2970251N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 3000K NMG

Reference:

A2970251NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 3000K W

Reference:

A2970251W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 3000K WMG

Reference:

A2970251WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 4000K N

Reference:

A2970252N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 4000K NMG

Reference:

A2970252NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 4000K W

Reference:

A2970252W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 2 DIM PH.CUT 4000K WMG

Reference:

A2970252WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 2700K N

Reference:

A2970310N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 2700K NMG

Reference:

A2970310NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 2700K W

Reference:

A2970310W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 2700K WMG

Reference:

A2970310WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 3000K N

Reference:

A2970311N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 3000K NMG

Reference:

A2970311NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 3000K W

Reference:

A2970311W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 3000K WMG

Reference:

A2970311WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 4000K N

Reference:

A2970312N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 4000K NMG

Reference:

A2970312NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 4000K W

Reference:

A2970312W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 4000K WMG

Reference:

A2970312WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 2700K N

Reference:

A2970330N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 2700K NMG

Reference:

A2970330NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 2700K W

Reference:

A2970330W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 2700K WMG

Reference:

A2970330WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 3000K N

Reference:

A2970331N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 3000K NMG

Reference:

A2970331NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 3000K W

Reference:

A2970331W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 3000K WMG

Reference:

A2970331WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 4000K N

Reference:

A2970332N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 4000K NMG

Reference:

A2970332NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 4000K W

Reference:

A2970332W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM DALI/PUSH 4000K WMG

Reference:

A2970332WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

DALI / Push

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 2700K N

Reference:

A2970350N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 2700K NMG

Reference:

A2970350NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 2700K W

Reference:

A2970350W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 2700K WMG

Reference:

A2970350WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 3000K N

Reference:

A2970351N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 3000K NMG

Reference:

A2970351NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 3000K W

Reference:

A2970351W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 3000K WMG

Reference:

A2970351WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 4000K N

Reference:

A2970352N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 4000K NMG

Reference:

A2970352NMG

Color:

Black-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 4000K W

Reference:

A2970352W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M 3 DIM PH.CUT 4000K WMG

Reference:

A2970352WMG

Color:

White-Metallized gold

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

86%

Dimming:

Phase Cut

Sealing:

IP20
SHOT LIGHT M IP65 1 2700K N

Reference:

A2972110N

Color:

Black

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 1 2700K W

Reference:

A2972110W

Color:

White

Light source:

LED

Luminous flux:

675 lm

Power:

5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 1 3000K N

Reference:

A2972111N

Color:

Black

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 1 3000K W

Reference:

A2972111W

Color:

White

Light source:

LED

Luminous flux:

700 lm

Power:

5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 1 4000K N

Reference:

A2972112N

Color:

Black

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 1 4000K W

Reference:

A2972112W

Color:

White

Light source:

LED

Luminous flux:

710 lm

Power:

5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 2700K N

Reference:

A2972210N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 2700K W

Reference:

A2972210W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 3000K N

Reference:

A2972211N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 3000K W

Reference:

A2972211W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 4000K N

Reference:

A2972212N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 4000K W

Reference:

A2972212W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 2700K N

Reference:

A2972230N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 2700K W

Reference:

A2972230W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 3000K N

Reference:

A2972231N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 3000K W

Reference:

A2972231W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 4000K N

Reference:

A2972232N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM DALI/PUSH 4000K W

Reference:

A2972232W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 2700K N

Reference:

A2972250N

Color:

Black

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 2700K W

Reference:

A2972250W

Color:

White

Light source:

LED

Luminous flux:

910 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 3000K N

Reference:

A2972251N

Color:

Black

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 3000K W

Reference:

A2972251W

Color:

White

Light source:

LED

Luminous flux:

940 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 4000K N

Reference:

A2972252N

Color:

Black

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 2 DIM PH.CUT 4000K W

Reference:

A2972252W

Color:

White

Light source:

LED

Luminous flux:

960 lm

Power:

6,5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 2700K N

Reference:

A2972310N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 2700K W

Reference:

A2972310W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 3000K N

Reference:

A2972311N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 3000K W

Reference:

A2972311W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 4000K N

Reference:

A2972312N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 4000K W

Reference:

A2972312W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

No Dim

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 2700K N

Reference:

A2972330N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 2700K W

Reference:

A2972330W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 3000K N

Reference:

A2972331N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 3000K W

Reference:

A2972331W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 4000K N

Reference:

A2972332N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM DALI/PUSH 4000K W

Reference:

A2972332W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

DALI / Push

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 2700K N

Reference:

A2972350N

Color:

Black

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 2700K W

Reference:

A2972350W

Color:

White

Light source:

LED

Luminous flux:

1230 lm

Power:

10,3 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 3000K N

Reference:

A2972351N

Color:

Black

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 3000K W

Reference:

A2972351W

Color:

White

Light source:

LED

Luminous flux:

1280 lm

Power:

10,3 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 4000K N

Reference:

A2972352N

Color:

Black

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65
SHOT LIGHT M IP65 3 DIM PH.CUT 4000K W

Reference:

A2972352W

Color:

White

Light source:

LED

Luminous flux:

1300 lm

Power:

10,3 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

37°

Lighting efficiency:

78%

Dimming:

Phase Cut

Sealing:

IP65

Accessories

HIGH CHROMATIC LED

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Name

This field is for validation purposes and should be left unchanged.

Shot Light

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

If Product Design Award 2017 Winner

Delta Award Selection 2018

European Product Design Winner 2022

Shot Light M

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

Swap

Lex

Olympia

Deep

Related projects

Mara House

Brassa de Mar

Casacuberta

All in One – Caixabank

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
