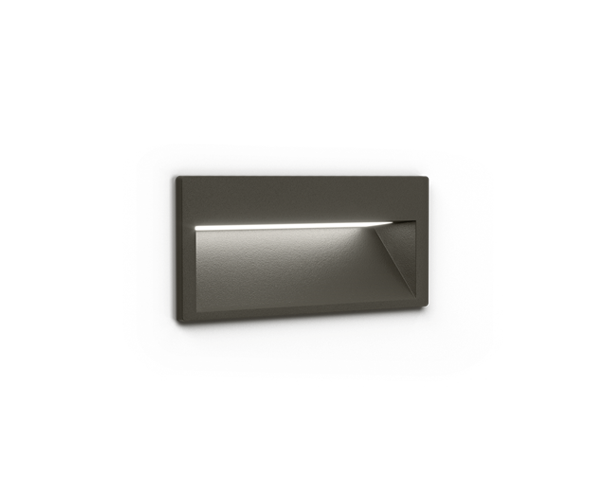

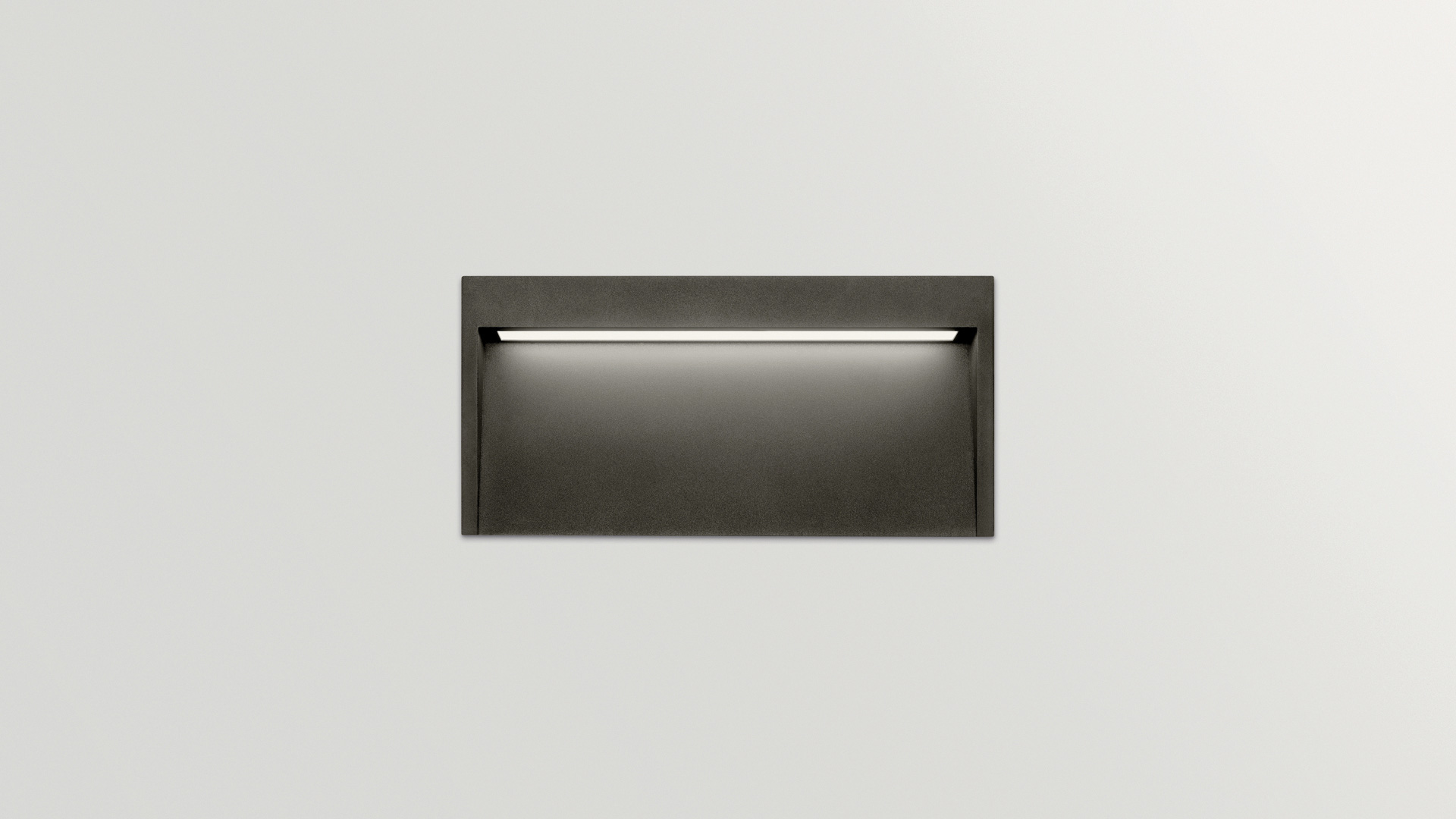

Slim

OUTDOOR

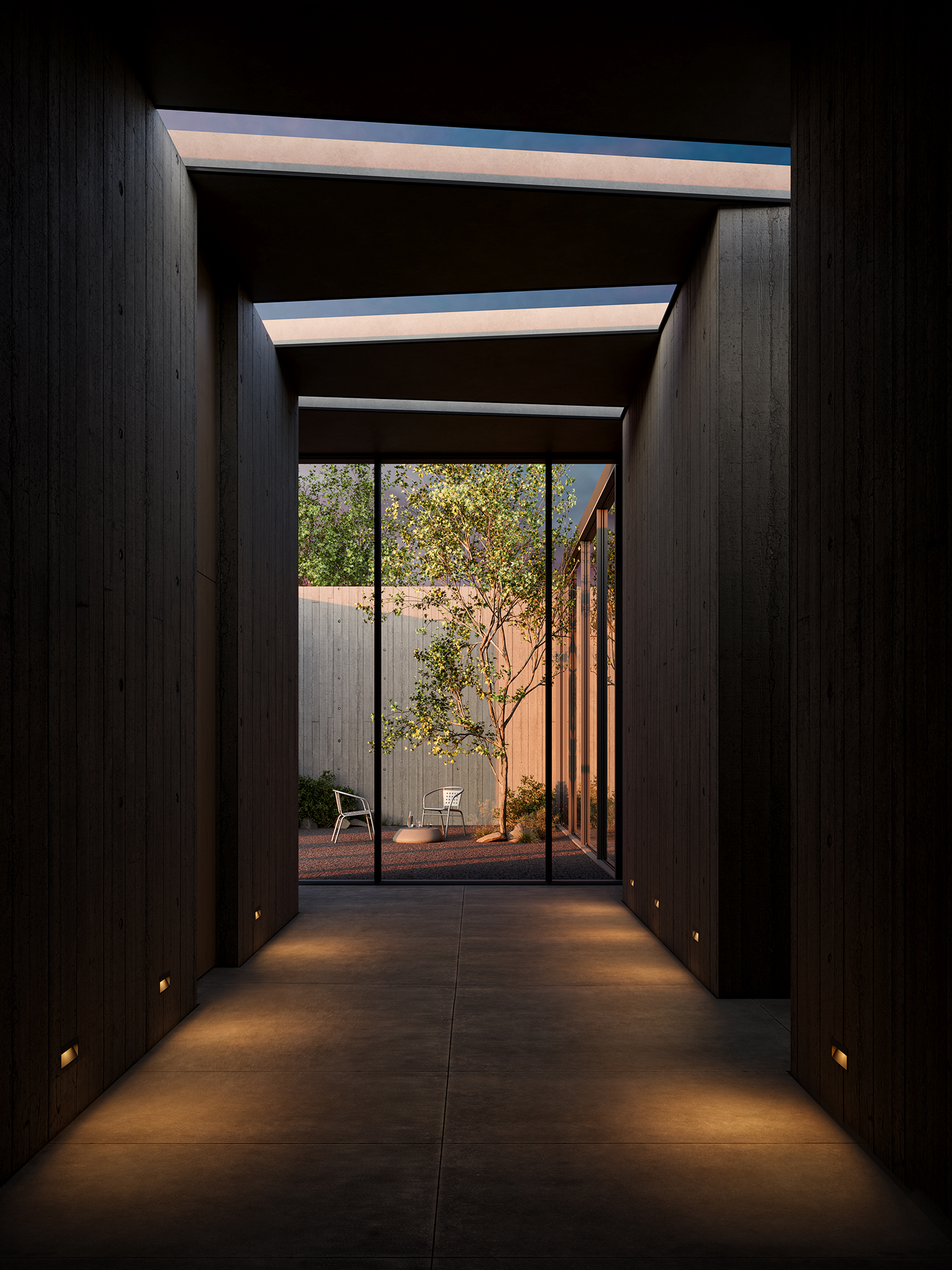

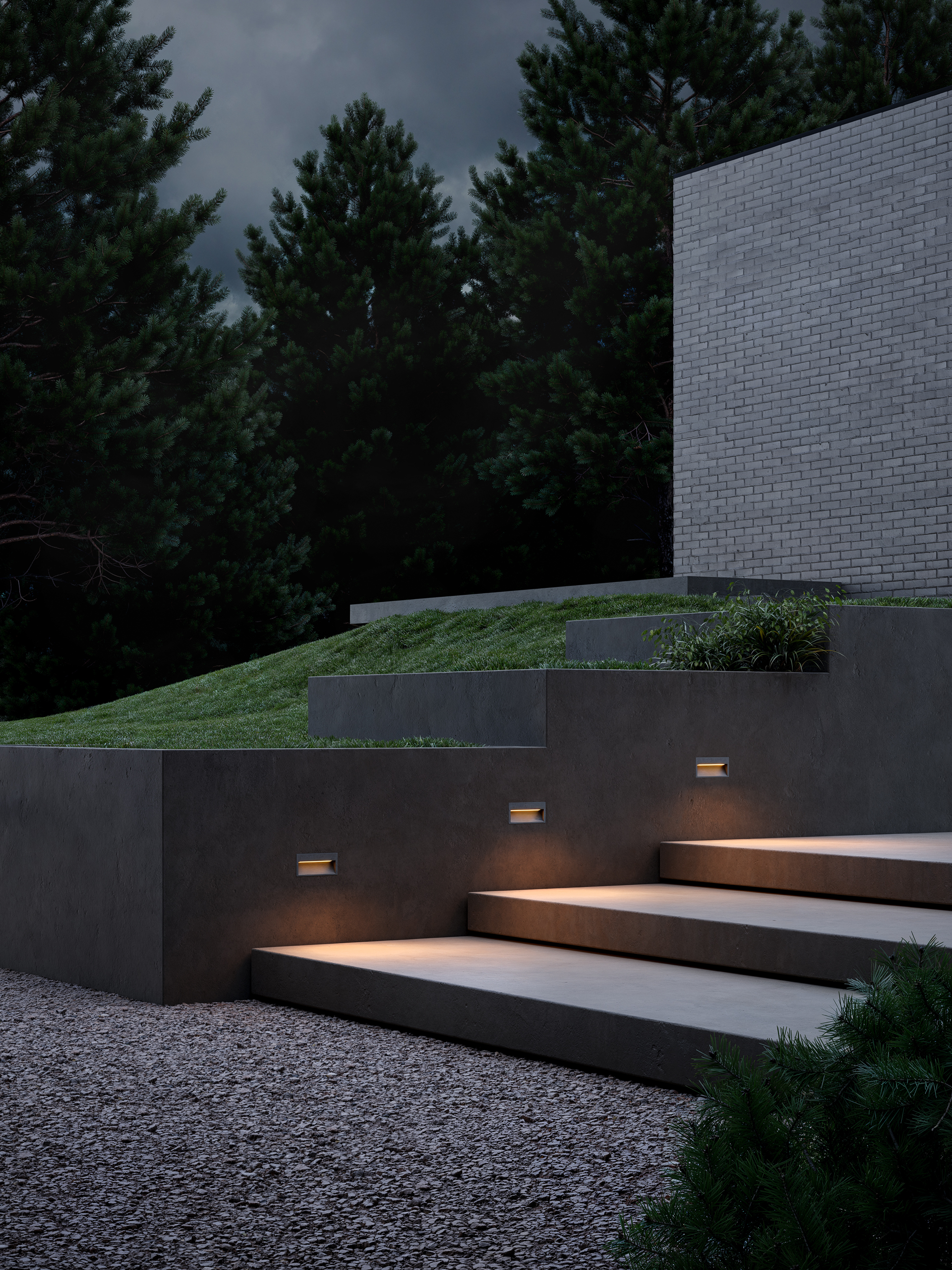

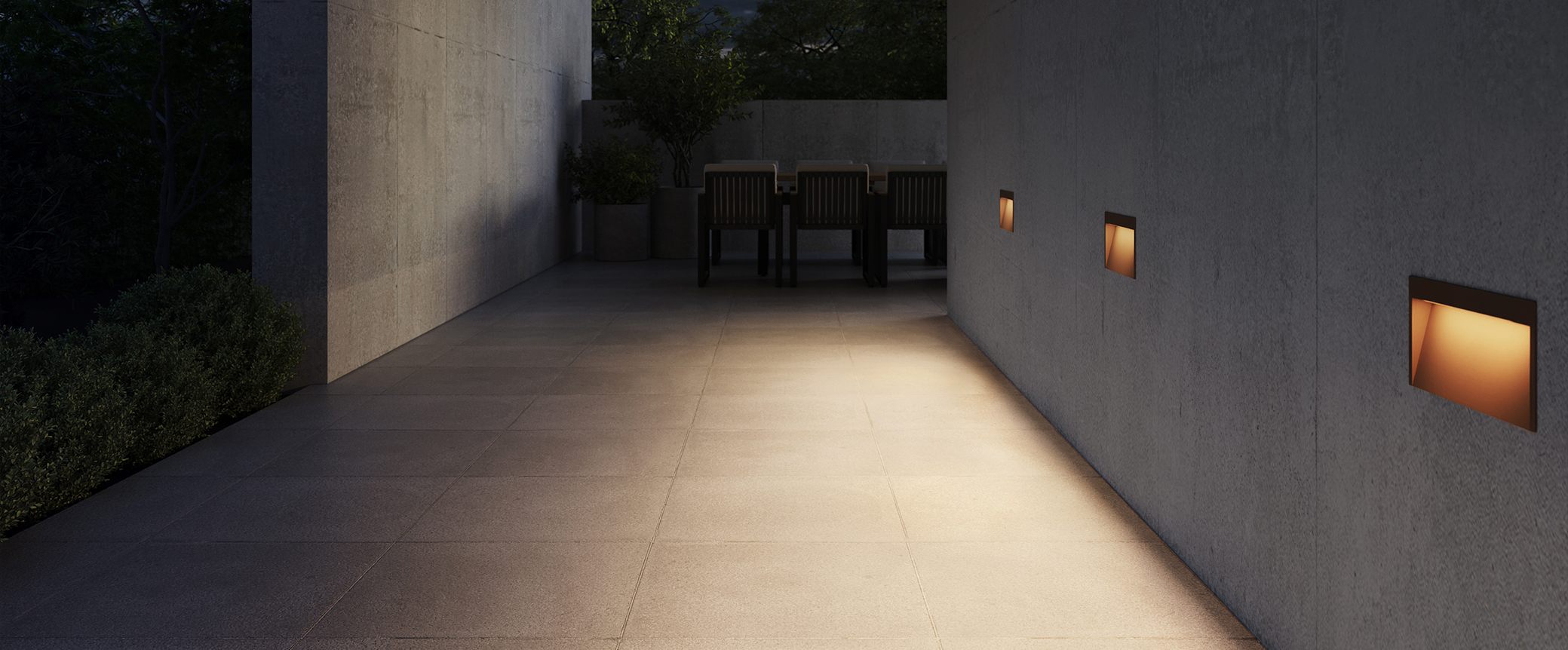

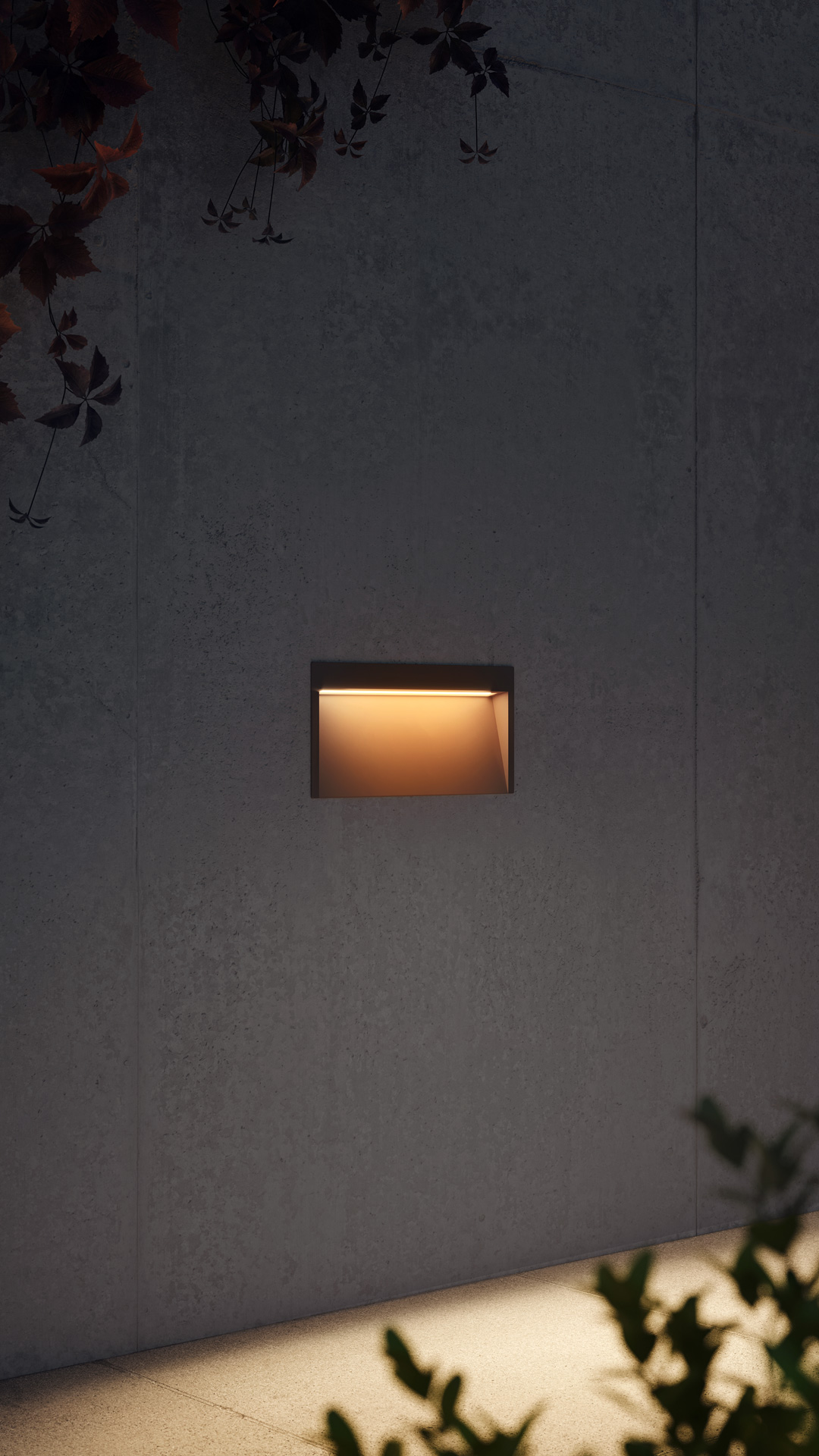

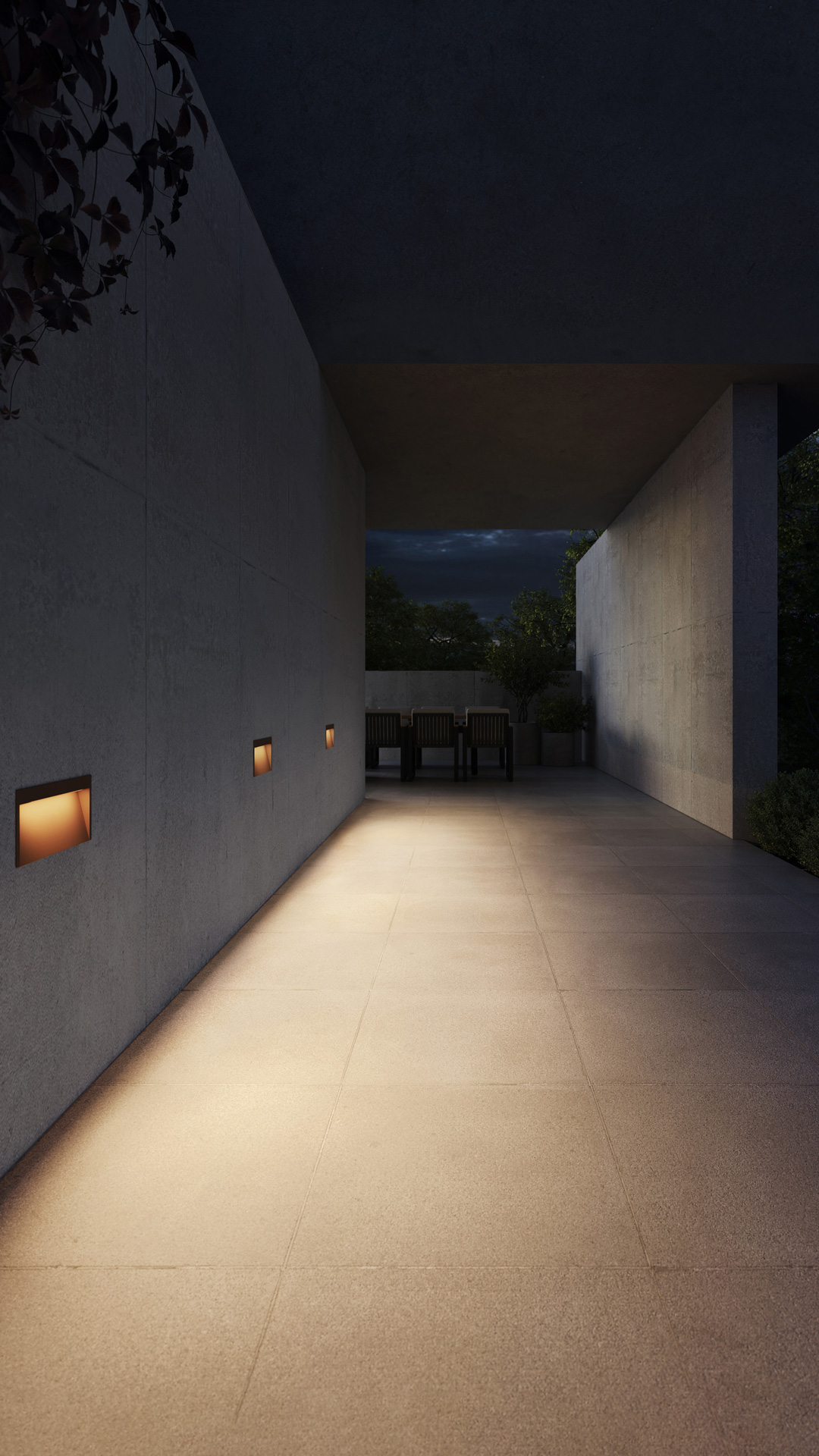

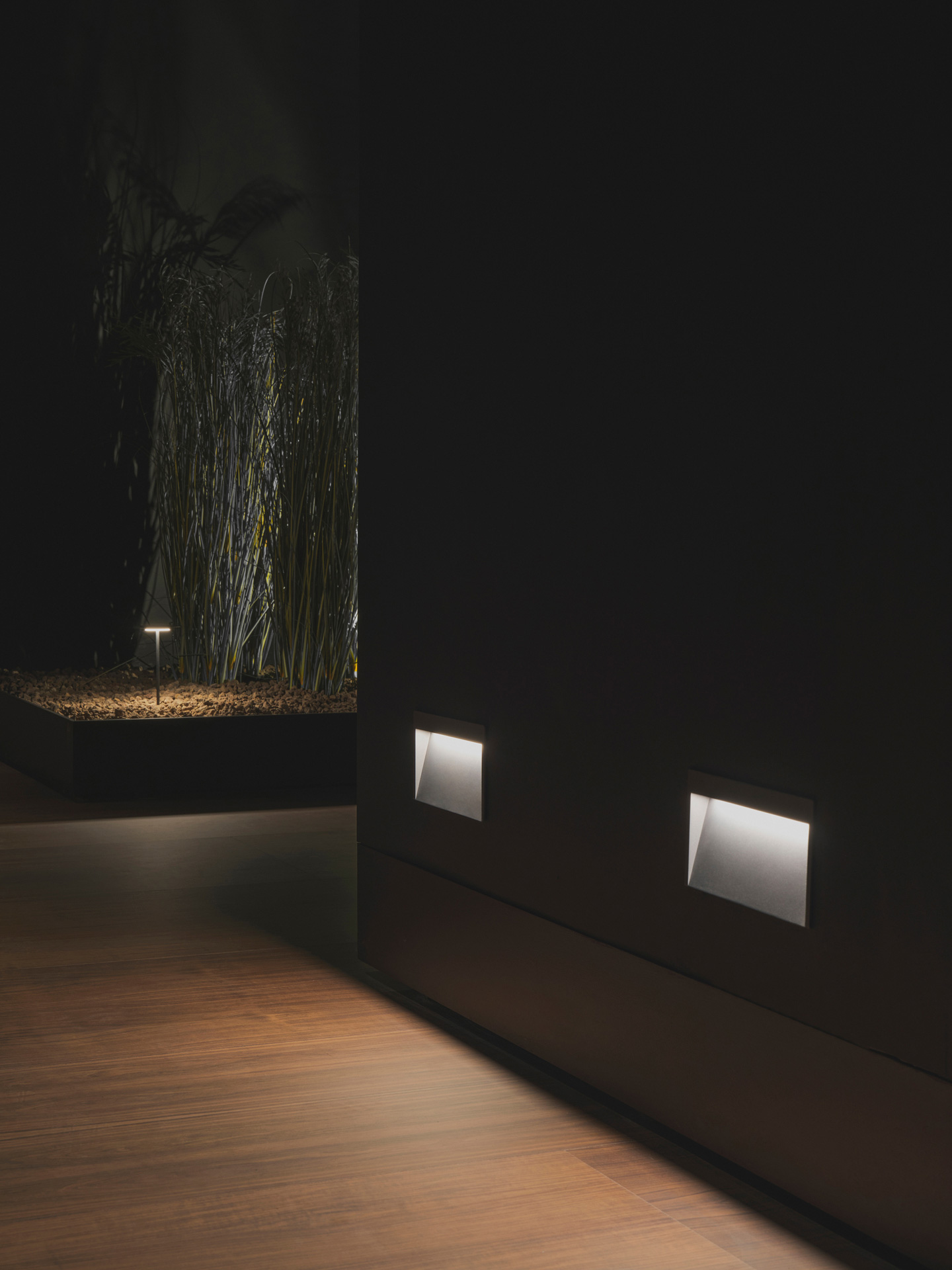

With the aim of offering new creative tools to the lighting designer, the Slim collection arrives outdoors as an exceptional floor washer. The work on the optics and its markedly thin and elongated body project a constant and homogeneous vertical light. In the middle of the night, Slim allows us to dream of daytime atmospheres where light finds no limits or conditions. A comfortable illumination that marks our transit and avoids the classic shadows between luminaires and the edges of the path, uniformly bathing the ground from its confluence with the perpendicular.

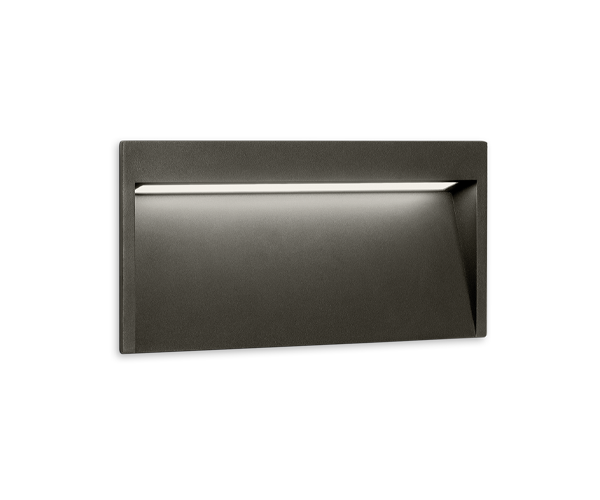

Slim

  • Luminous flux

    975 lm / 1000 lm

  • Lighting efficiency

    24% / 40%

  • Power

    6,8 W

  • Dimming

    No Dim, DALI

  • Color temperature

    2700K / 3000K

  • Sealing

    IP65

  • Chromatic stability

    MacAdam Step 2

  • Recess measurements

    254 x 122mm

  • Light beam angle

    75°

Instructions BIM
Luminous Flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • CRI
      Light beam angle
        Dimming
          Sealing
            Cord length
              Distance of suspension
                Base Finishing
                  Color

                    • Model

                      Ref.

                      Color

                      Source

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      Sealing

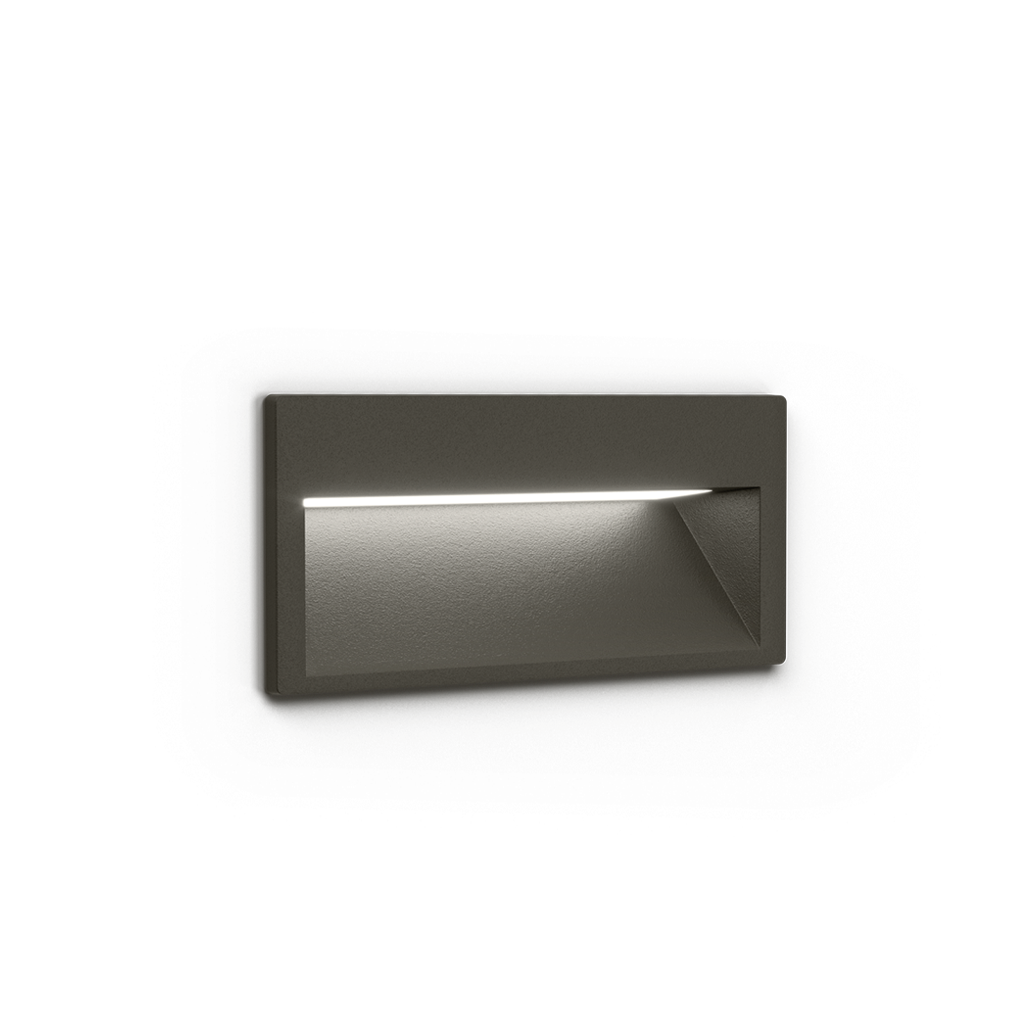

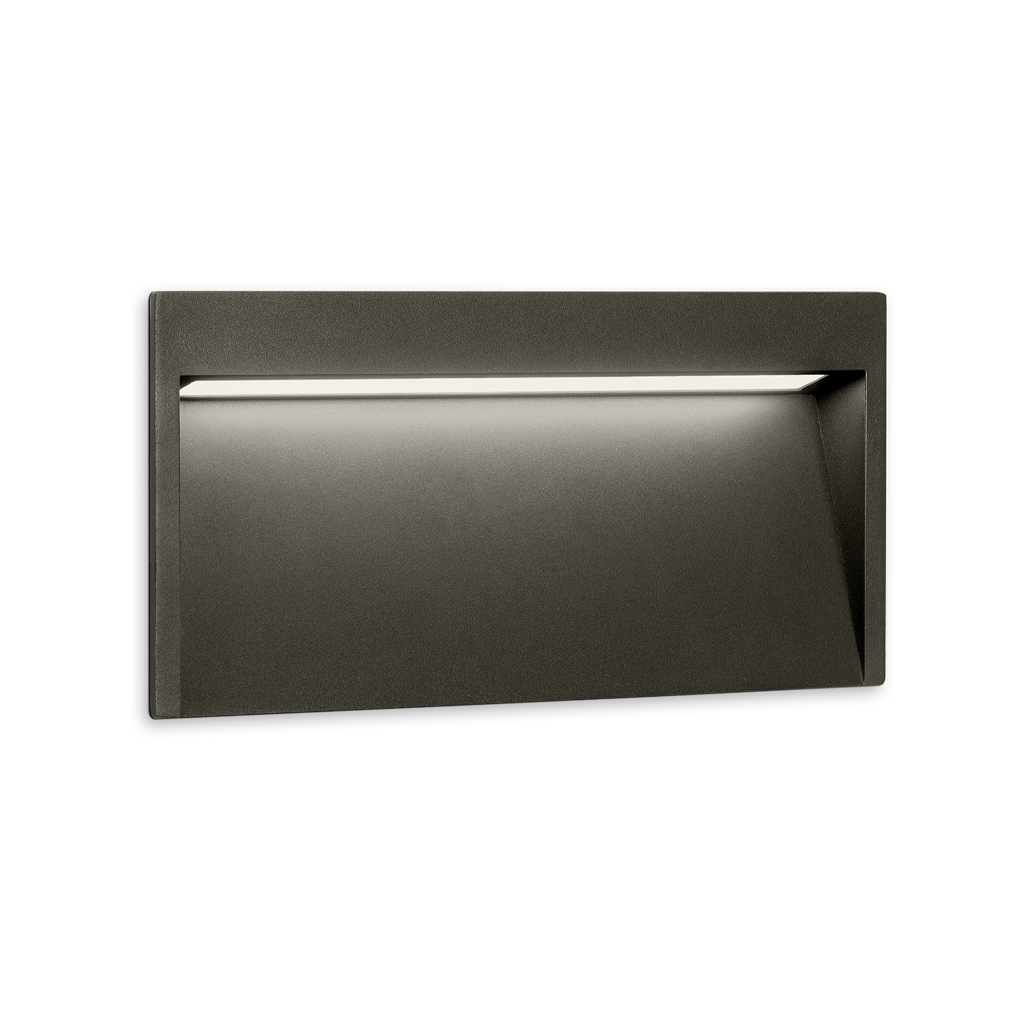

                    • SLIM 2700K GT
                      Reference:

                      A5150010GT

                      Color:

                      Textured grey

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

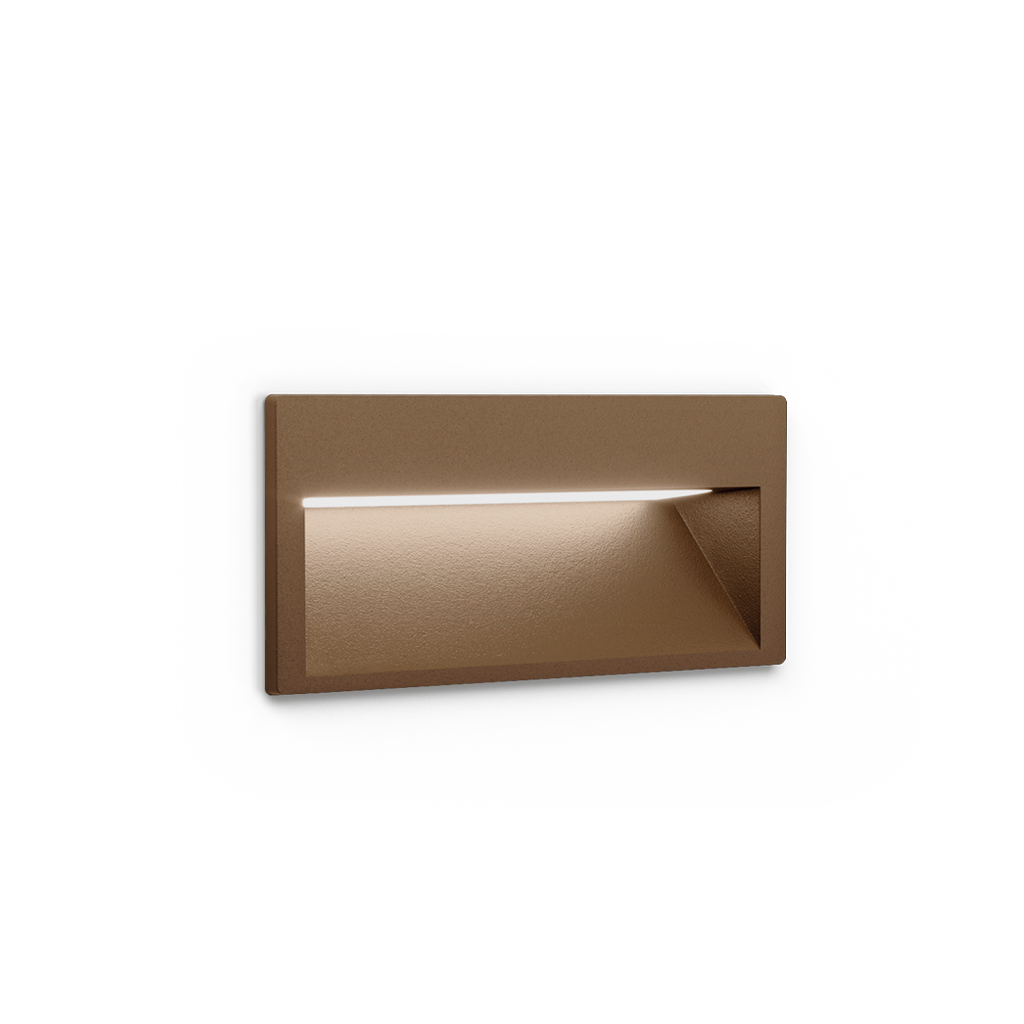

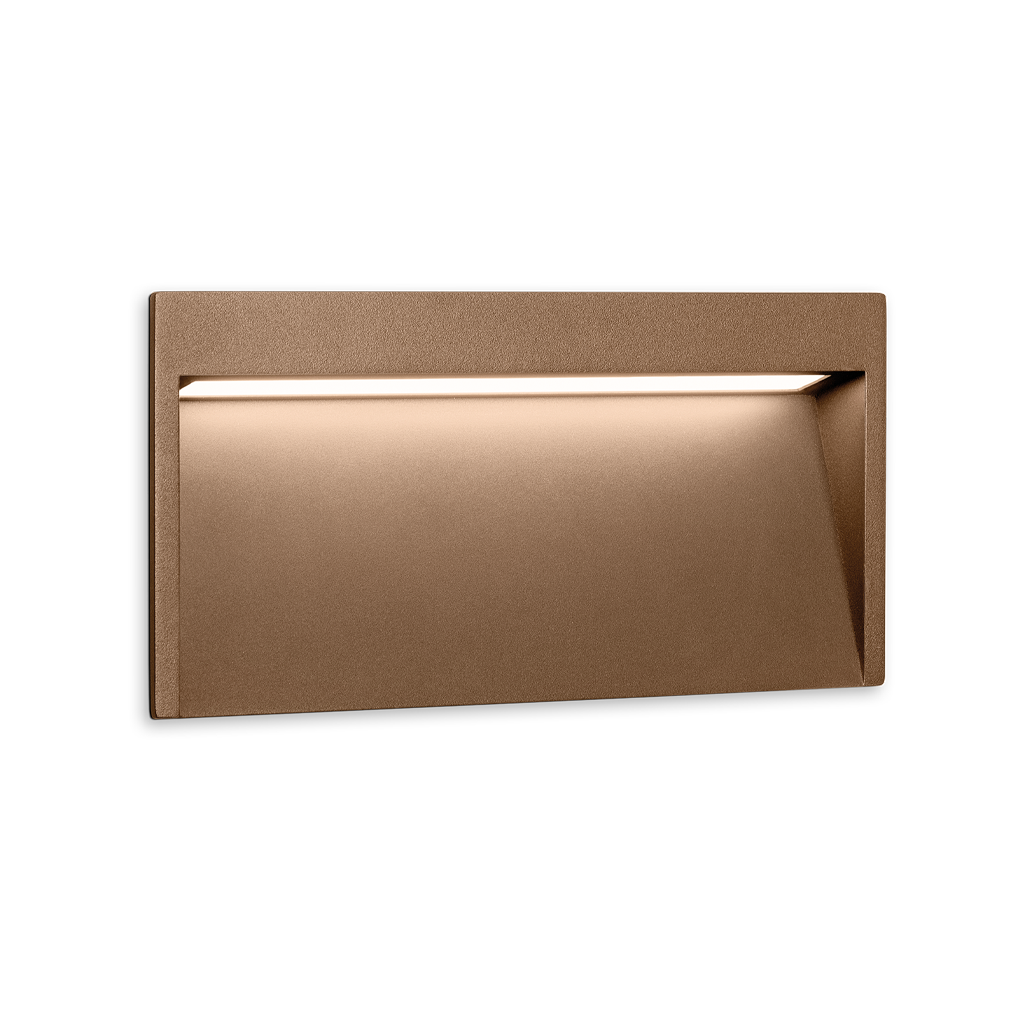

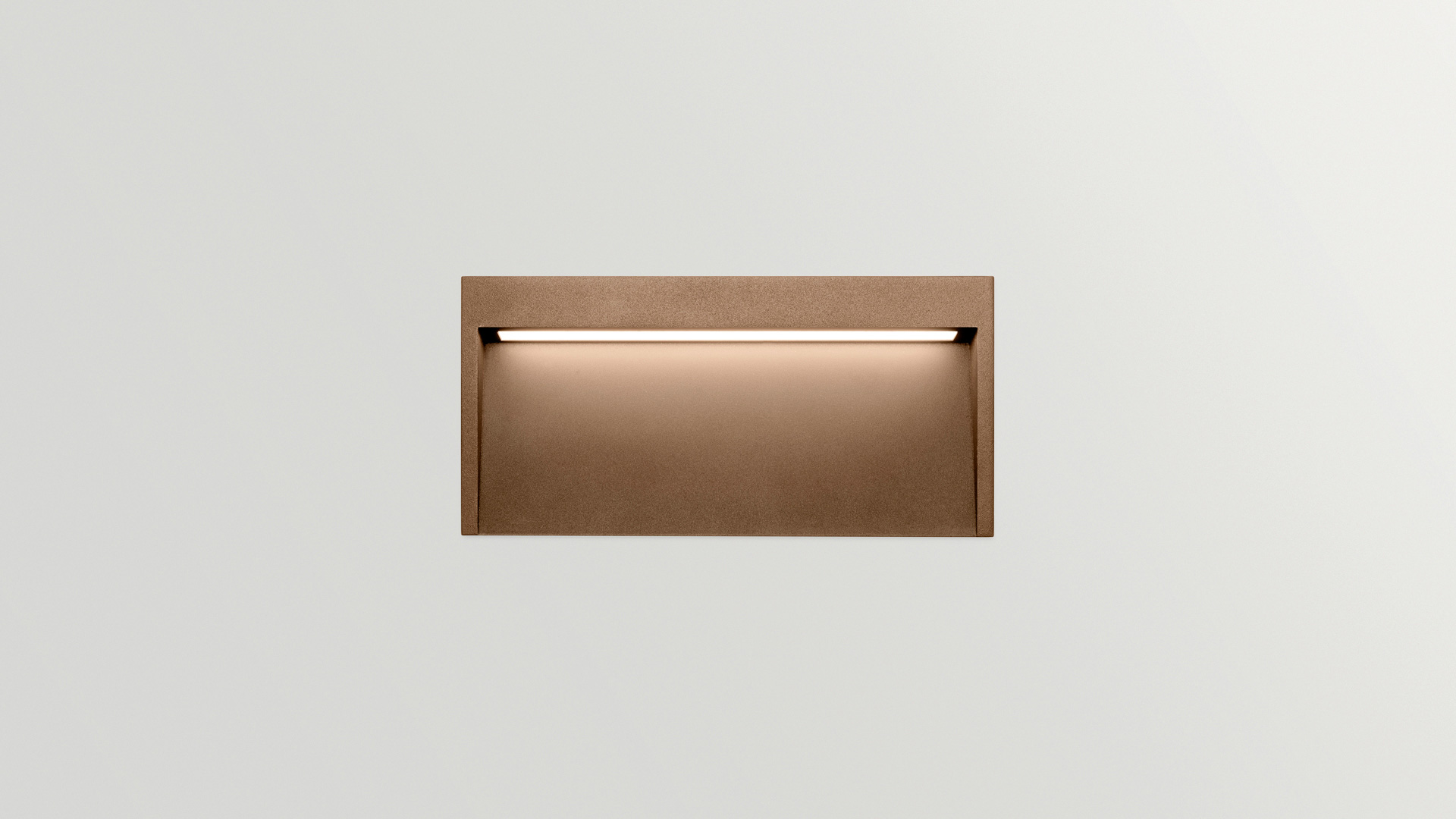

                    • SLIM 2700K OX
                      Reference:

                      A5150010OX

                      Color:

                      Textured oxidon

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

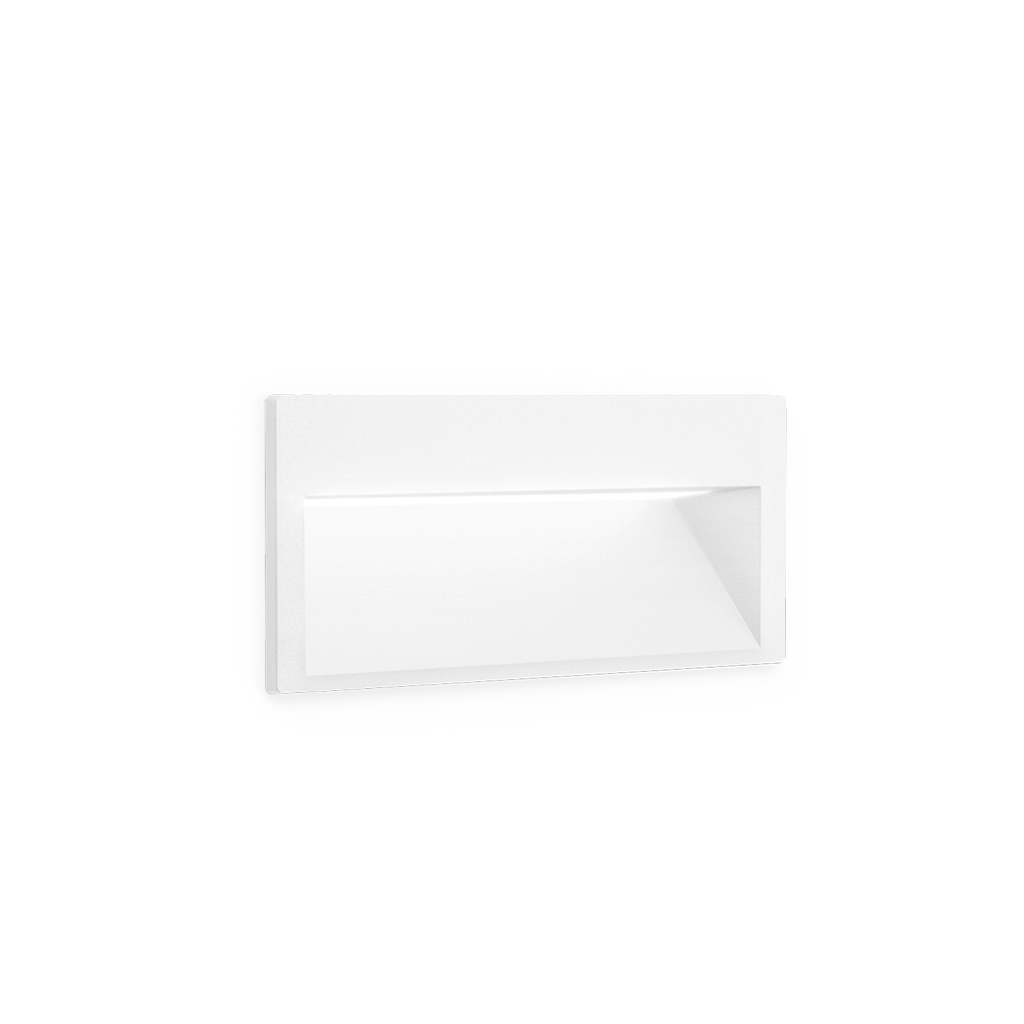

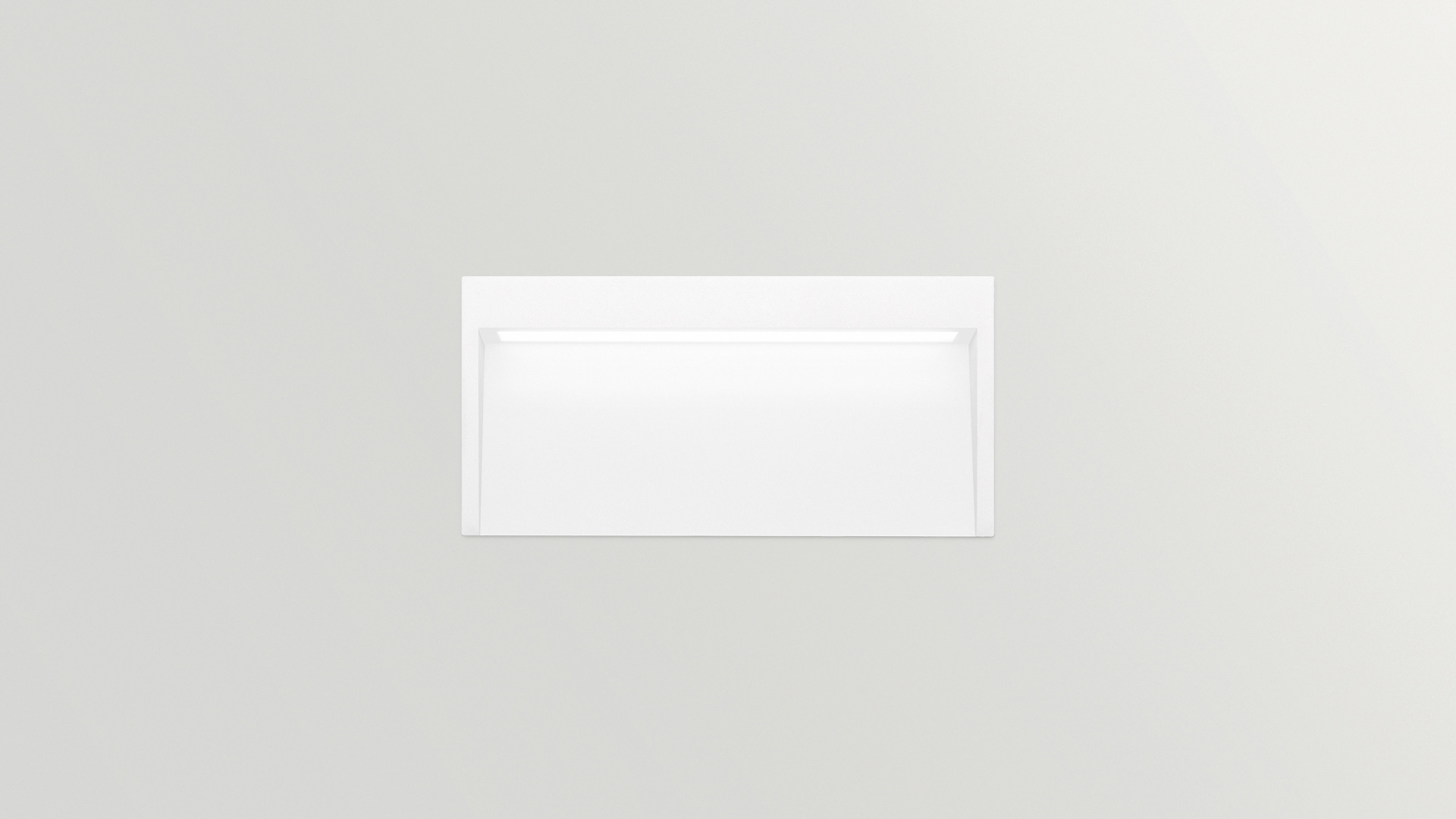

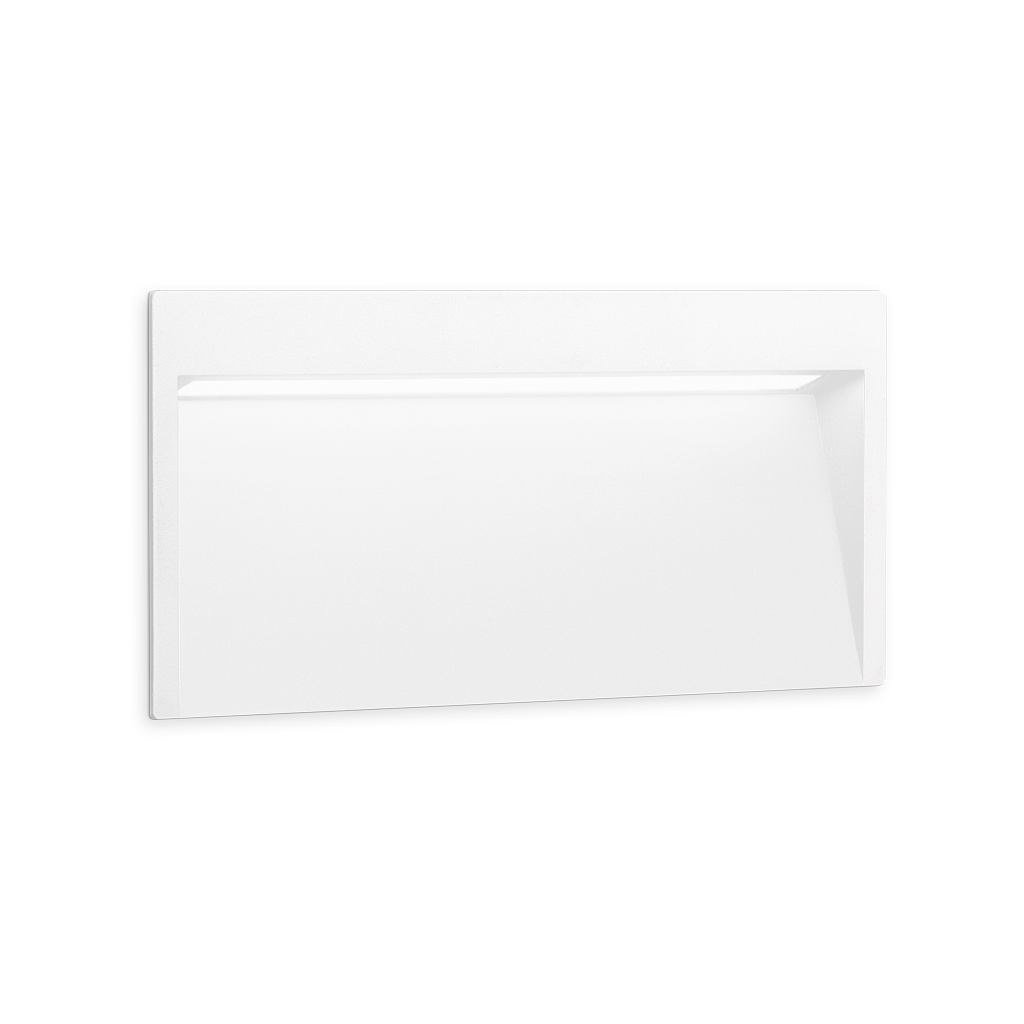

                    • SLIM 2700K WT
                      Reference:

                      A5150010WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      40%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

                    • SLIM 3000K GT
                      Reference:

                      A5150011GT

                      Color:

                      Textured grey

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

                    • SLIM 3000K OX
                      Reference:

                      A5150011OX

                      Color:

                      Textured oxidon

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

                    • SLIM 3000K WT
                      Reference:

                      A5150011WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      40%

                      Dimming:

                      No Dim

                      Sealing:

                      IP65

                    • SLIM DIM DALI 2700K GT
                      Reference:

                      A5150020GT

                      Color:

                      Textured grey

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    • SLIM DIM DALI 2700K OX
                      Reference:

                      A5150020OX

                      Color:

                      Textured oxidon

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    • SLIM DIM DALI 2700K WT
                      Reference:

                      A5150020WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      975 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      40%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    • SLIM DIM DALI 3000K GT
                      Reference:

                      A5150021GT

                      Color:

                      Textured grey

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    • SLIM DIM DALI 3000K OX
                      Reference:

                      A5150021OX

                      Color:

                      Textured oxidon

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      24%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    • SLIM DIM DALI 3000K WT
                      Reference:

                      A5150021WT

                      Color:

                      Textured white

                      Light source:

                      LED

                      Luminous flux:

                      1000 lm

                      Power:

                      6,8 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      75°

                      Lighting efficiency:

                      40%

                      Dimming:

                      DALI

                      Sealing:

                      IP65

                    Accessories

                    CONCRETE BOX ACCESSORY
