Top Micro 24V

TRACK LIGHTS

Top Micro 24V is miniaturized luminary that serves as a downlight for the Minimal Track system. Its reduced dimensions make Top the perfect candidate for projects where a discrete precense and a perfect integration are needed. It is a pure line and an architectural aesthetic design. Moreover, in terms of lighting performance, Top offers a conical distribution with two possible beam angles.

Awards

  • Red Dot Award Innovate Product 2020

    Red Dot Award Innovate Product 2020

  • Red Dot Award Lighting Design 2020

    Red Dot Award Lighting Design 2020

  • Delta Awards´20 Bronze

    Delta Awards´20 Bronze

  • European Product Design 2020 Honorable Mention

    European Product Design 2020 Honorable Mention

  • Fx International Interior Design Award

    Fx International Interior Design Award

  • Archiproduct Design Award Winner 2020

    Archiproduct Design Award Winner 2020

  • Adcv Oro 2022

    Adcv Oro 2022

Top Micro 24V

  • Luminous flux

    190 lm / 210 lm

  • Lighting efficiency

    90% / 92%

  • Power

    2,1 W

  • Dimming

    DIM options

  • Color temperature

    2700K / 3000K

  • Sealing

    IP20

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    19° / 38°

Custom configuration
Instructions BIM Brochure
Luminous Flux
    • Colour temperature
    • Lighting efficiency
    • Light beam angle
    Color

    • Model

      Ref.

      Color

      Source

      Lum. flux

      Power

      Temp.

      CRI

      Beam angle

      Efficiency

      Dimming

      Sealing

    • TOP MICRO 24V 19º 2700K NT
      Reference:

      A3830010NT

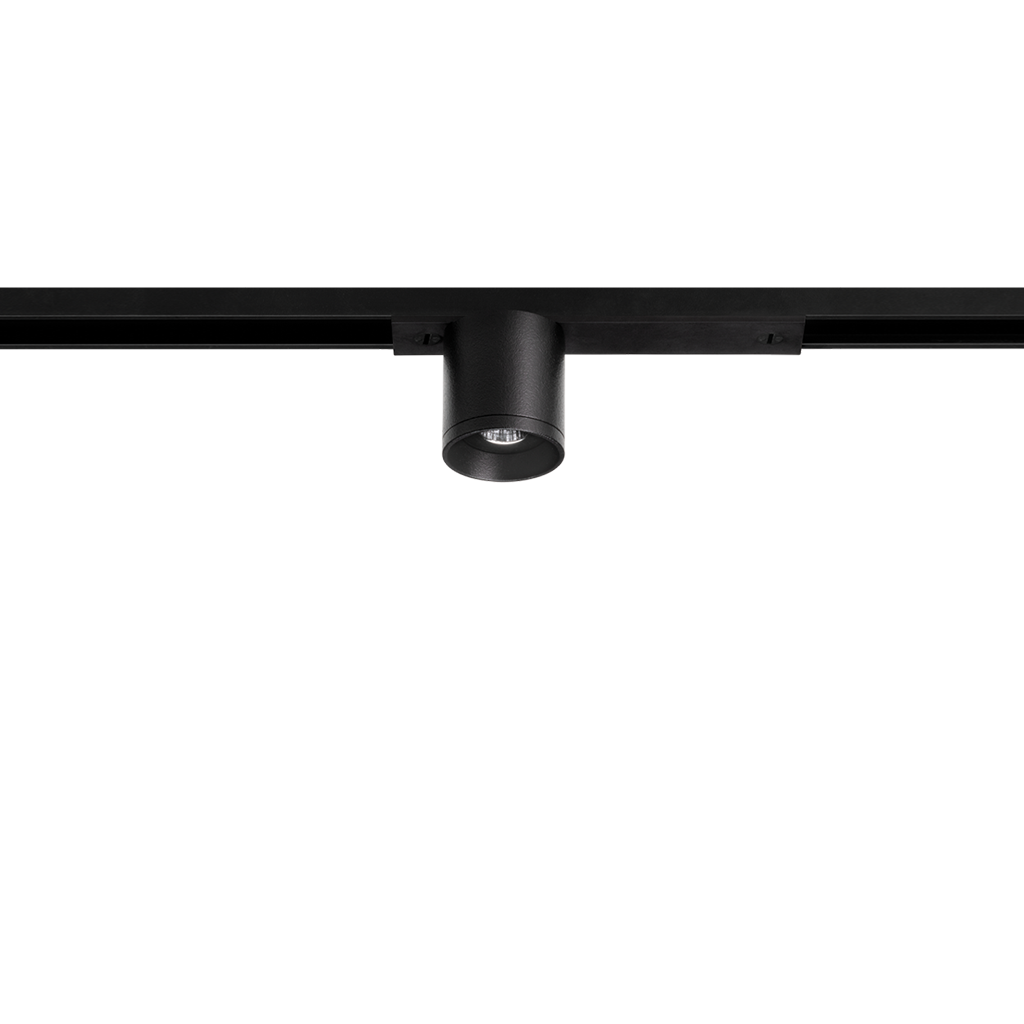

      Color:

      Textured black

      Light source:

      LED

      Luminous flux:

      190 lm

      Power:

      2,1 W

      Colour temperature:

      2700K

      CRI:

      CRI>90

      Light beam angle:

      19°

      Lighting efficiency:

      90%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 19º 2700K WT
      Reference:

      A3830010WT

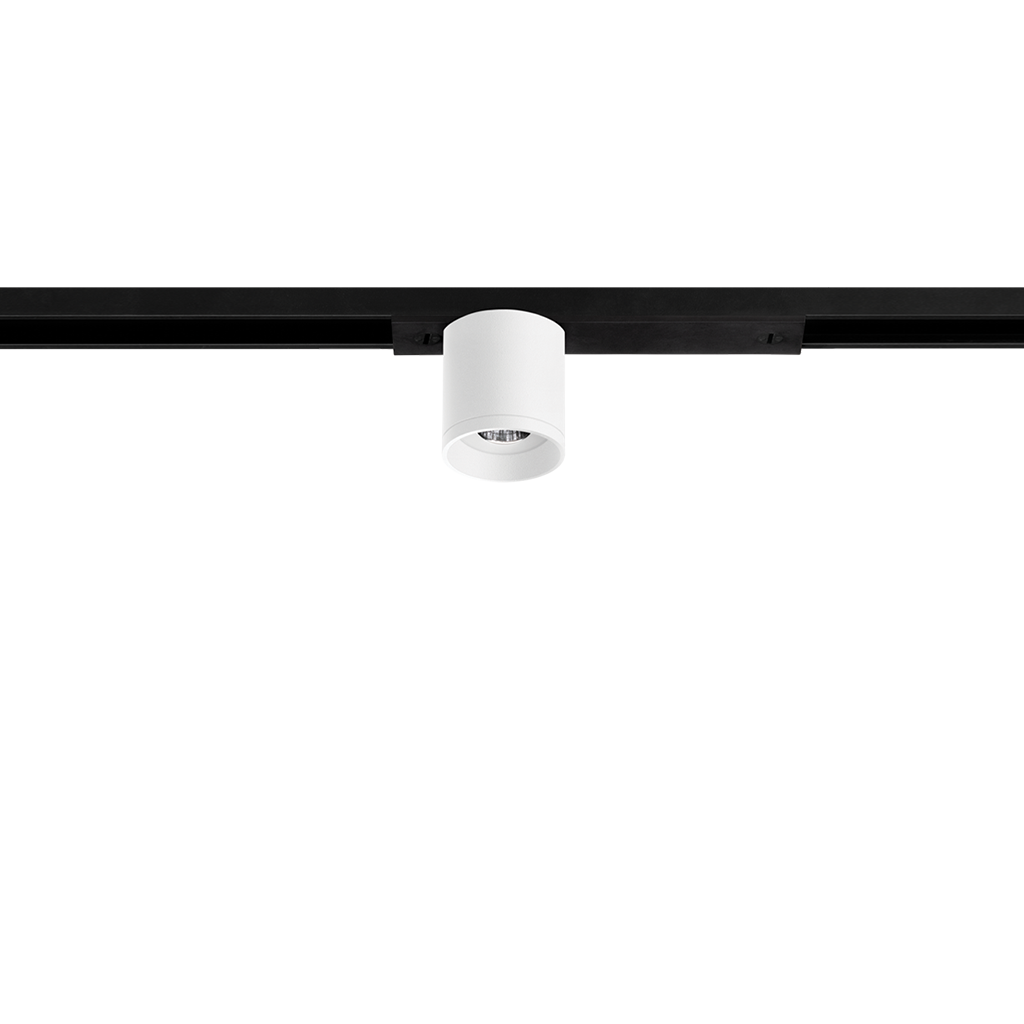

      Color:

      Textured white

      Light source:

      LED

      Luminous flux:

      190 lm

      Power:

      2,1 W

      Colour temperature:

      2700K

      CRI:

      CRI>90

      Light beam angle:

      19°

      Lighting efficiency:

      90%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 19º 3000K NT
      Reference:

      A3830011NT

      Color:

      Textured black

      Light source:

      LED

      Luminous flux:

      210 lm

      Power:

      2,1 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      19°

      Lighting efficiency:

      90%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 19º 3000K WT
      Reference:

      A3830011WT

      Color:

      Textured white

      Light source:

      LED

      Luminous flux:

      210 lm

      Power:

      2,1 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      19°

      Lighting efficiency:

      90%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 38º 2700K NT
      Reference:

      A3830020NT

      Color:

      Textured black

      Light source:

      LED

      Luminous flux:

      190 lm

      Power:

      2,1 W

      Colour temperature:

      2700K

      CRI:

      CRI>90

      Light beam angle:

      38°

      Lighting efficiency:

      92%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 38º 2700K WT
      Reference:

      A3830020WT

      Color:

      Textured white

      Light source:

      LED

      Luminous flux:

      190 lm

      Power:

      2,1 W

      Colour temperature:

      2700K

      CRI:

      CRI>90

      Light beam angle:

      38°

      Lighting efficiency:

      92%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 38º 3000K NT
      Reference:

      A3830021NT

      Color:

      Textured black

      Light source:

      LED

      Luminous flux:

      210 lm

      Power:

      2,1 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      38°

      Lighting efficiency:

      92%

      Dimming:

      DIM options

      Sealing:

      IP20

    • TOP MICRO 24V 38º 3000K WT
      Reference:

      A3830021WT

      Color:

      Textured white

      Light source:

      LED

      Luminous flux:

      210 lm

      Power:

      2,1 W

      Colour temperature:

      3000K

      CRI:

      CRI>90

      Light beam angle:

      38°

      Lighting efficiency:

      92%

      Dimming:

      DIM options

      Sealing:

      IP20
