Top 48V

TRACK LIGHTS

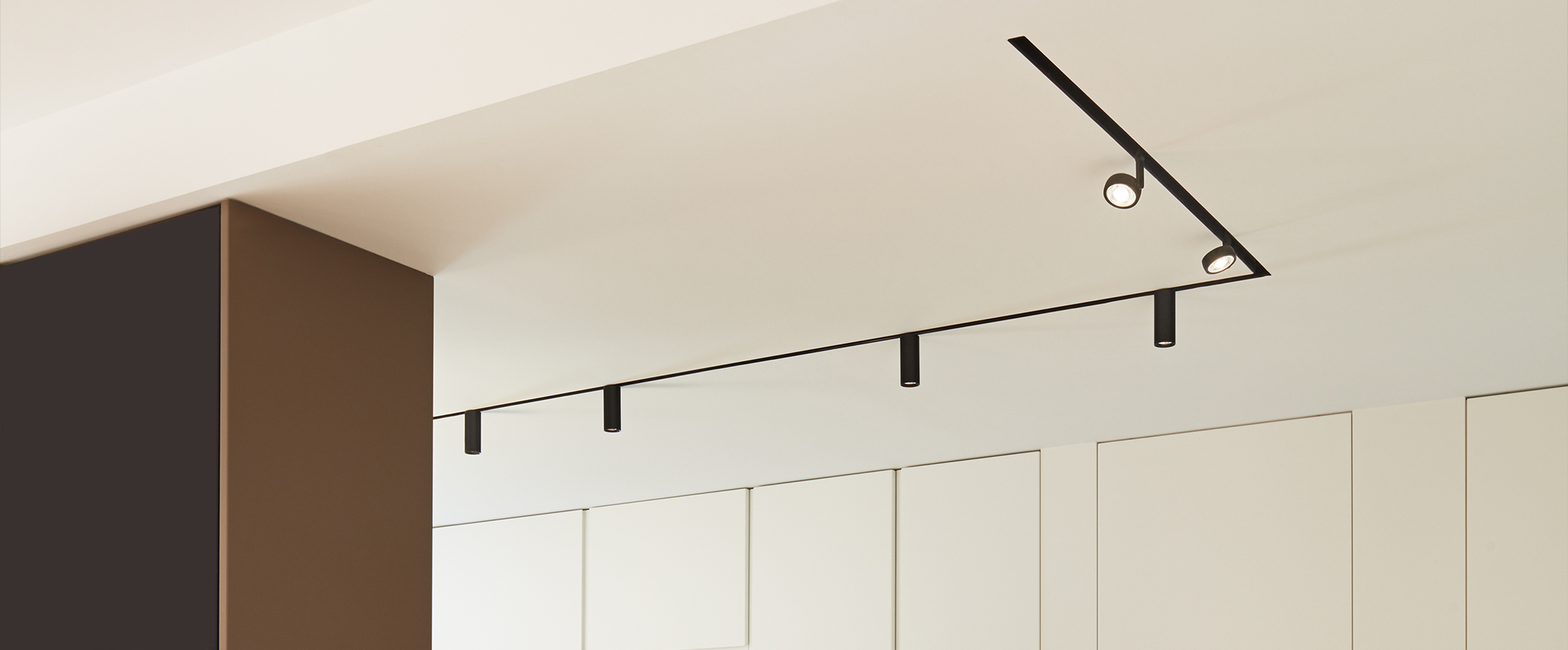

Top 48V is miniaturized luminary that serves as a downlight low voltage tracklight systems. Its reduced dimensions make Top the perfect candidate for projects where a discrete precense and a perfect integration are needed. It is a pure line and an architectural aesthetic design. Moreover, in terms of lighting performance, Top offers a conical distribution with three possible beam angles (flood, medium and spot).

Awards

Archiproducts Design Award Winner 2018
European Product Design Winner 2019

Top Mini 48V

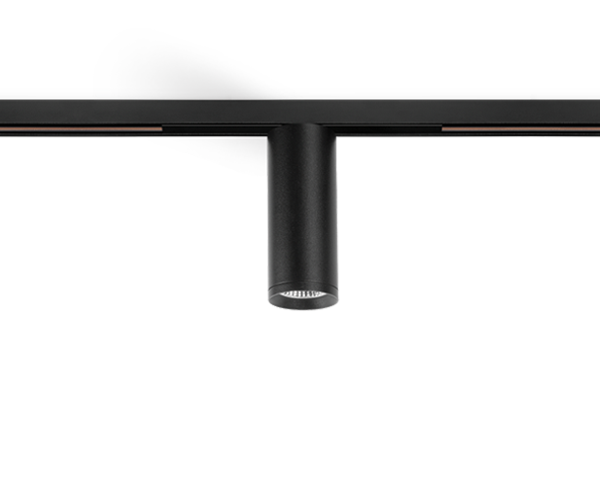

Top 48V Short

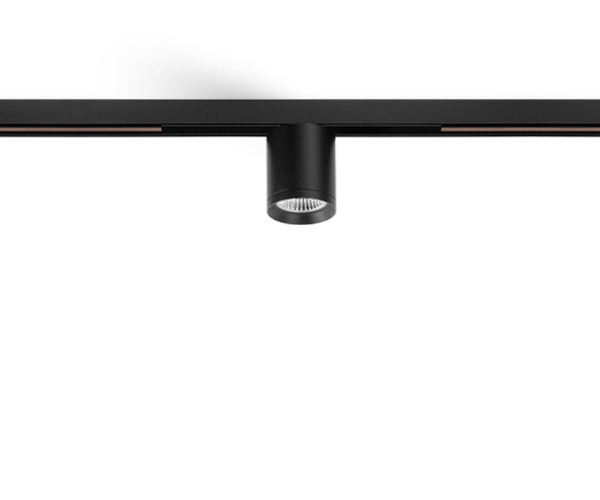

Top Mini 48V Short

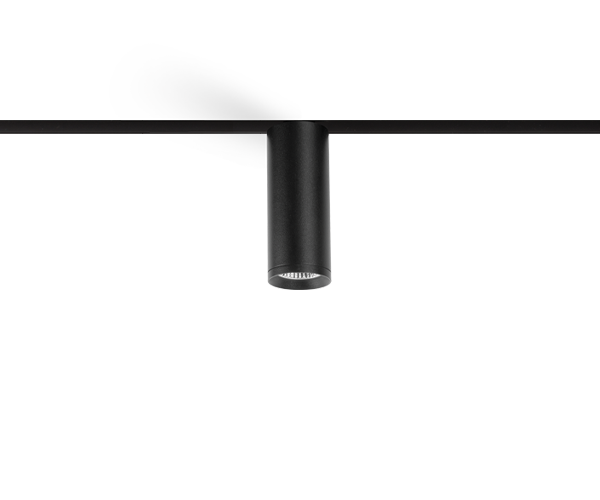

Top 48V

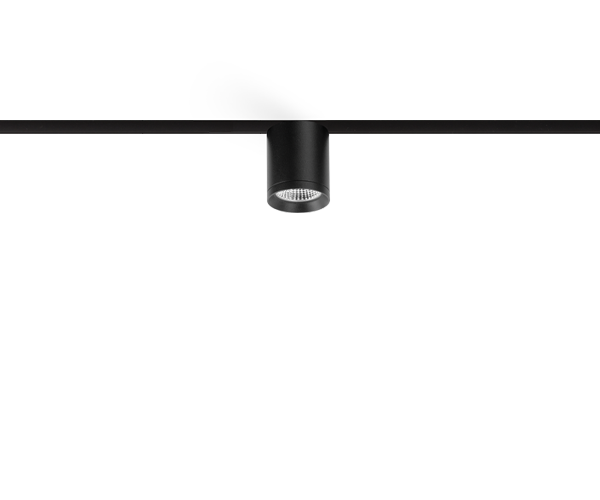

Top Mini 48V

Luminous flux

610 lm / 640 lm
Lighting efficiency

86% / 89% / 92%
Power

6,5 W
Dimming

No Dim, DALI
Color temperature

2700K / 3000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

20° / 30° / 56°

Custom configuration

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
TOP MINI 48V 20º 2700K NT

Reference:

A3400110NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 2700K NTW

Reference:

A3400110NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 2700K WT

Reference:

A3400110WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 2700K WTW

Reference:

A3400110WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 3000K NT

Reference:

A3400111NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 3000K NTW

Reference:

A3400111NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 3000K WT

Reference:

A3400111WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 20º 3000K WTW

Reference:

A3400111WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 2700K NT

Reference:

A3400120NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 2700K NTW

Reference:

A3400120NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 2700K WT

Reference:

A3400120WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 2700K WTW

Reference:

A3400120WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 3000K NT

Reference:

A3400121NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 3000K NTW

Reference:

A3400121NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 3000K WT

Reference:

A3400121WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 30º 3000K WTW

Reference:

A3400121WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 2700K NT

Reference:

A3400130NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 2700K NTW

Reference:

A3400130NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 2700K WT

Reference:

A3400130WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 2700K WTW

Reference:

A3400130WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 3000K NT

Reference:

A3400131NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 3000K NTW

Reference:

A3400131NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 3000K WT

Reference:

A3400131WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V 56º 3000K WTW

Reference:

A3400131WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

No Dim

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 2700K NT

Reference:

A3400210NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 2700K NTW

Reference:

A3400210NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 2700K WT

Reference:

A3400210WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 2700K WTW

Reference:

A3400210WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 3000K NT

Reference:

A3400211NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 3000K NTW

Reference:

A3400211NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 3000K WT

Reference:

A3400211WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 20º 3000K WTW

Reference:

A3400211WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 2700K NT

Reference:

A3400220NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 2700K NTW

Reference:

A3400220NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 2700K WT

Reference:

A3400220WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 2700K WTW

Reference:

A3400220WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 3000K NT

Reference:

A3400221NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 3000K NTW

Reference:

A3400221NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 3000K WT

Reference:

A3400221WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 30º 3000K WTW

Reference:

A3400221WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 2700K NT

Reference:

A3400230NT

Color:

Textured black

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 2700K NTW

Reference:

A3400230NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 2700K WT

Reference:

A3400230WT

Color:

Textured white

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 2700K WTW

Reference:

A3400230WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

610 lm

Power:

6,5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 3000K NT

Reference:

A3400231NT

Color:

Textured black

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 3000K NTW

Reference:

A3400231NTW

Color:

Textured black - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 3000K WT

Reference:

A3400231WT

Color:

Textured white

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20
TOP MINI 48V DIM DALI 56º 3000K WTW

Reference:

A3400231WTW

Color:

Textured white - White track

Light source:

LED

Luminous flux:

640 lm

Power:

6,5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

BEAM MIXER DIFFUSER

ANTI-GLARE HONEYCOMB LOUVER

TRACK 48V OPTIONS

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Top 48V

TRACK LIGHTS

Awards

Archiproducts Design Award Winner 2018

European Product Design Winner 2019

Top Mini 48V

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

iO

Zen Tube

Thor

Fit 65 1L

Related projects

Porcelanosa Showroom

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
