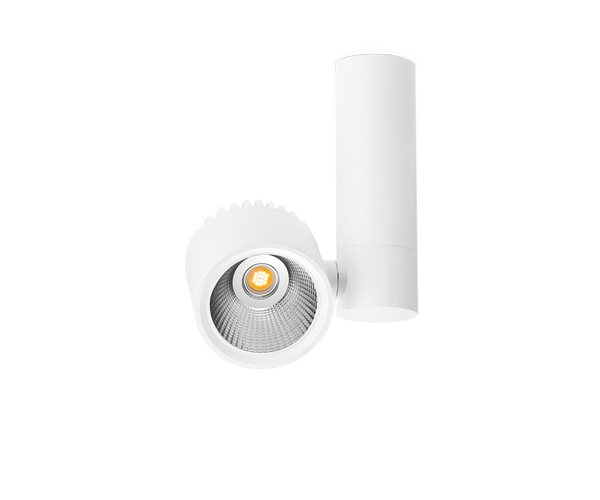

Zen Tube Surface

SURFACE

Zen Tube Surface’s cylindrical body turns this spotlight into a perfect luminary for surface applications. Make your space stand out with a design piece, full of quality values like its small mirror, its chrome details and attractive texturized finish.

Awards

Delta Award´13 Selection
If Product Design Award 2014
A´design Award Winner 2014 Bronze
Bid_14

Zen Tube Surface

Luminous flux

1640 lm / 1670 lm / 2220 lm / 2250 lm / 3190 lm / 3240 lm
Lighting efficiency

90%
Power

12 W / 17 W / 23 W
Dimming

No Dim
Color temperature

3000K / 4000K
Sealing

IP20
Chromatic stability

MacAdam Step 2
Light beam angle

16° / 24° / 42°

Instructions BIM Brochure

Luminous Flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Model

Ref.

Color

Source

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

Dimming

Sealing
ZEN TUBE SURFACE 1 SPOT 16º 3000K NT

Reference:

A2841111NT

Color:

Textured black

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 SPOT 16º 3000K WT

Reference:

A2841111WT

Color:

Textured white

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 SPOT 16º 4000K NT

Reference:

A2841112NT

Color:

Textured black

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 SPOT 16º 4000K WT

Reference:

A2841112WT

Color:

Textured white

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 MEDIUM 24º 3000K NT

Reference:

A2841121NT

Color:

Textured black

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 MEDIUM 24º 3000K WT

Reference:

A2841121WT

Color:

Textured white

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 MEDIUM 24º 4000K NT

Reference:

A2841122NT

Color:

Textured black

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 MEDIUM 24º 4000K WT

Reference:

A2841122WT

Color:

Textured white

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 FLOOD 42º 3000K NT

Reference:

A2841131NT

Color:

Textured black

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 FLOOD 42º 3000K WT

Reference:

A2841131WT

Color:

Textured white

Light source:

LED

Luminous flux:

1640 lm

Power:

12 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 FLOOD 42º 4000K NT

Reference:

A2841132NT

Color:

Textured black

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 1 FLOOD 42º 4000K WT

Reference:

A2841132WT

Color:

Textured white

Light source:

LED

Luminous flux:

1670 lm

Power:

12 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 SPOT 16º 3000K NT

Reference:

A2841211NT

Color:

Textured black

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 SPOT 16º 3000K WT

Reference:

A2841211WT

Color:

Textured white

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 SPOT 16º 4000K NT

Reference:

A2841212NT

Color:

Textured black

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 SPOT 16º 4000K WT

Reference:

A2841212WT

Color:

Textured white

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 MEDIUM 24º 3000K NT

Reference:

A2841221NT

Color:

Textured black

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 MEDIUM 24º 3000K WT

Reference:

A2841221WT

Color:

Textured white

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 MEDIUM 24º 4000K NT

Reference:

A2841222NT

Color:

Textured black

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 MEDIUM 24º 4000K WT

Reference:

A2841222WT

Color:

Textured white

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 FLOOD 42º 3000K NT

Reference:

A2841231NT

Color:

Textured black

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 FLOOD 42º 3000K WT

Reference:

A2841231WT

Color:

Textured white

Light source:

LED

Luminous flux:

2220 lm

Power:

17 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 FLOOD 42º 4000K NT

Reference:

A2841232NT

Color:

Textured black

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 2 FLOOD 42º 4000K WT

Reference:

A2841232WT

Color:

Textured white

Light source:

LED

Luminous flux:

2250 lm

Power:

17 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 SPOT 16º 3000K NT

Reference:

A2841311NT

Color:

Textured black

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 SPOT 16º 3000K WT

Reference:

A2841311WT

Color:

Textured white

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 SPOT 16º 4000K NT

Reference:

A2841312NT

Color:

Textured black

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 SPOT 16º 4000K WT

Reference:

A2841312WT

Color:

Textured white

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

16°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 MEDIUM 24º 3000K NT

Reference:

A2841321NT

Color:

Textured black

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 MEDIUM 24º 3000K WT

Reference:

A2841321WT

Color:

Textured white

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 MEDIUM 24º 4000K NT

Reference:

A2841322NT

Color:

Textured black

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 MEDIUM 24º 4000K WT

Reference:

A2841322WT

Color:

Textured white

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 FLOOD 42º 3000K NT

Reference:

A2841331NT

Color:

Textured black

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 FLOOD 42º 3000K WT

Reference:

A2841331WT

Color:

Textured white

Light source:

LED

Luminous flux:

3190 lm

Power:

23 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 FLOOD 42º 4000K NT

Reference:

A2841332NT

Color:

Textured black

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20
ZEN TUBE SURFACE 3 FLOOD 42º 4000K WT

Reference:

A2841332WT

Color:

Textured white

Light source:

LED

Luminous flux:

3240 lm

Power:

23 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

90%

Dimming:

No Dim

Sealing:

IP20

Accessories

HIGH CHROMATIC LED

ANTI-GLARE HONEYCOMB LOUVER

ELLIPTICAL REFRACTOR

BEAM MIXER DIFFUSER

Are you interested in this product? Contact us

Name*

Surnames*

Email*

Phone*

Country*

City*

Company*

Profession*

Specify your profession*

Your message

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

This field is for validation purposes and should be left unchanged.

Name*

Surnames*

Email*

Phone*

Country*

City*

Your message*

I have read and agree to the privacy policy. *

I want to subscribe to the newsletter.

Comments

This field is for validation purposes and should be left unchanged.

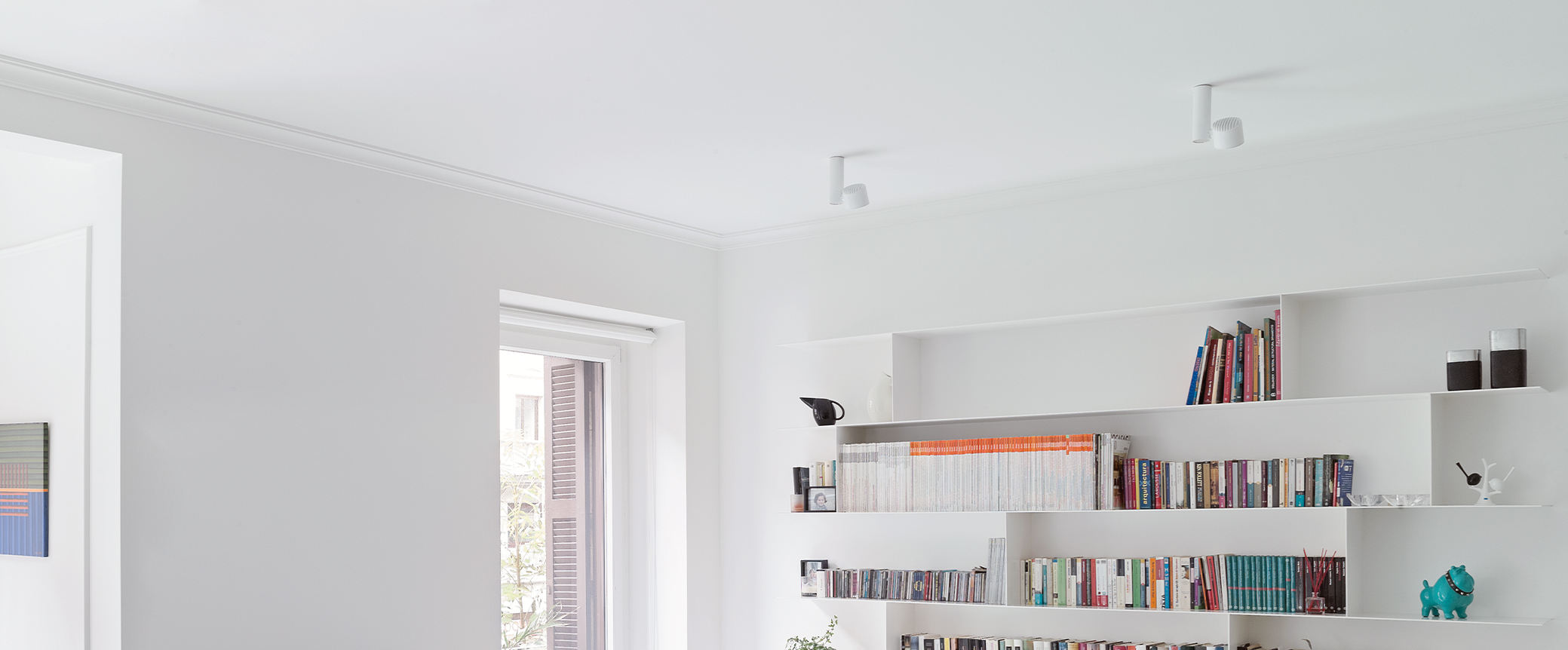

Zen Tube Surface

SURFACE

Awards

Delta Award´13 Selection

If Product Design Award 2014

A´design Award Winner 2014 Bronze

Bid_14

Zen Tube Surface

Luminous Flux

Power

Colour temperature

Lighting efficiency

CRI

Light beam angle

Dimming

Sealing

Cord length

Distance of suspension

Base Finishing

Color

Accessories

Are you interested in this product? Contact us

Related products

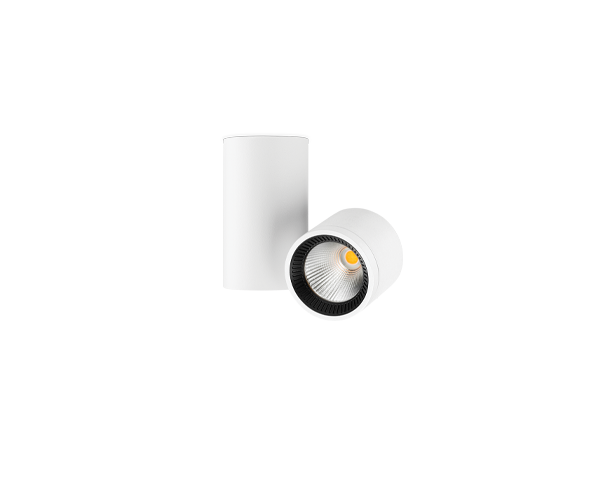

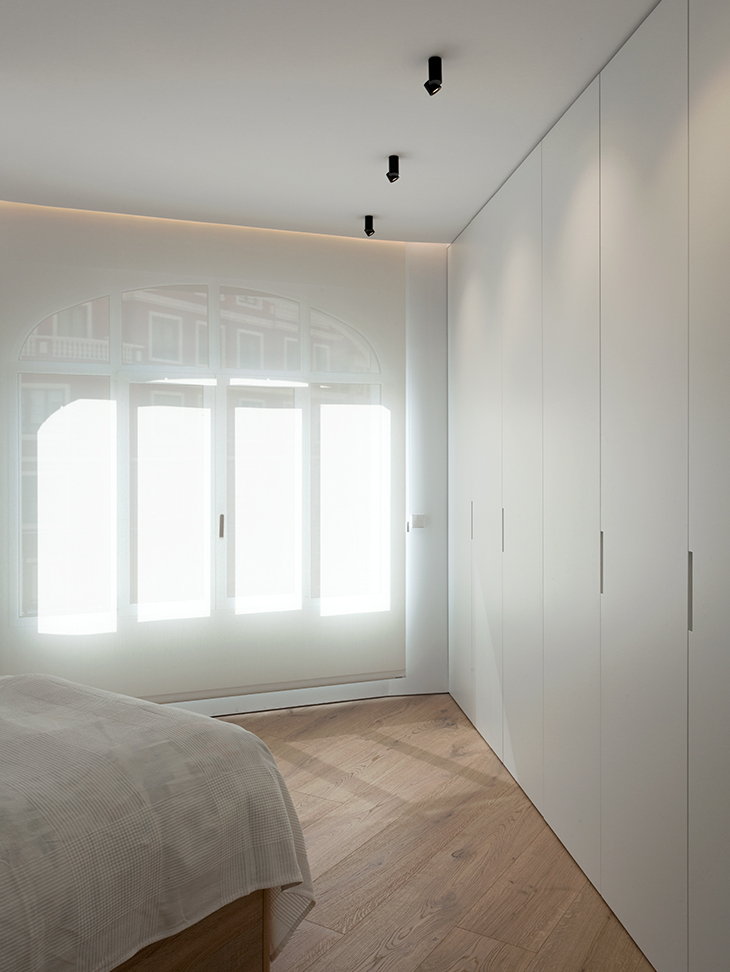

iO Surface

Orbital Surface

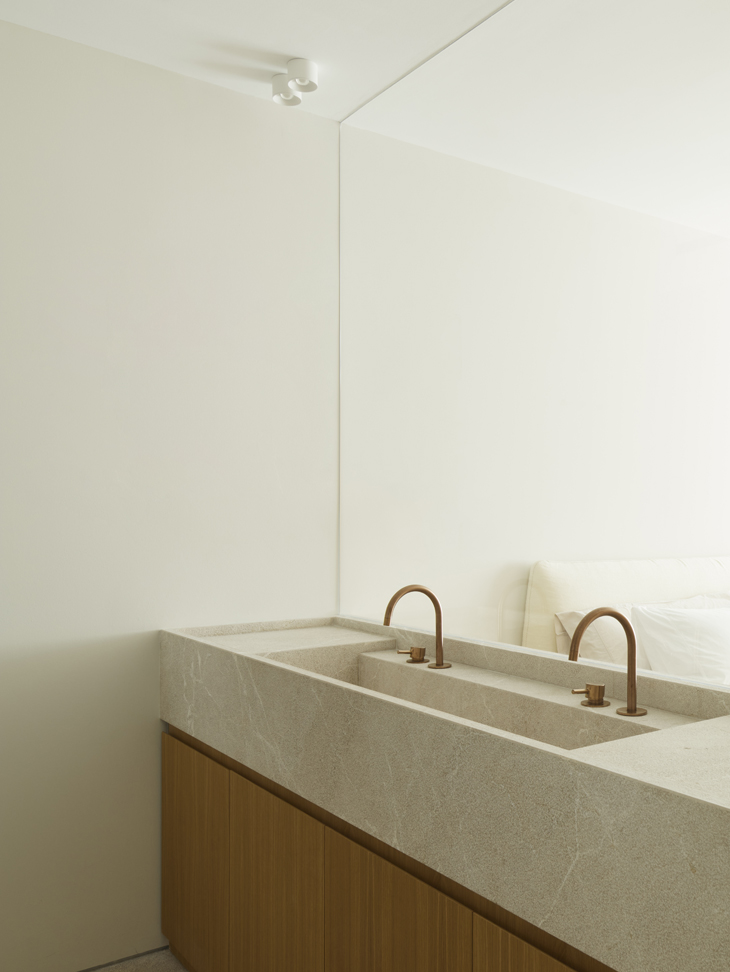

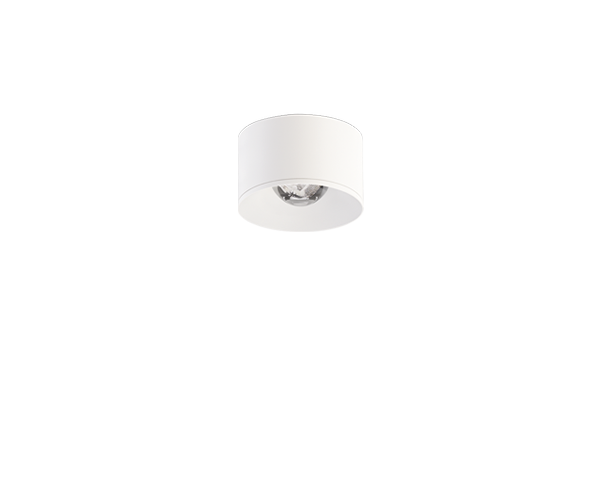

Puck

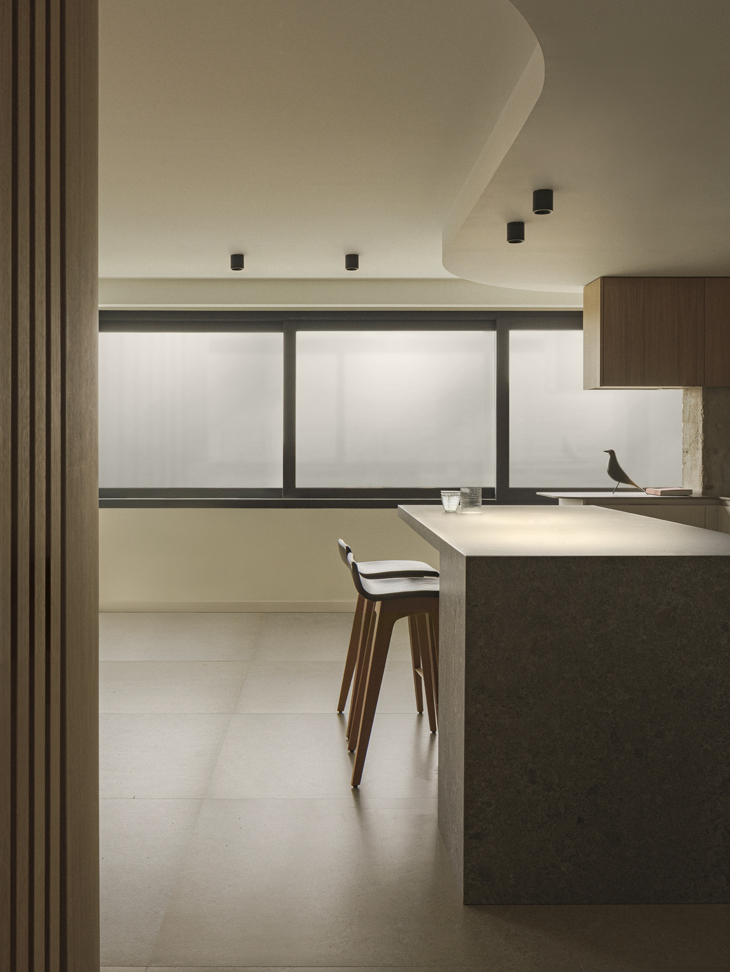

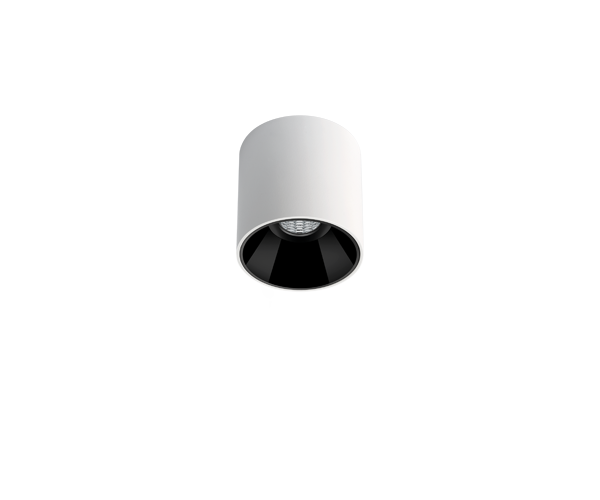

Shot Light Surface

Related projects

Carmencita Film Lab

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

Downloads
